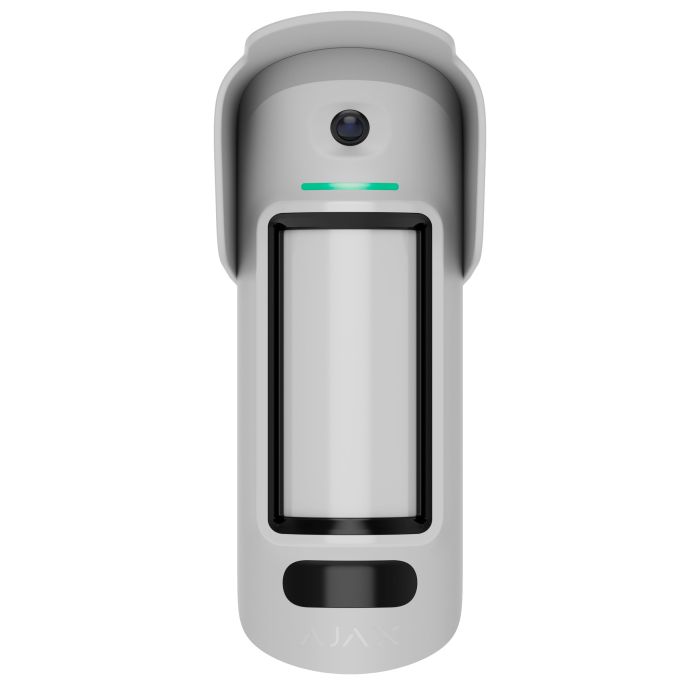

Outdoor curtain-type motion detector with photo verification Ajax CurtainCam Outdoor HighMount PhOD, Jeweller, wireless, white, 142717.359.WH1
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Features

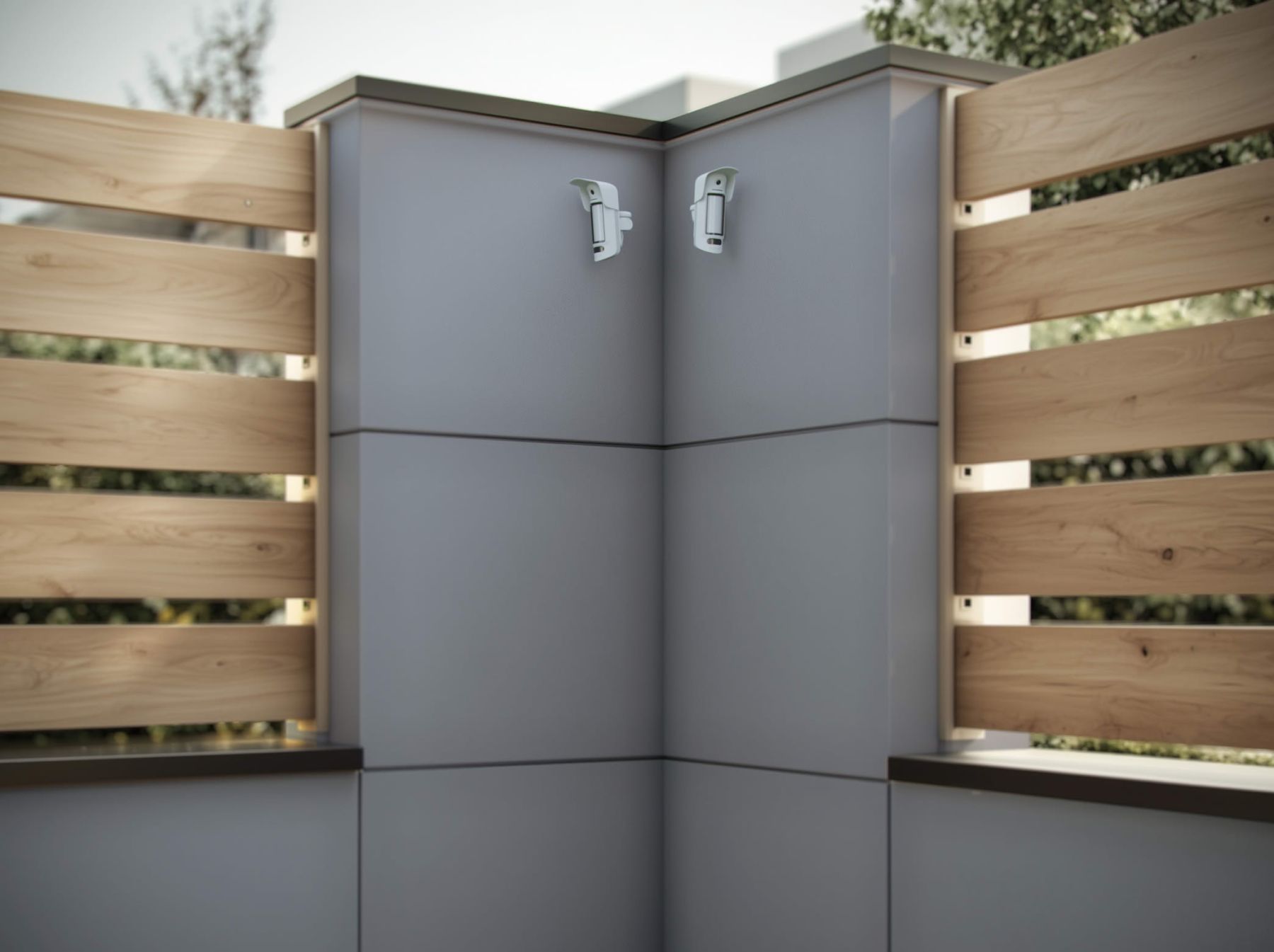

Wireless curtain-type motion detector designed for perimeter and narrow-area monitoring. The device covers doors, windows, gates, fences, and passages without unnecessary space coverage. Suitable for both indoor and outdoor installation.
The detection system combines two PIR sensors with a K-band microwave sensor. It first analyzes thermal patterns and then confirms movement with radio frequency scanning, improving accuracy.
SmartDetect algorithm with temperature compensation ensures stable performance under changing environmental conditions. The detector distinguishes real movement from interference.

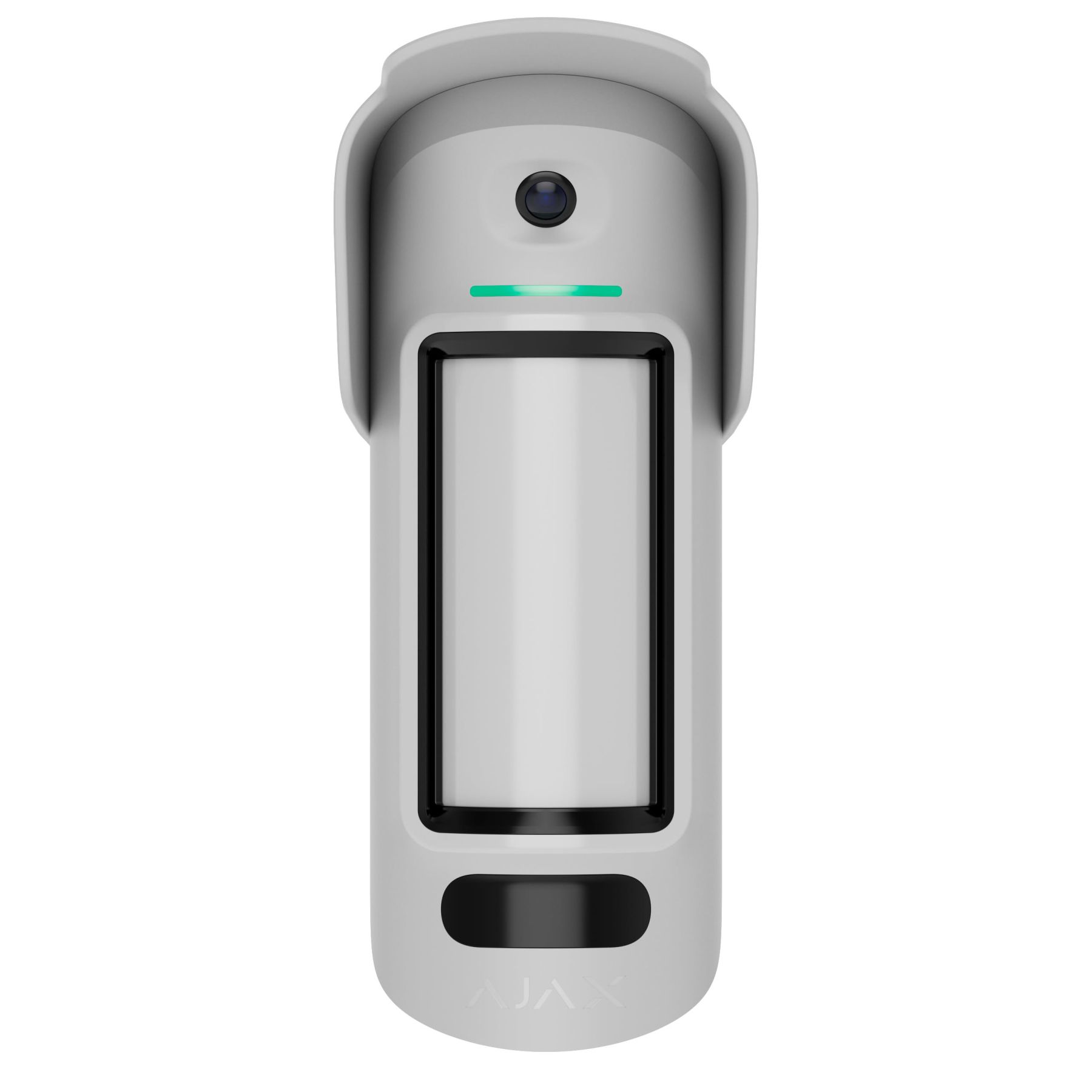

The built-in camera provides photo verification. Images can be captured on alarm, on demand, by schedule, or when the security mode changes. Infrared illumination enables shooting in low-light conditions.

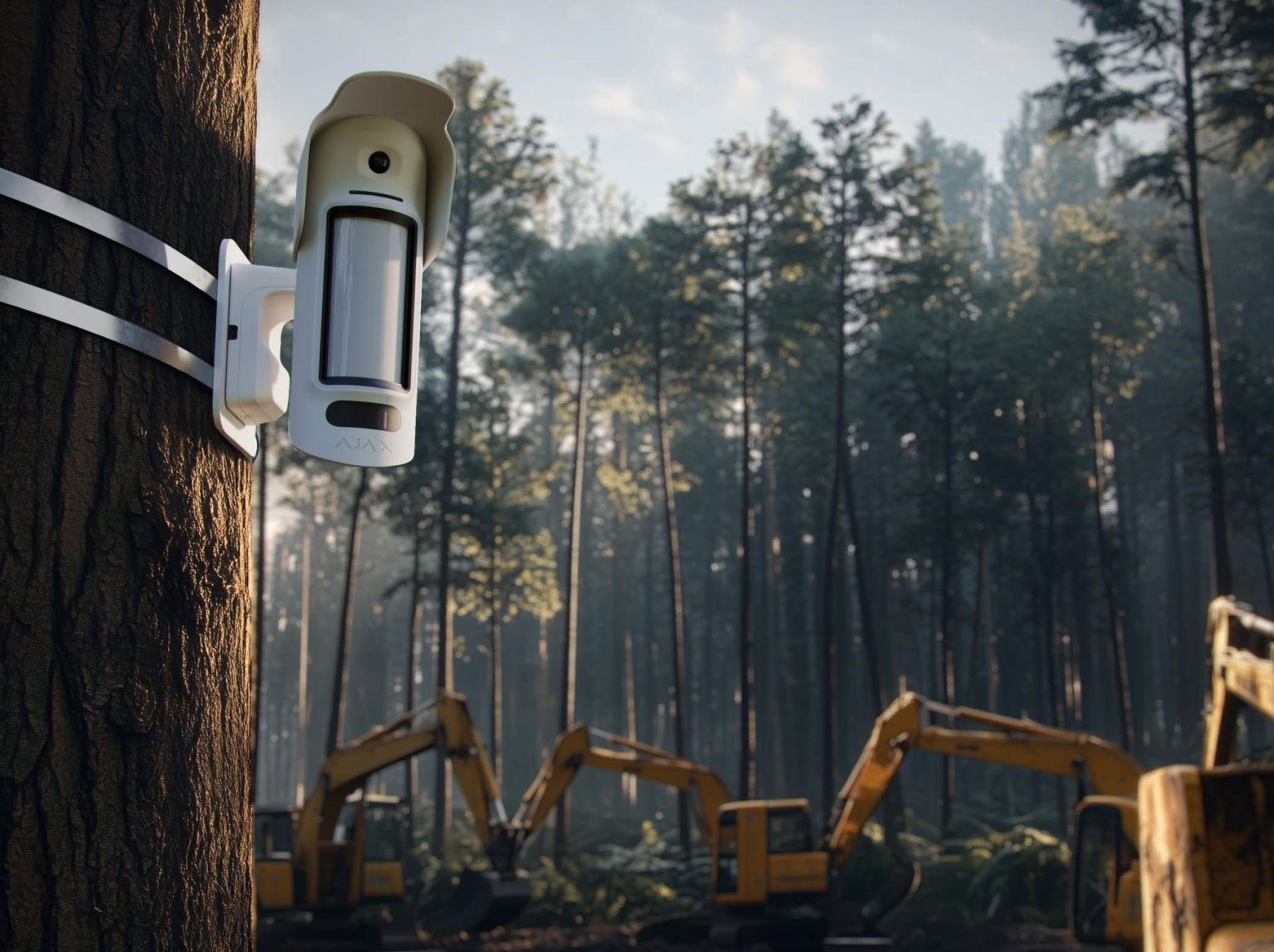

The device includes anti-sabotage protection. Anti-masking, tamper, and magnetometer detect interference attempts. The IP55-rated enclosure supports operation in outdoor environments.
Technologies (used)
- SmartDetect motion processing
- Dual detection PIR and microwave sensor
- Temperature compensation
- Photo verification with IR illumination
- Jeweller and Wings communication protocols
Technical specifications
- Type wireless curtain motion detector with camera
- Detection range up to 15 m
- Sensors 2 PIR and 1 microwave
- Camera viewing angle 120° horizontal, 92° vertical
- Photo resolution 320 × 240 or 640 × 480
- Communication range up to 1700 m
- Power supply 6 × CR123A
- Battery life up to 3 years
- External power 12–24 V
- Protection class IP55
- Operating temperature −25 °C to +60 °C
Who it's for
- Private property owners

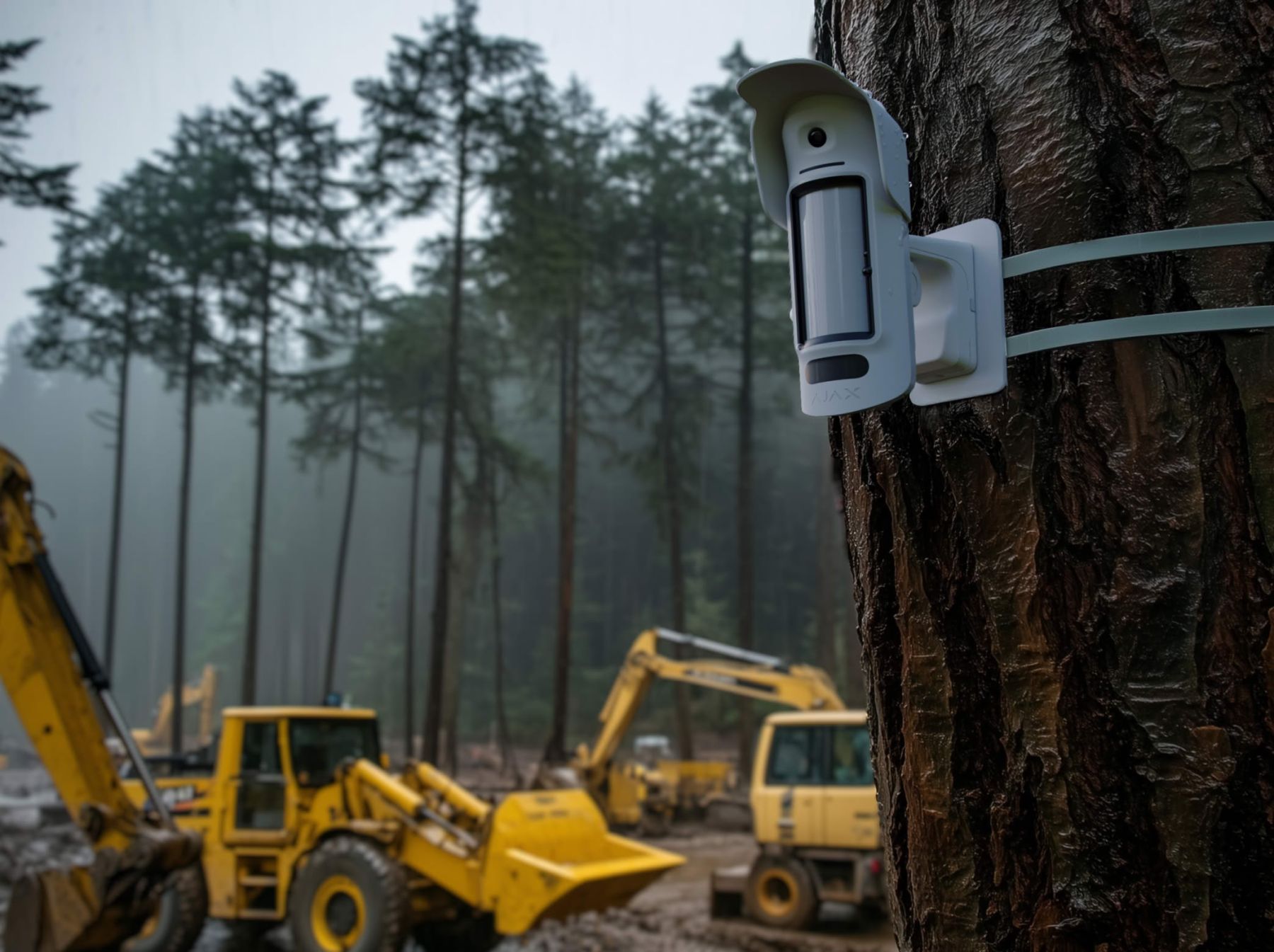

- Perimeter security installations
- Warehouses and commercial sites
- Narrow passage monitoring
Conclusion
The device combines accurate motion detection, photo verification, and environmental resistance. Suitable for reliable perimeter monitoring across different installation scenarios.
-
Type:PIR sensor
-
Application:external use, against break-in
-
Radio protocol:Jeweller, Wings
-
Motion detection range:15
-
Power supply:6 x CR123A (3 В), 12–24 В (зовнішнє живлення)
-
Sensitive element:microwave sensor, Infrared sensor
-
Battery life:up to 3 years old
-
Operating humidity:up to 95%
-
Operating temperature:−25 - +60
-
Additional information:wireless connection, substitution protection, anti-hacking tamper, sabotage protection, infrared light for shooting in the dark, magnetometer, anti-masking, 3 levels of sensitivity, adjustable in Ajax, SmartDetect, захист від глушіння, функція PhOD (фото по запиту), remote setup via app, photo verification of events, стандарти EN 50131 Grade 2, PD 6662:2017
-
Recommended mounting height m:2
-
Colour:white
-
Dimensions:234 x 98 x 137
-
Compatibility:Ajax Hub, Ajax Hub Plus, Ajax Hub 2, Ajax ReX, Ajax Hub 2 Plus, Hub Hybrid, Ajax ReX 2, Ajax Hub BP
-
Radio frequency:868,7−869,2 MHz, 866,0 – 866,5 МHz, 905,0 – 926,5 МHz, 915,85 – 926,5 МHz, 921,0 – 922,0 МHz, 868−868.6 MHz
-
Sensor type:Infrared, мікрохвильовий K-діапазону
-

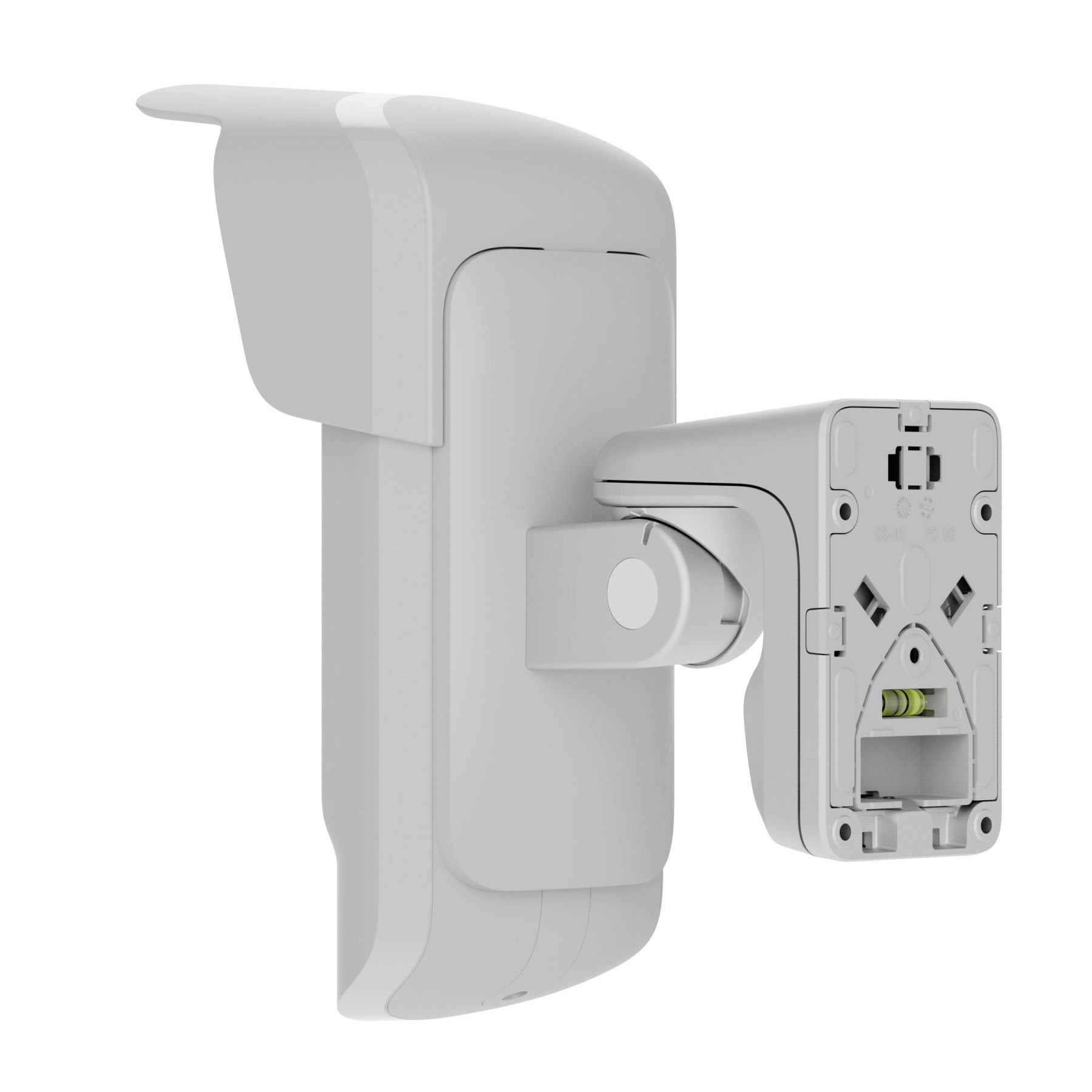

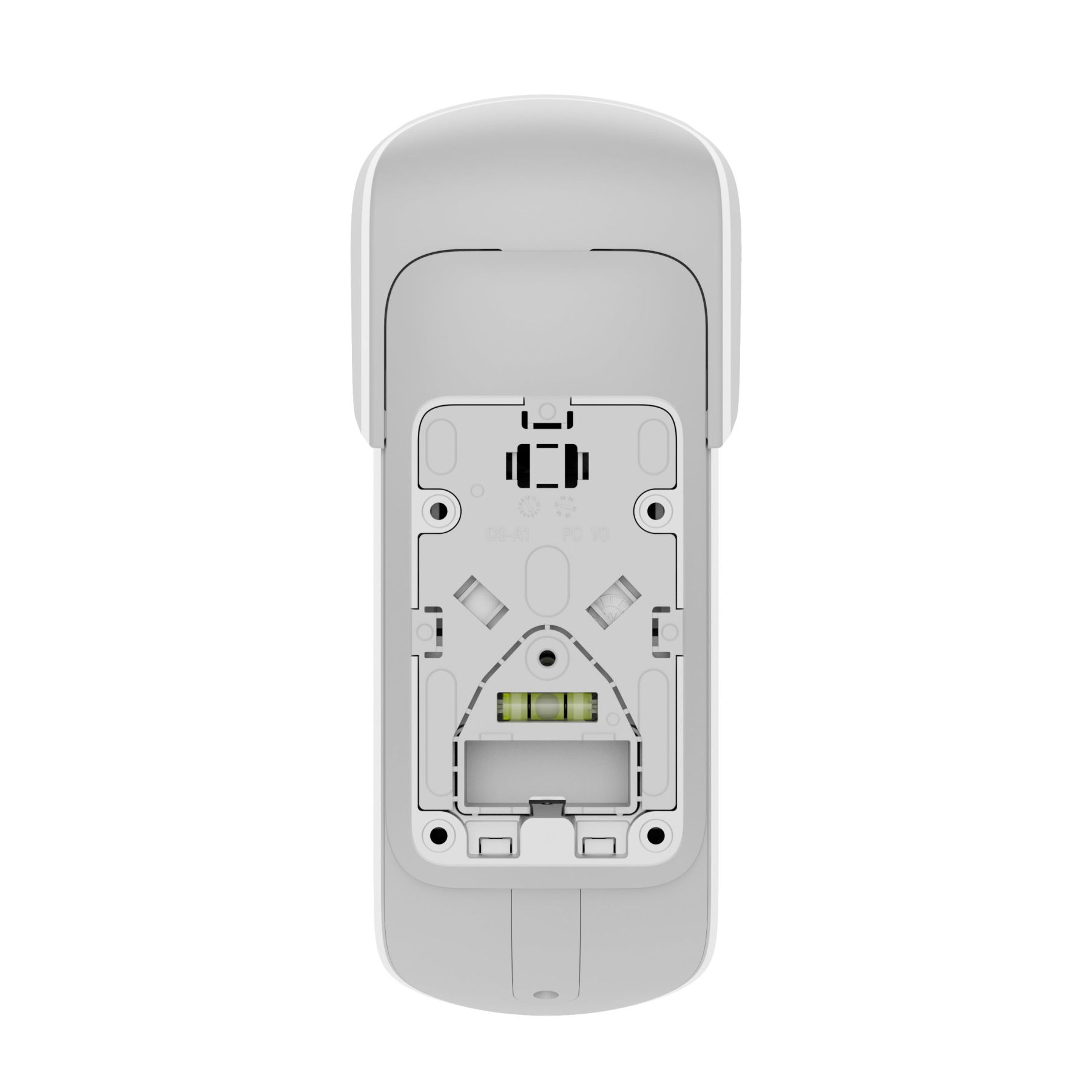

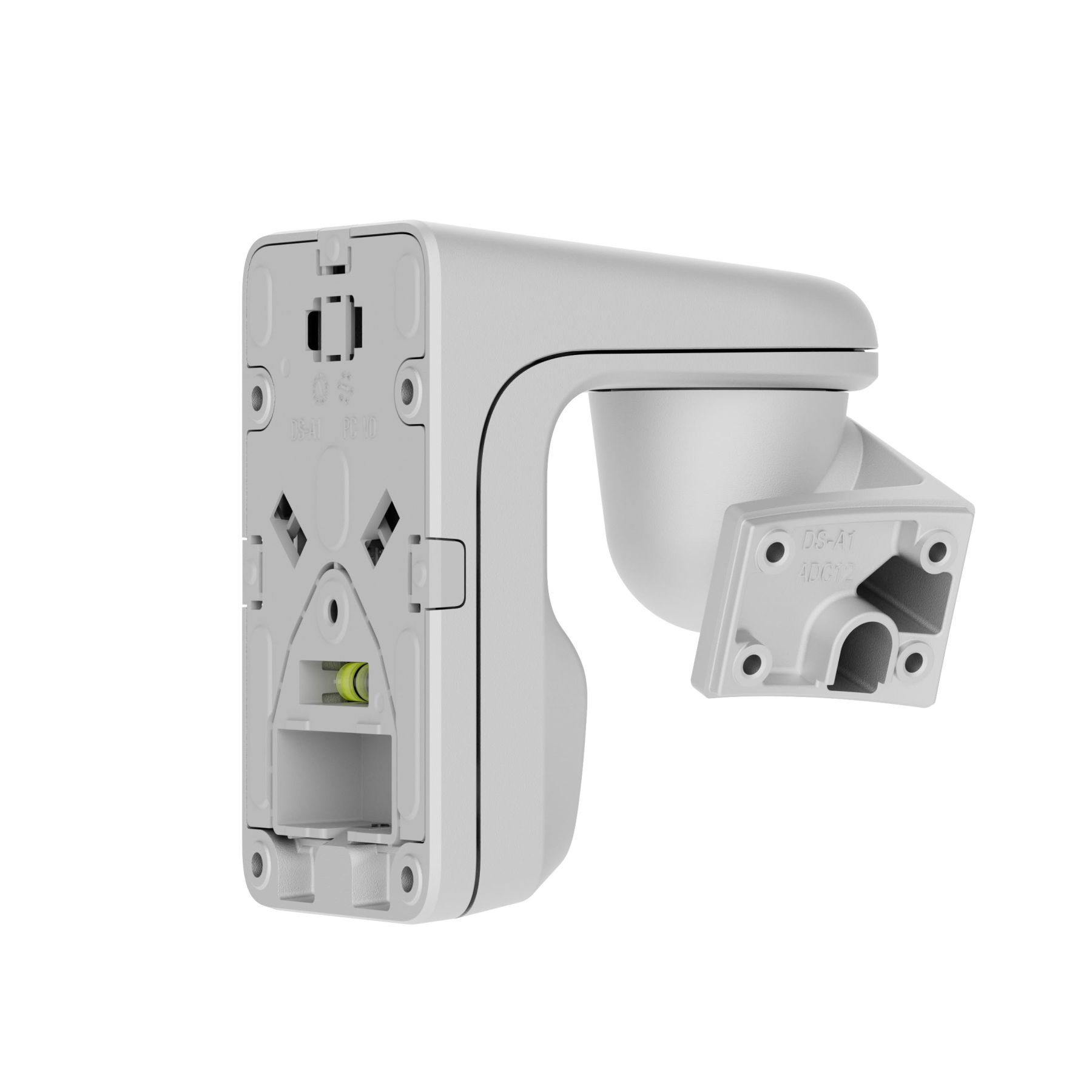

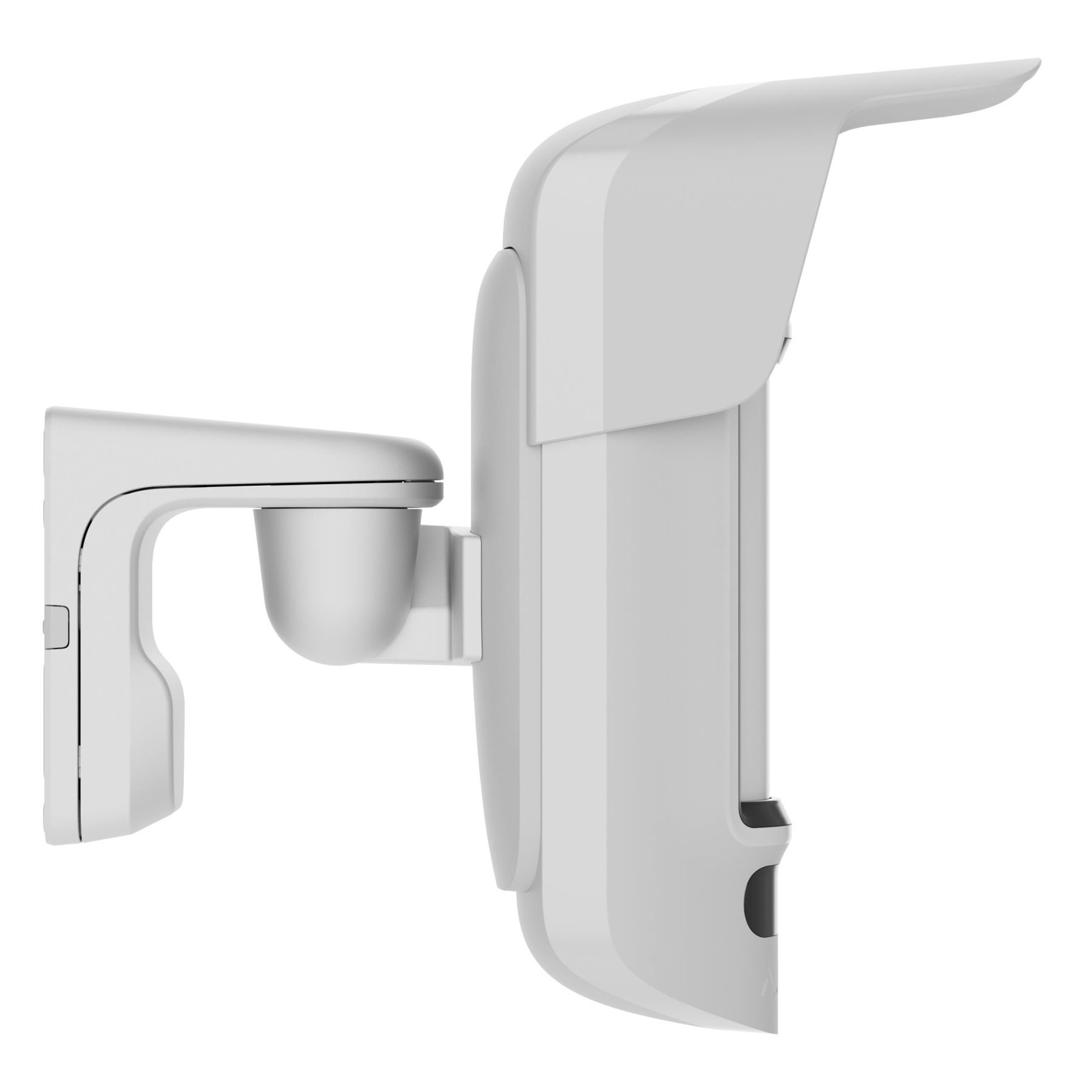

Type of installation:wall mount, SmartBracket (tool-free)
-
Weight g:1109
-
Body material:plastic
-
Number of photos in case of alarm:up to 5 with one alarm
-
Package Contents:SmartBracket mounting panel, поворотне кріплення, елемент живлення CR123A (6 шт.)
-
Vertical angle of motion detection:73 – 78°
-
Category:smart home sensors
-
Сountry of manufacture:Ukraine
-
Device type:бездротовий датчик руху типу «штора» з камерою
