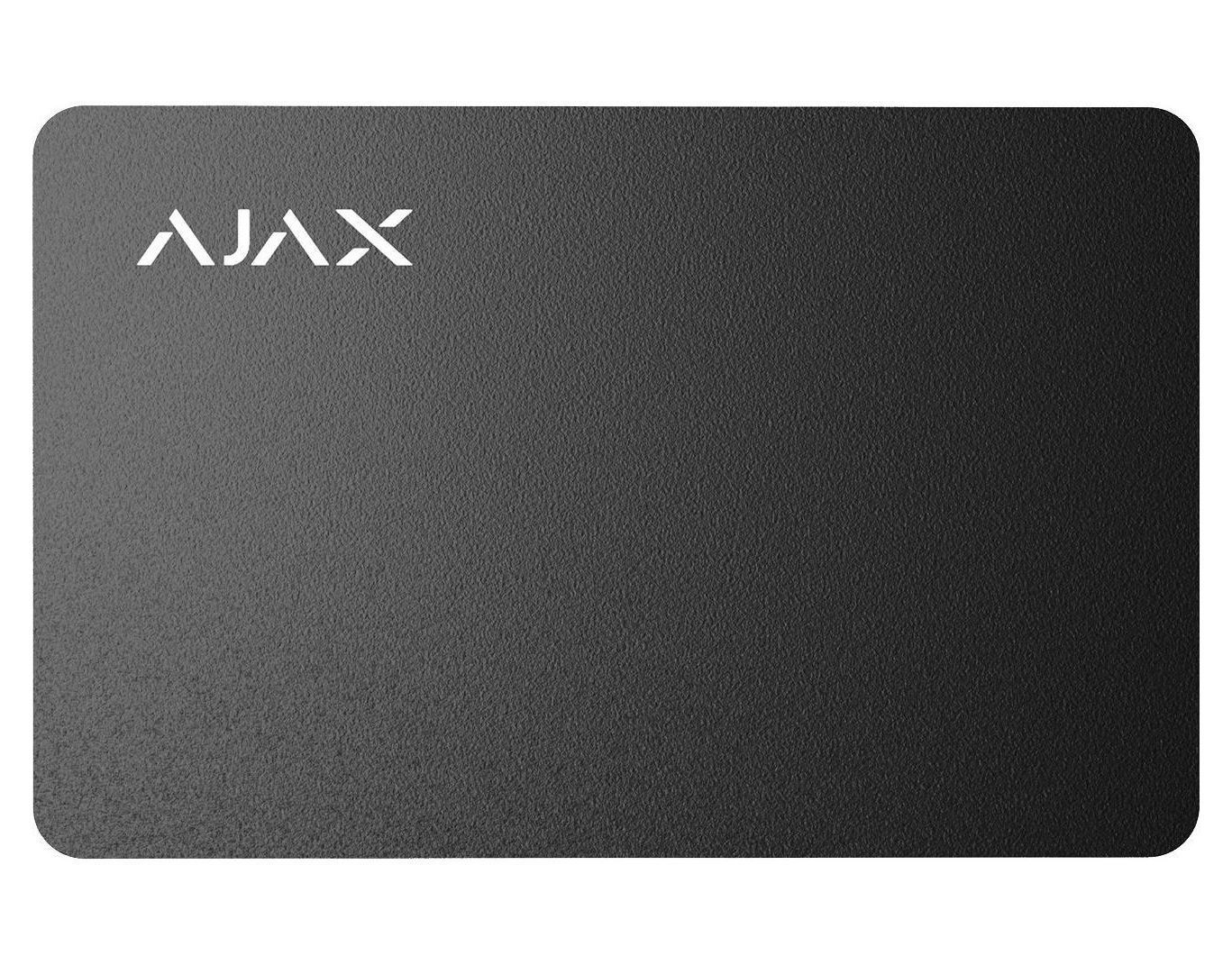

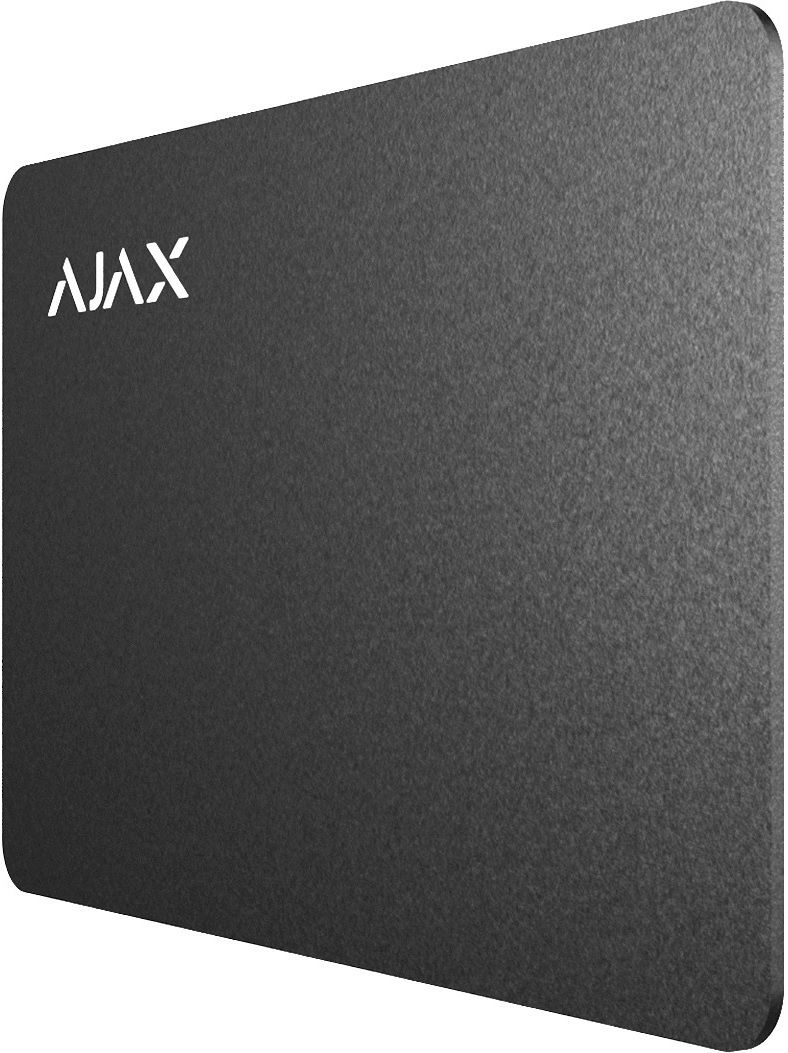

Ajax Pass card 1pc, jeweller, contactless, black

Features

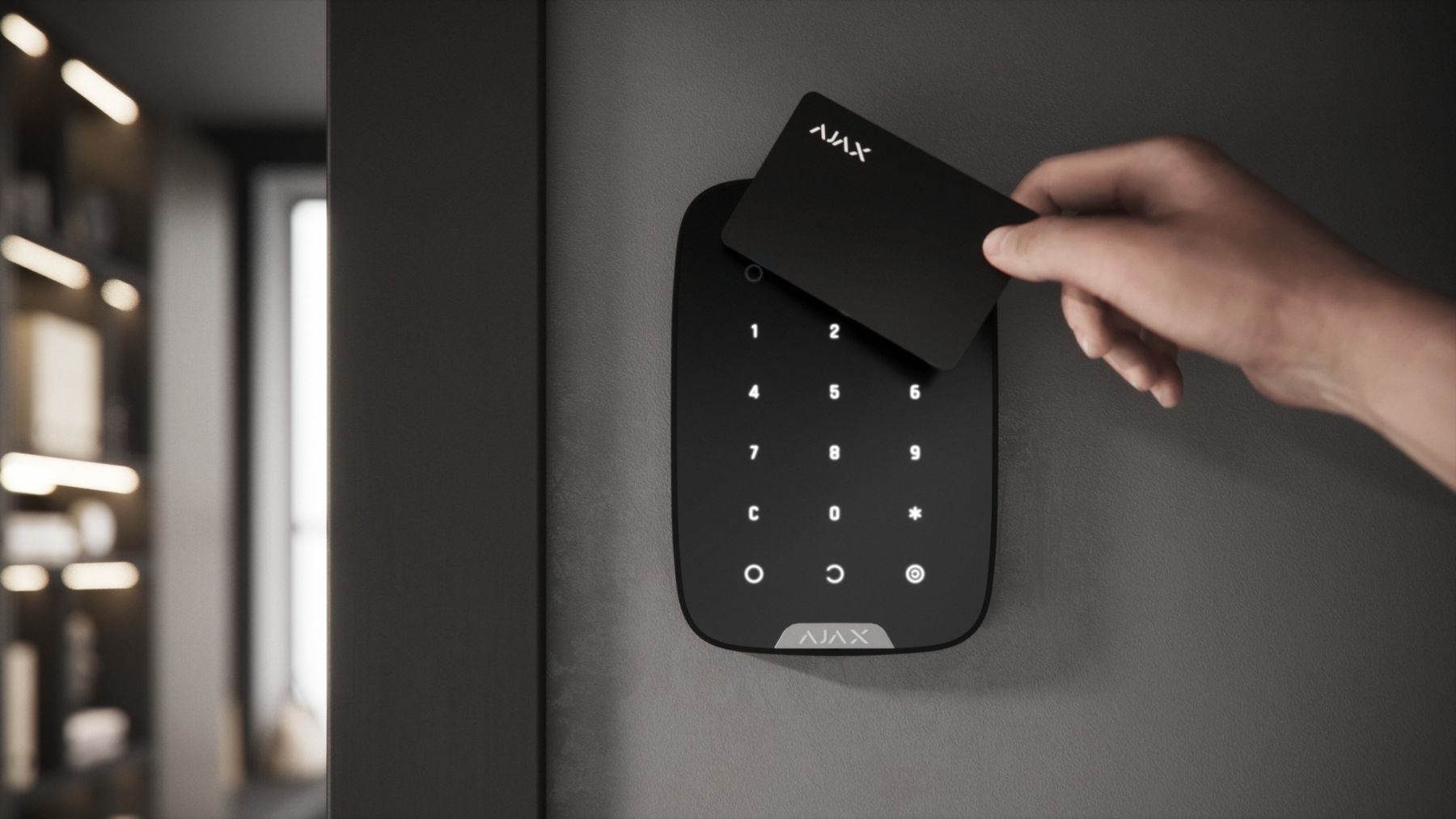

The Ajax Pass card is designed for contactless control of security modes in Ajax systems without entering a code or opening the mobile app. Bringing the card to a compatible keypad instantly changes the system state — arming or disarming the premises, which is particularly convenient for daily use. DESFire® technology protects data through 128-bit AES encryption and hardware mechanisms, making card cloning virtually impossible.

One card can be linked to up to 13 different hubs simultaneously, allowing its use across multiple sites — office, home, warehouse, or other locations. No battery is required, eliminating the need for replacements, while the 0.8 mm thickness and standard 86 × 54 mm size make it easy to carry in a wallet or on a keychain. The operating temperature range from -10 °C to +40 °C supports use in various environmental conditions.

The card is compatible only with Ajax keypads that support DESFire® and operates at 13.56 MHz using the ISO 14443-A standard. It requires no additional setup after hub binding and functions independently of the hub’s internet connection. The black body color provides a restrained and professional appearance suitable for most modern interiors.

Technologies (used)

• DESFire® with Triple DES support and hardware AES-128 encryption.
• Protection against cloning and data copying.
• Contactless communication standard ISO 14443-A (13.56 MHz).
• Simultaneous operation with up to 13 Ajax hubs.
• No power source required (passive card).

Technical specifications

• Device type: contactless card for security mode control.
• Communication technology: DESFire®.
• Communication standard: ISO 14443-A (13.56 MHz).
• Encryption: Triple DES + AES-128 (hardware).
• Maximum number of hubs: up to 13 simultaneously.
• Power supply: not required.
• Dimensions: 86 × 54 × 0.8 mm.
• Weight: 6 g.
• Operating temperature: -10 °C to +40 °C.
• Permissible humidity: up to 75 %.
• Color: black.

Who it's for

• Ajax system users who frequently change security modes and prefer to avoid code entry.
• Owners of multiple protected sites needing a single key for different hubs.
• People seeking a passive and durable control method without batteries or apps.
• Companies and private users prioritizing high cryptographic data protection.

Conclusion

Ajax Pass provides a reliable and fast contactless method for managing security with a high level of data protection. It suits everyday use in Ajax systems where convenience without compromising security is essential.
