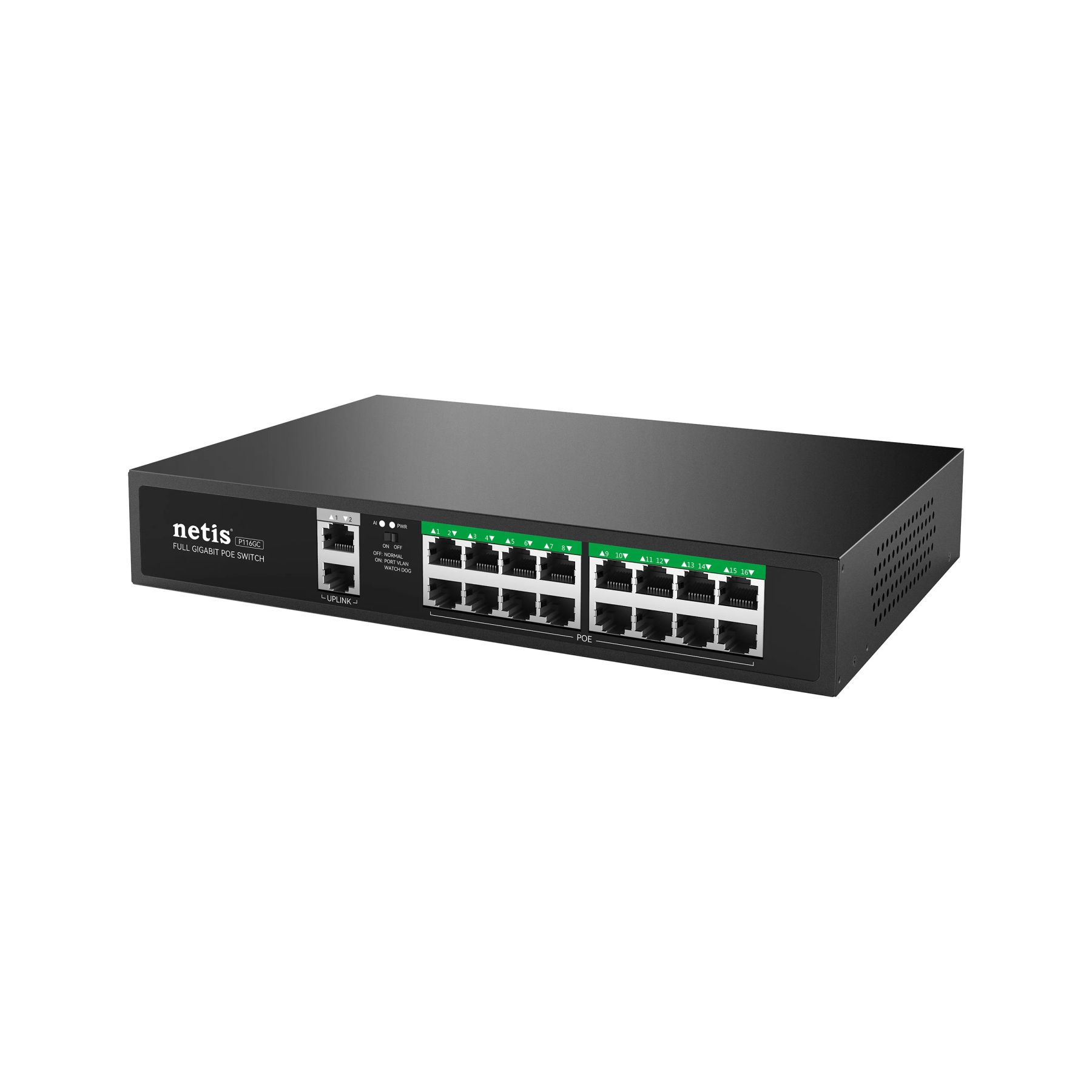

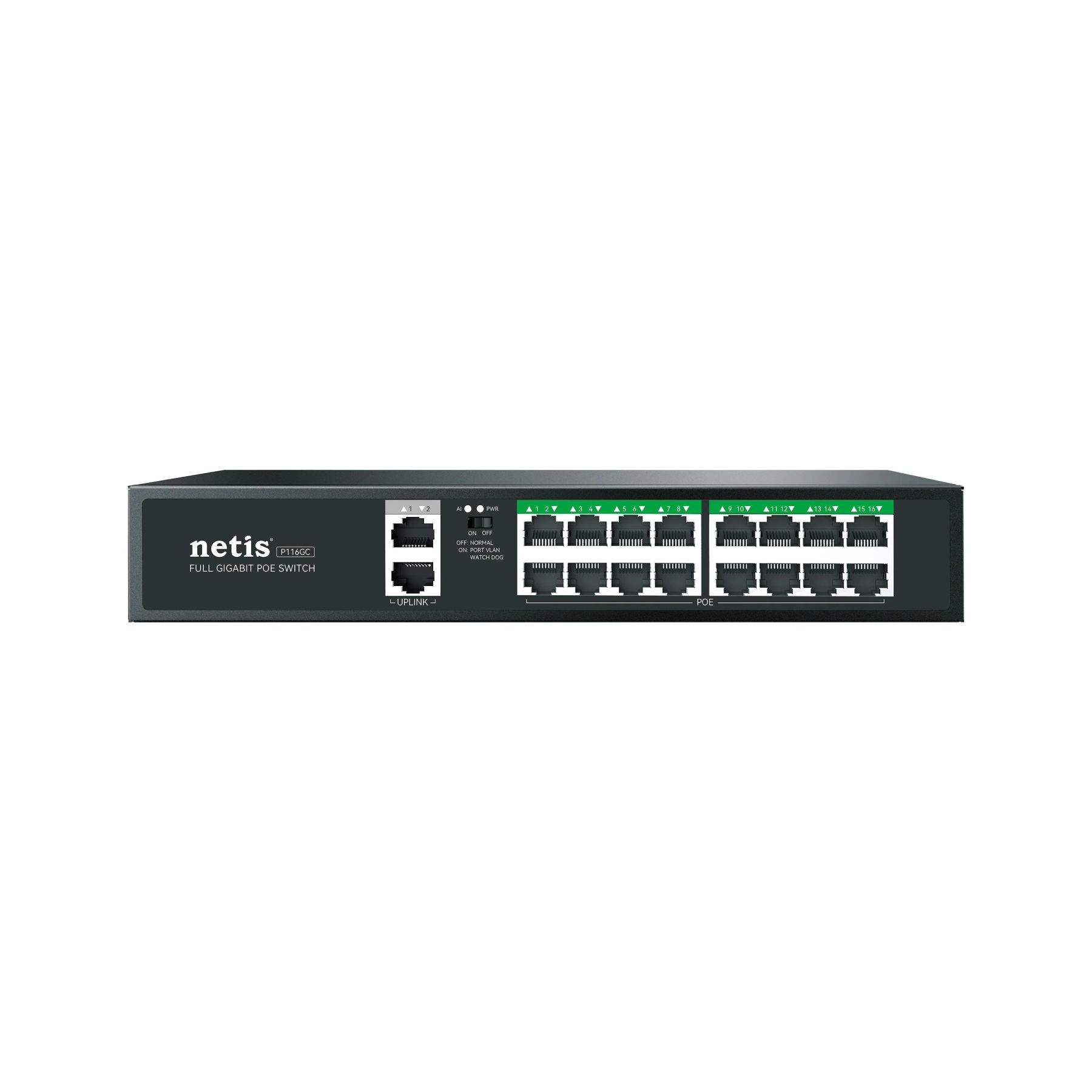

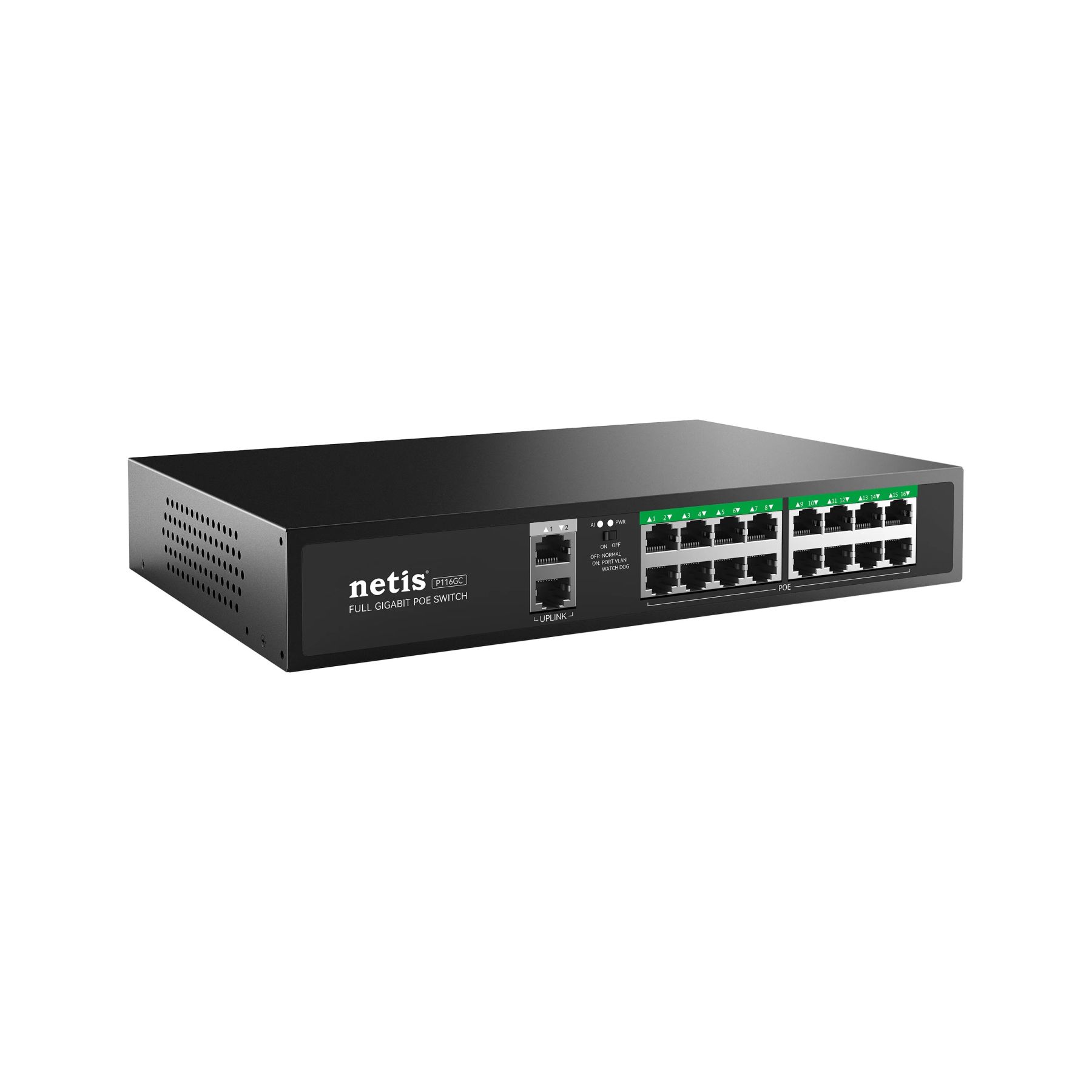

Switch 18xGE (16xPoE, 2xUplink), 240W, Unmanaged Netis P116GC

Features

The Netis P116GC is designed for wired networks that require centralised power delivery to connected devices. Sixteen 10/100/1000 Mbps ports carry network data and PoE+ power, while two separate Gigabit uplink ports connect the switch to a router, server or another switch.

IEEE 802.3af and IEEE 802.3at support provides power for compatible PoE devices. The integrated power supply delivers a total PoE budget of 240 W for access points, IP cameras, IP phones and other network equipment.

The switch supports Normal Mode and Port VLAN with Watch Dog Mode. Port VLAN isolates connected endpoints from each other, while the Watch Dog function monitors PoE connections and helps restore the operation of an unresponsive device.

All ports support automatic speed negotiation and Auto MDI/MDIX. IEEE 802.3x flow control is used for full-duplex connections, while backpressure flow control supports half-duplex operation.

A switching capacity of 36 Gbps allows traffic to be forwarded between ports at wire speed. The 2K MAC address table supports automatic address learning and ageing without manual configuration.

Technologies (used)

• Gigabit Ethernet
• PoE+
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x Flow Control
• Auto MDI/MDIX
• Port VLAN
• Watch Dog
• Store-and-forward
• Automatic MAC address learning

Technical specifications

• Device type: unmanaged PoE switch
• 10/100/1000 Mbps PoE ports: 16
• 10/100/1000 Mbps uplink ports: 2
• Total Gigabit Ethernet ports: 18
• PoE standards: IEEE 802.3af, IEEE 802.3at
• PoE power budget: 240 W
• Operating modes: Normal Mode, Port VLAN + Watch Dog Mode
• Switching capacity: 36 Gbps
• MAC address table: 2K entries
• Switching method: store-and-forward
• Data rate: 10 Mbps in half-duplex and full-duplex modes
• Data rate: 100 Mbps in half-duplex and full-duplex modes
• Data rate: 1000 Mbps in full-duplex mode
• Automatic MDI/MDIX detection: supported on all ports
• Full-duplex flow control: IEEE 802.3x
• Half-duplex flow control: backpressure
• Supported network standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

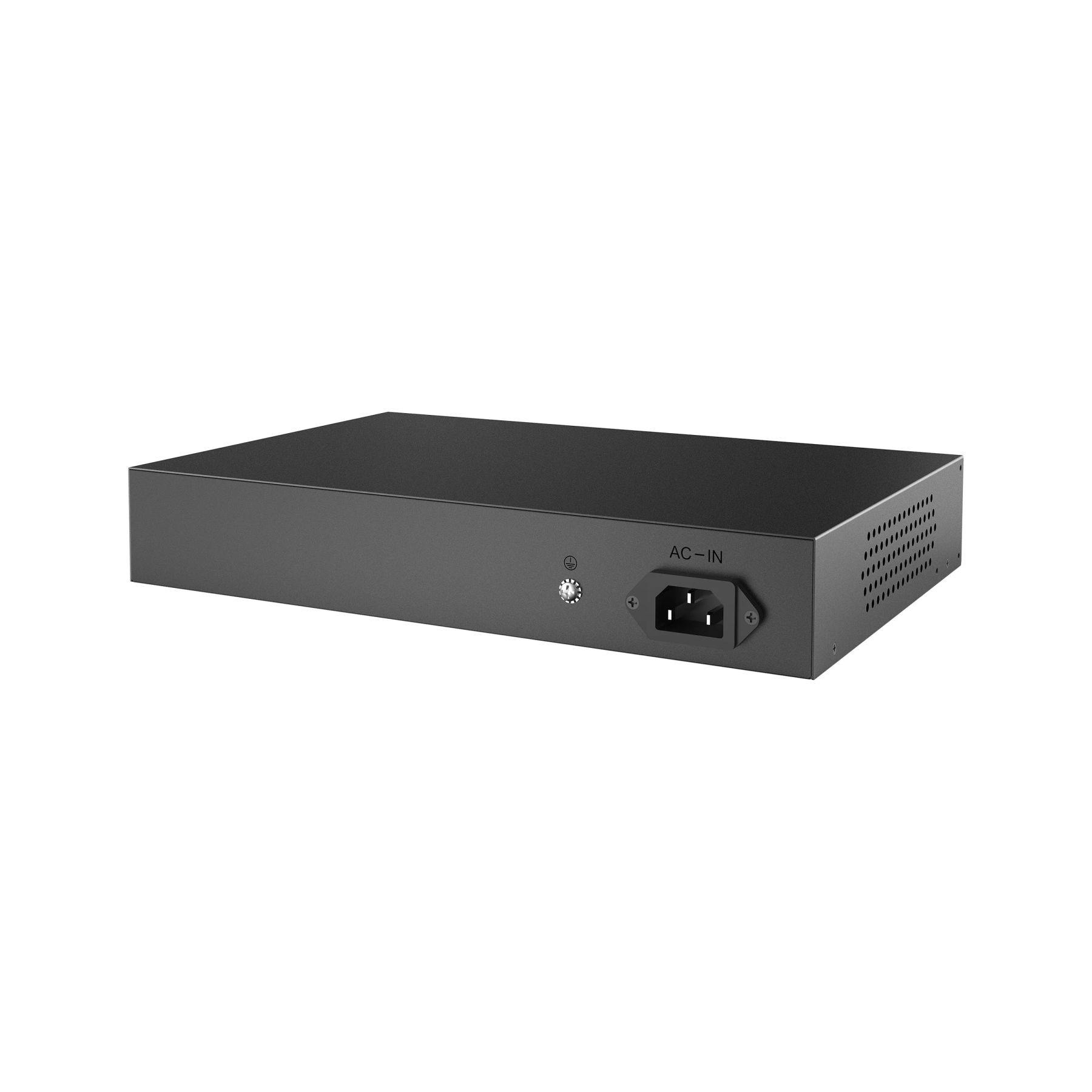

• Power supply: integrated
• AC input voltage: 100-240 V
• Power frequency: 50-60 Hz
• Operating temperature: 0 to +40 °C
• Storage temperature: -40 to +70 °C
• Operating humidity: 10-90% non-condensing
• Storage humidity: 5-90% non-condensing
• Dimensions: 270 x 180 x 45 mm

Who it's for

• Network administrators
• System integrators
• Video surveillance system specialists
• Wireless access point installers
• Office network administrators
• PoE infrastructure deployment specialists

Conclusion

The Netis P116GC combines sixteen Gigabit PoE+ ports, two Gigabit uplink ports and a 240 W power budget. Port VLAN isolation, Watch Dog, automatic MDI/MDIX and 36 Gbps switching capacity suit networks with a large number of PoE-powered devices.
