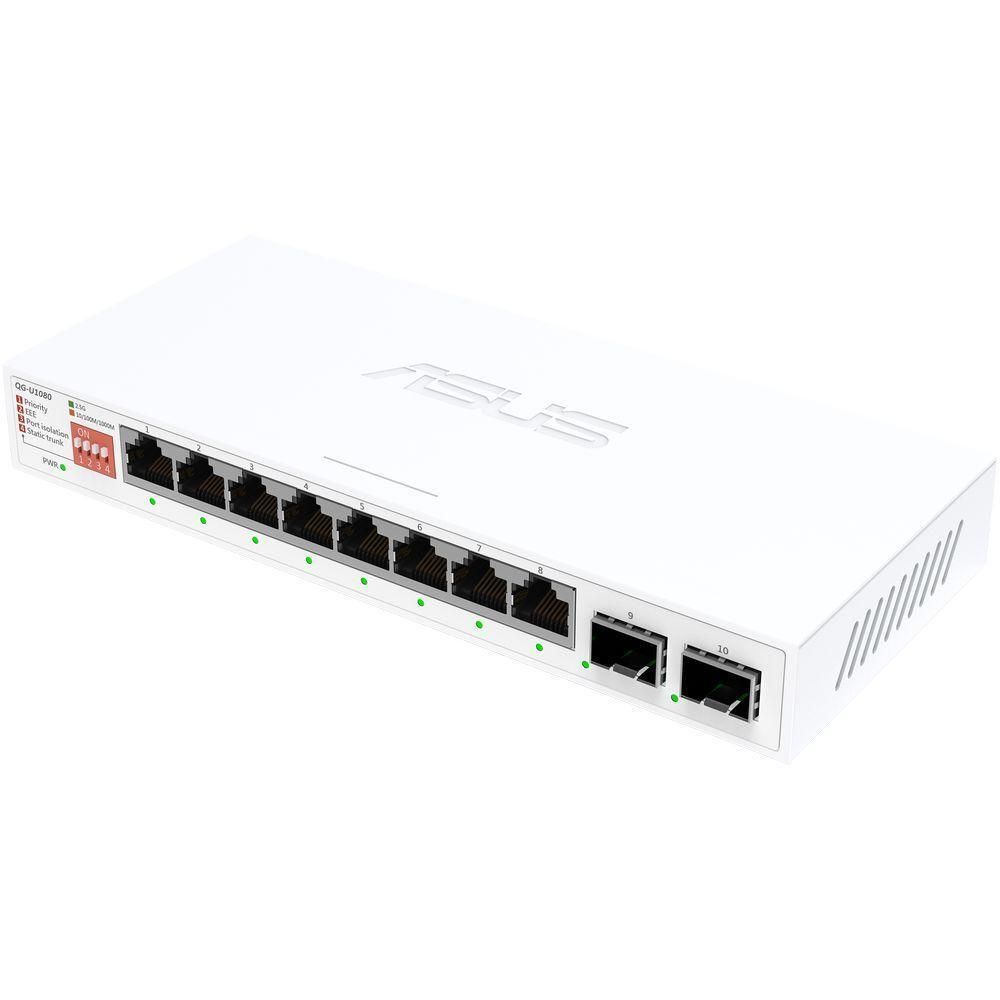

ASUS QG-U1080 8x2.5GE LAN, 2xSFP+

Features

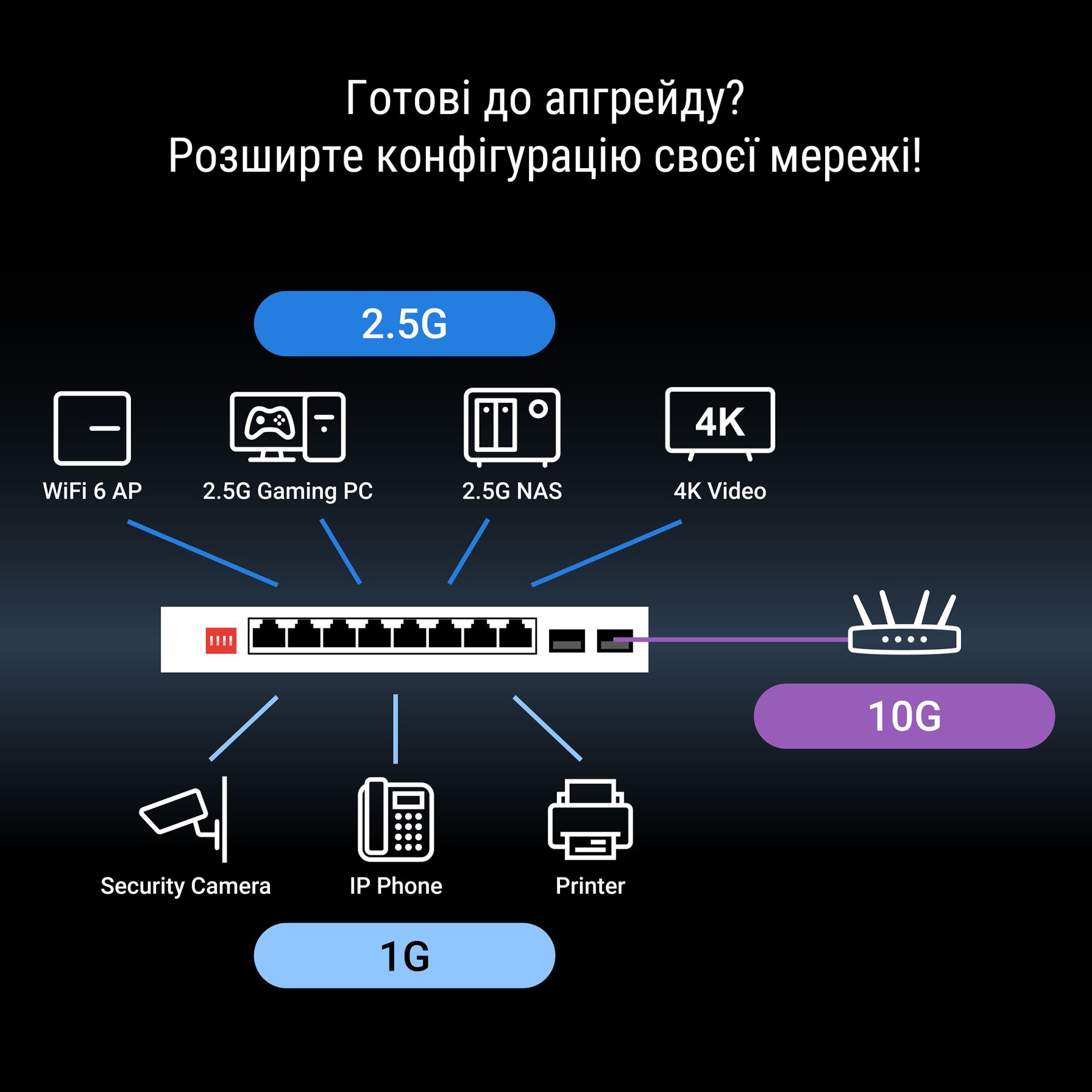

The ASUS QG-U1080 is designed for modern networks that require greater bandwidth than traditional Gigabit infrastructure can provide. Eight 2.5 Gigabit Ethernet ports allow efficient connectivity for workstations, NAS devices and next-generation wireless access points.

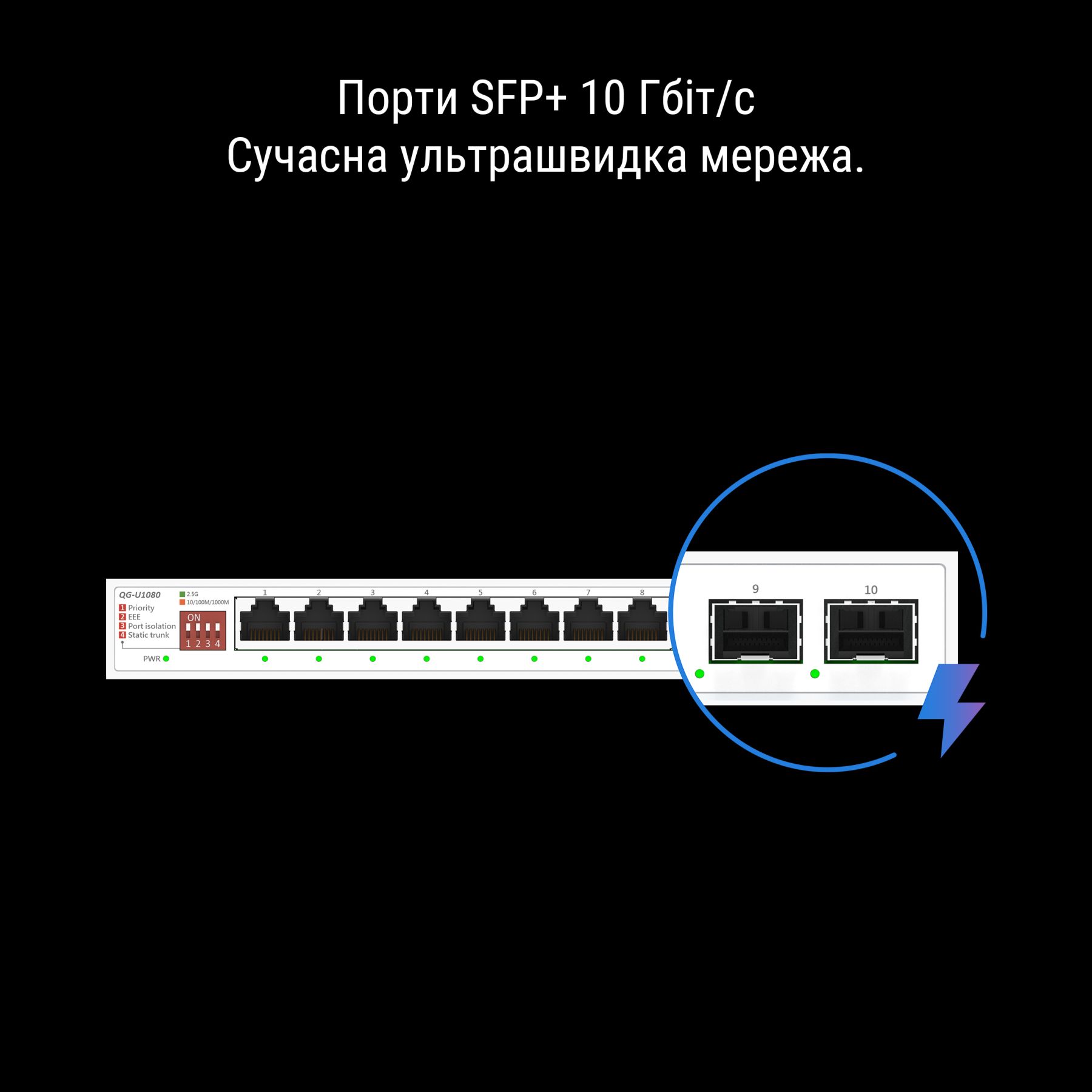

Two 10G SFP+ uplink ports provide high-speed backbone connectivity for servers, storage systems and network aggregation, enabling smooth transfer of large data volumes.

Plug-and-Play operation simplifies deployment. The switch becomes operational immediately after installation without the need for configuration or software management.

Its fanless architecture ensures silent operation, making it suitable for offices, meeting rooms and home workspaces where low noise levels are important.

Energy-saving technologies and intelligent traffic handling contribute to efficient network performance while helping reduce power consumption.

Technologies (used)

• Plug-and-Play deployment
• Energy Efficient Ethernet (IEEE 802.3az)
• Jumbo Frame support up to 10 KB
• Auto-negotiation functionality
• IEEE 802.3x Flow Control
• 16K MAC address table
• Fanless cooling design
• 2.5GbE and 10G SFP+ connectivity

Technical specifications

• Model: ASUS QG-U1080
• Device type: Unmanaged network switch
• Ethernet ports: 8 × 2.5G RJ45
• Optical ports: 2 × 10G SFP+
• Standards: IEEE 802.3u, 802.3ab, 802.3bz, 802.3-2012 (10GBASE-KR), 802.3az, 802.3x
• MAC address table: 16K
• Packet buffer: 8 Mbit
• Jumbo Frame: up to 10 KB
• Forwarding rate: 59.52 Mpps
• Indicators: Power and port status LEDs
• Power supply: External adapter 12 V / 1 A
• Operating temperature: 0 to +40 °C
• Dimensions: 193 × 84.1 × 26 mm
• Weight: 420 g
• Color: White

Who it's for

• Home users with high-speed networks
• Small and medium-sized businesses
• NAS storage deployments
• Network administrators
• Wi-Fi 6 and Wi-Fi 7 environments
• High-performance workstations

Conclusion

The ASUS QG-U1080 combines multi-gigabit access ports, 10G uplinks and simple deployment in a compact form factor. It is a practical solution for upgrading network infrastructure where bandwidth, stability and quiet operation are important.
