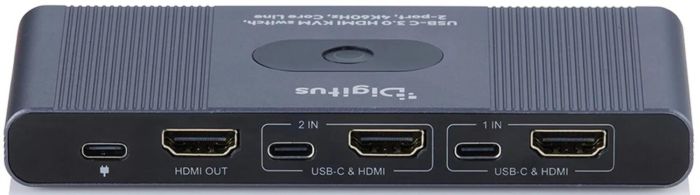

DIGITUS KVM Switch, 2x1 HDMI, 4K@60Hz 3x USB3.0, 1x USB C, Core Line

Features

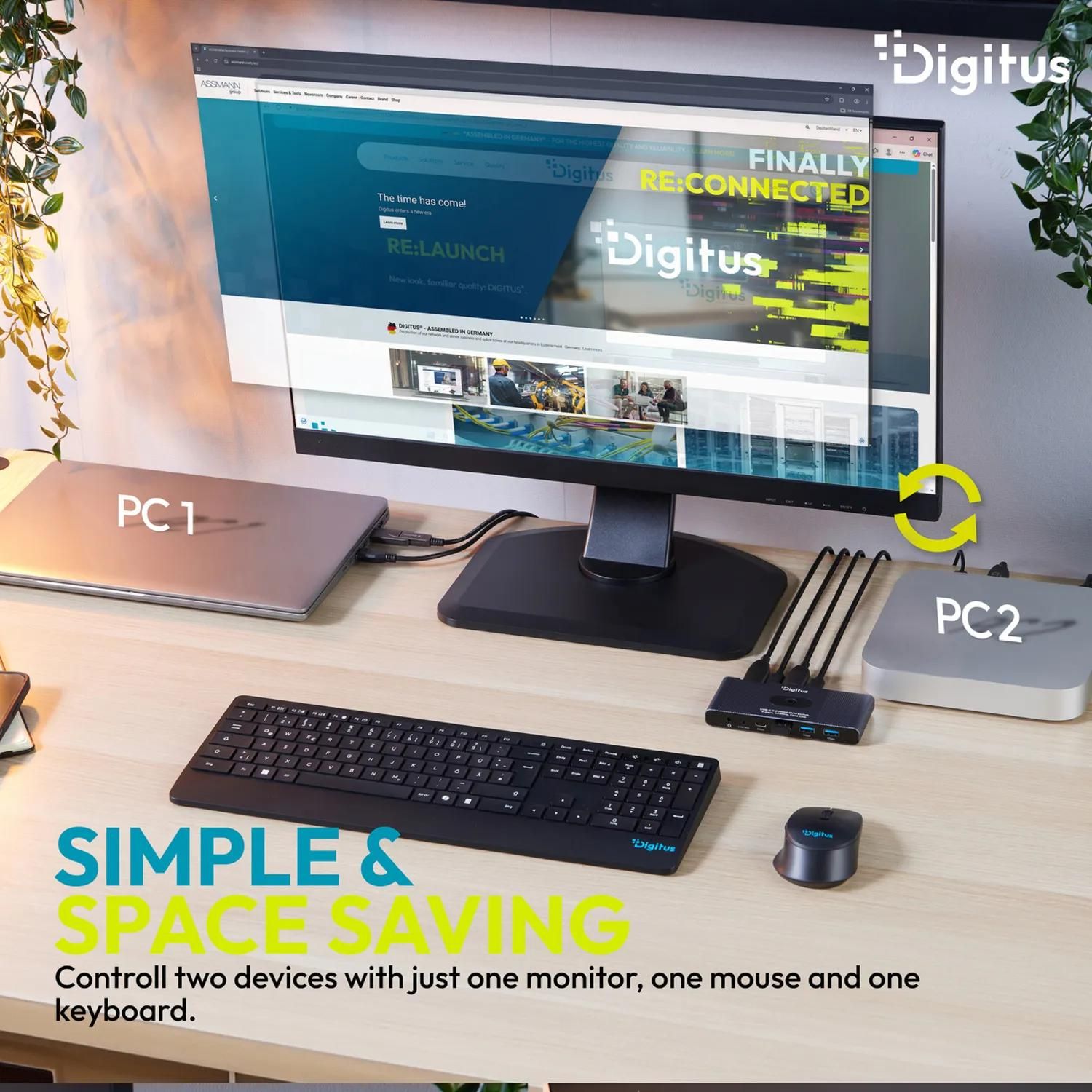

The KVM switch is designed to control two devices using a single keyboard, mouse, and monitor setup. It is suitable for workstations, laptops, and multimedia systems with HDMI support.

Support for up to 4K resolution at 60 Hz with YUV 4:4:4 ensures detailed image output. Compatibility with HDR and 3D supports various content types. HDCP support enables playback of protected media.

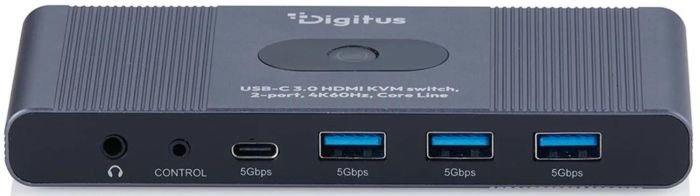

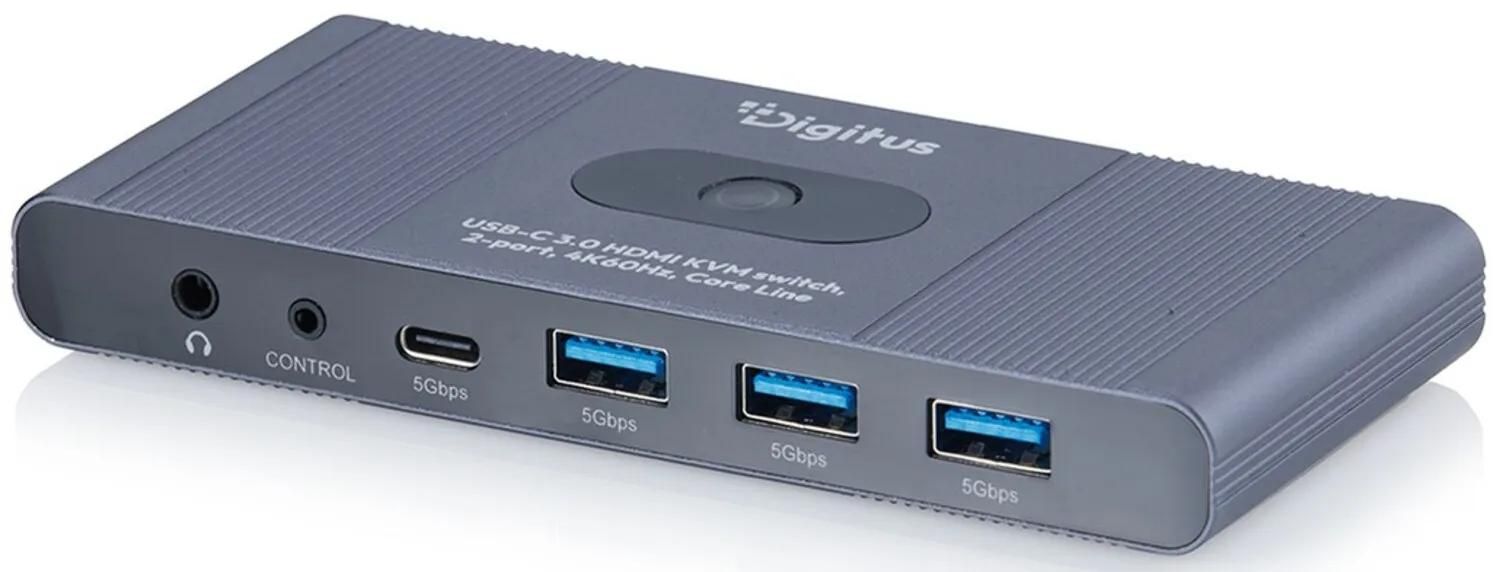

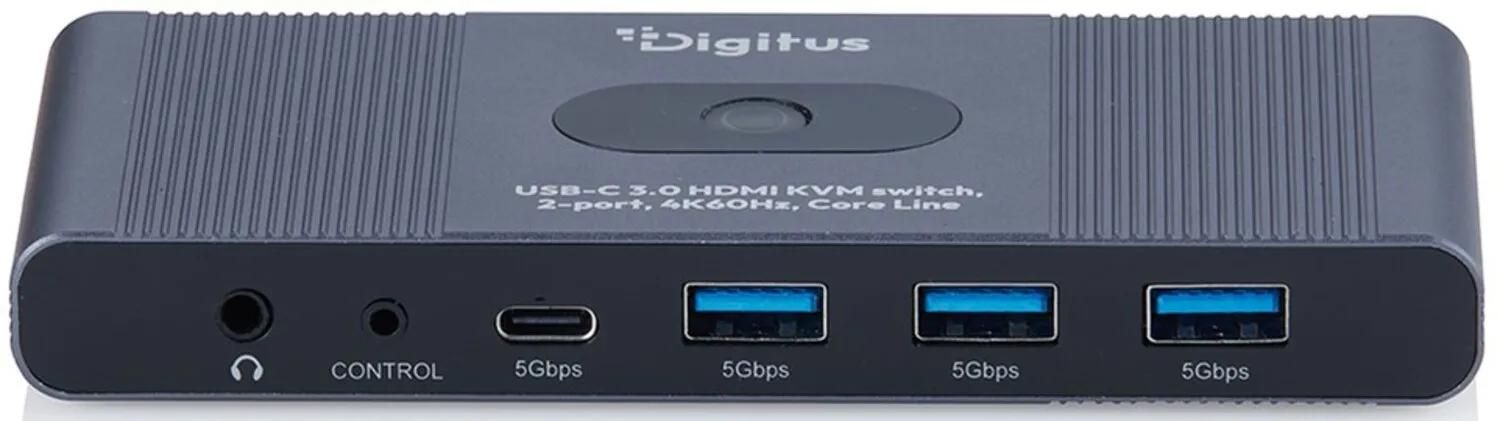

HDMI and USB-C interfaces allow connection of modern devices. Additional USB-A and USB-C ports support external drives and peripherals with data transfer rates up to 5 Gbps.

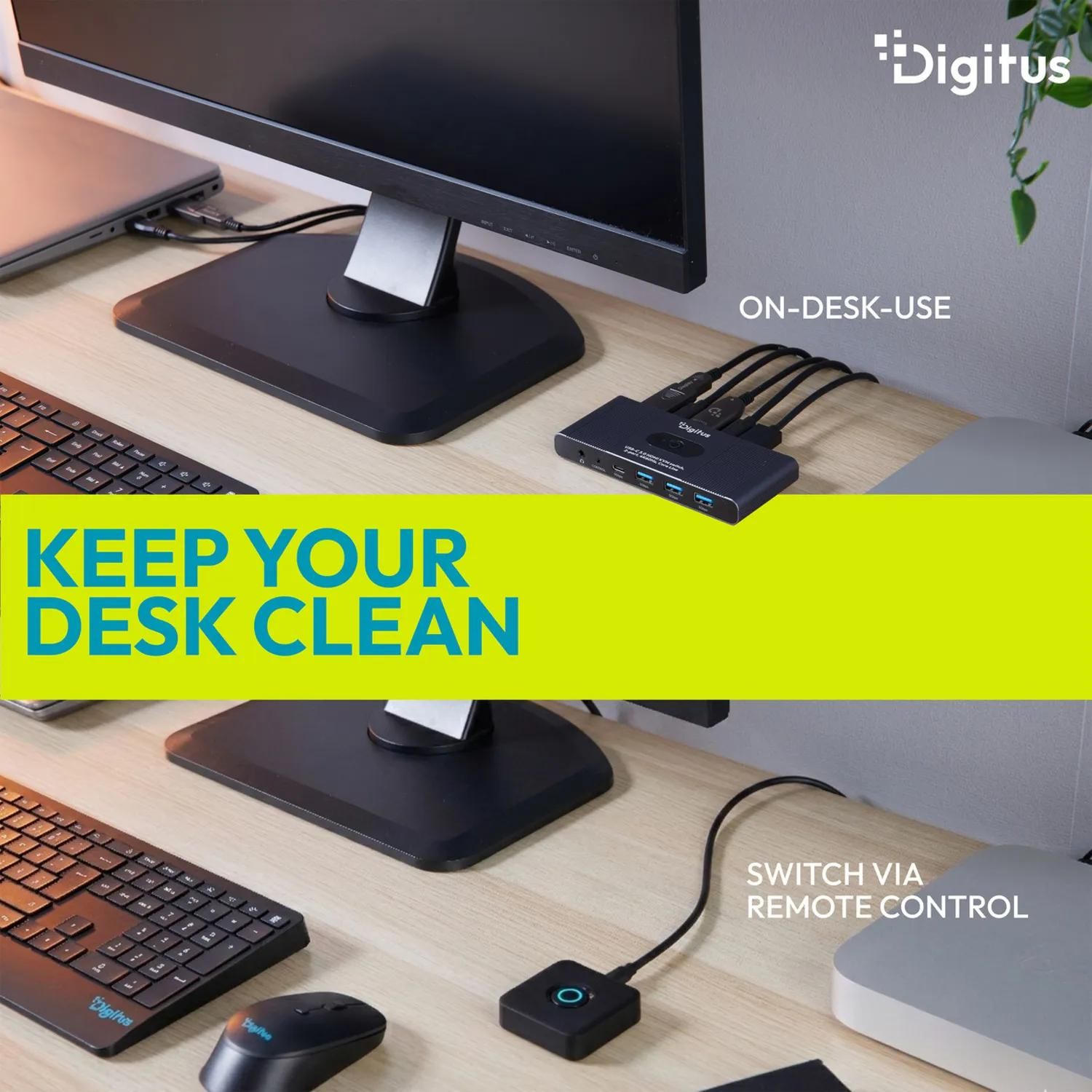

Switching between devices can be done via a button on the unit or a wired remote with a magnetic base. This allows flexible placement of the control interface.

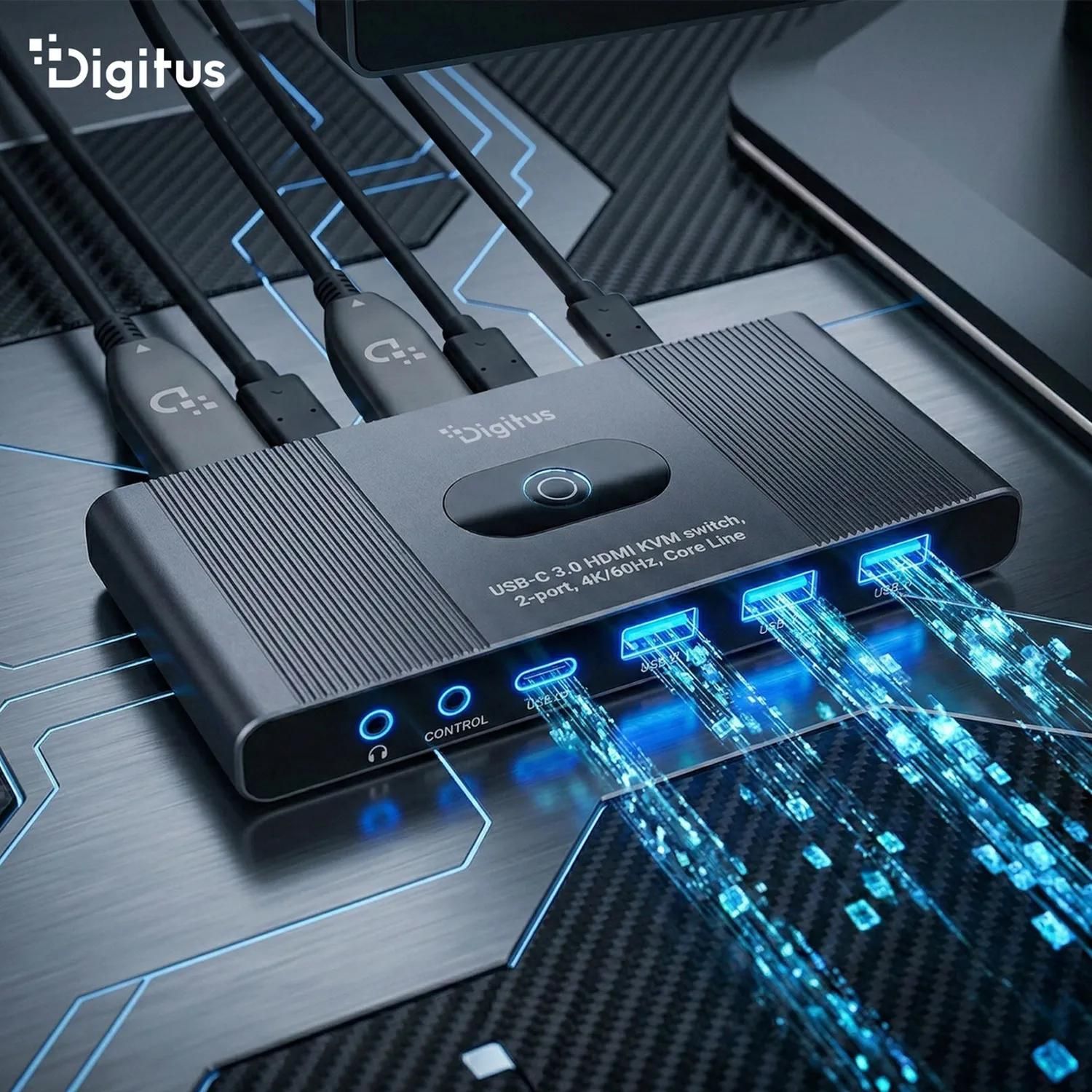

The aluminum housing improves heat dissipation and operational stability. Power is supplied via USB-C with optional external adapter support for high-power devices.

Technologies (used)

• KVM dual-device control
• USB-C 3.0 interface
• 4K 60Hz YUV 4:4:4 support
• HDR and HDCP
• USB 3.0 data transfer up to 5 Gbps

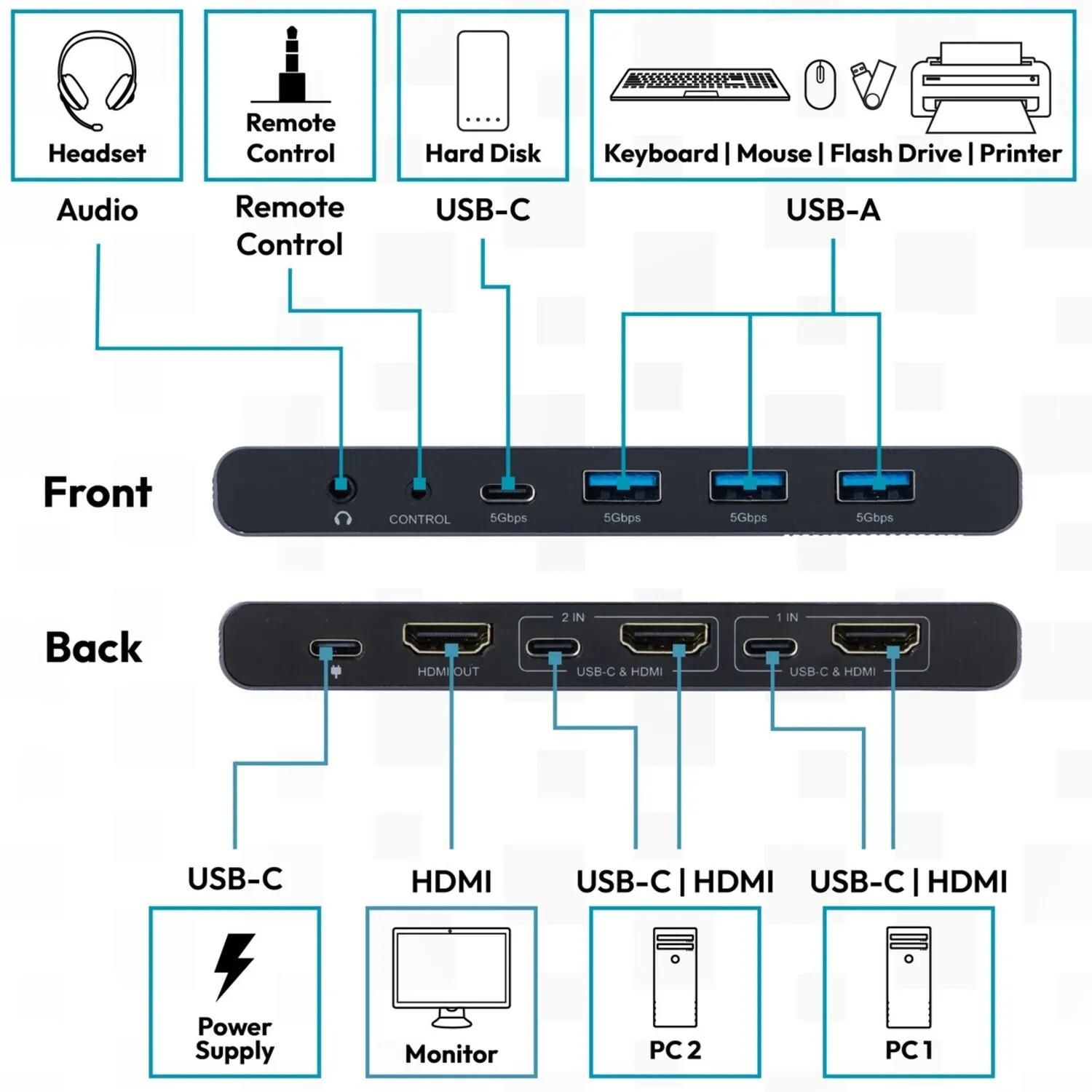

Technical specifications

• type: KVM switch
• number of devices: 2
• video output: 1 × HDMI
• video inputs: 2 × HDMI
• control inputs: 2 × USB-C 3.0
• USB ports: 3 × USB-A 3.0, 1 × USB-C 3.0
• audio output: 3.5 mm
• maximum resolution: 4K@60Hz
• support: HDR, HDCP 1.4/2.2, 3D
• bandwidth: up to 18 Gbps
• power supply: USB-C 5 V
• housing material: aluminum
• dimensions: 135 × 60 × 30 mm
• weight: 227 g

Who it's for

• for system administrators
• for users with multiple devices
• for single-monitor workspace setups

Conclusion

The DIGITUS Desktop Core Line KVM switch provides efficient device switching and stable signal transmission. It supports organized and space-efficient workstation setups.
