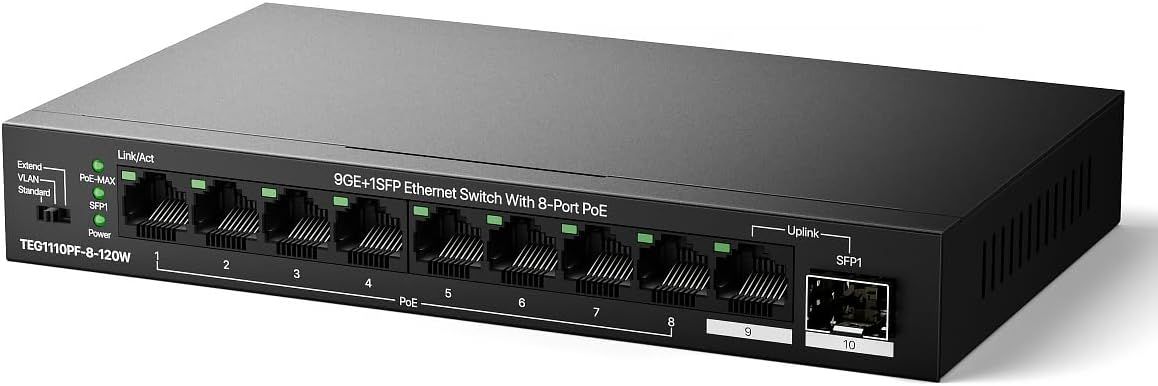

TENDA Switch 8xGE PoE, 1xGE, 1xSFP Tenda TEG1110PF-8-120W

Features

TENDA TEG1110PF-8-120W is designed for building network infrastructure with PoE support. Eight PoE ports enable connection of IP cameras, access points, and similar devices without separate power supplies.

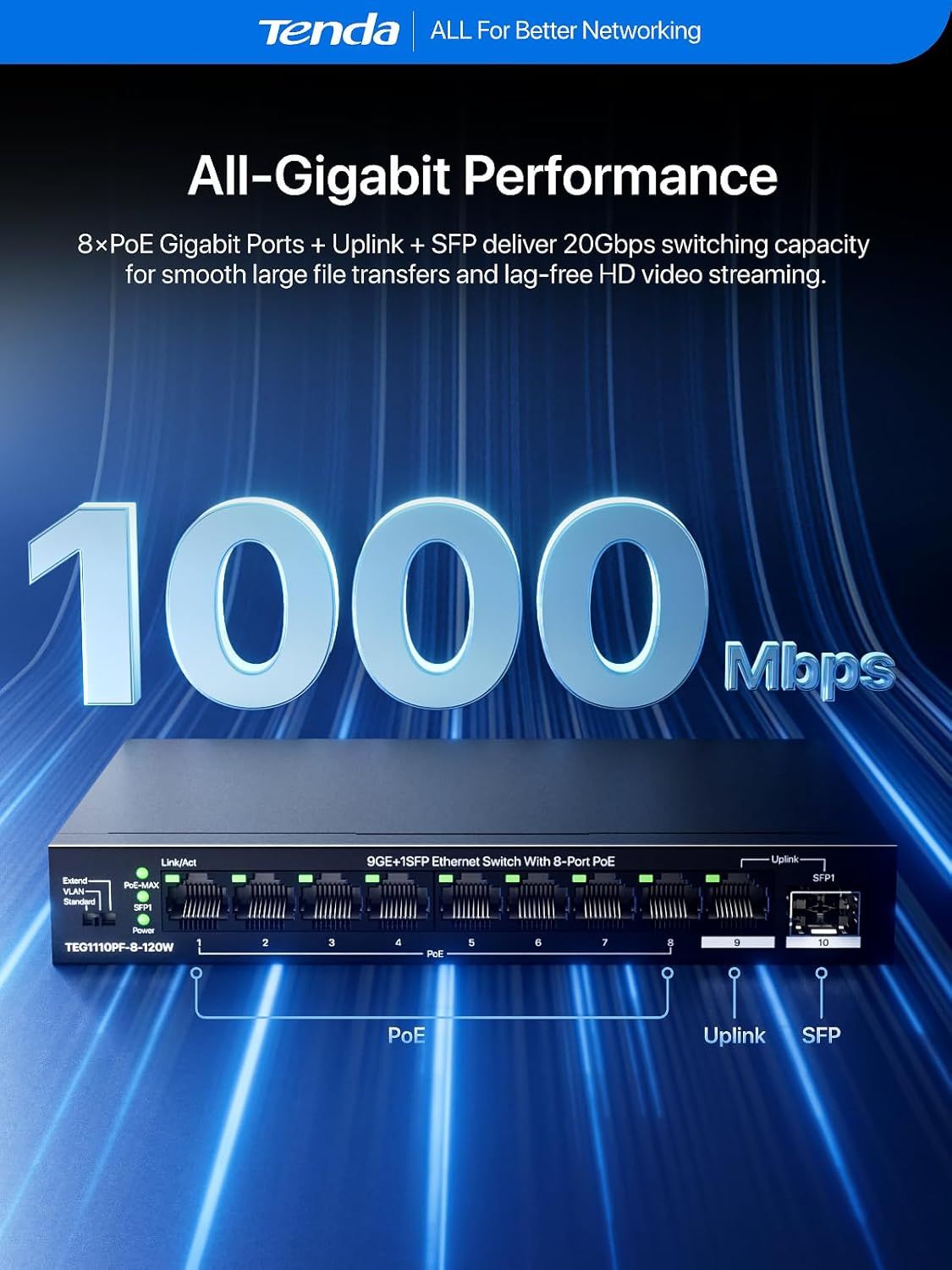

A Gigabit uplink port and SFP slot provide flexibility for network expansion and backbone connections. Integration into existing infrastructure remains straightforward.

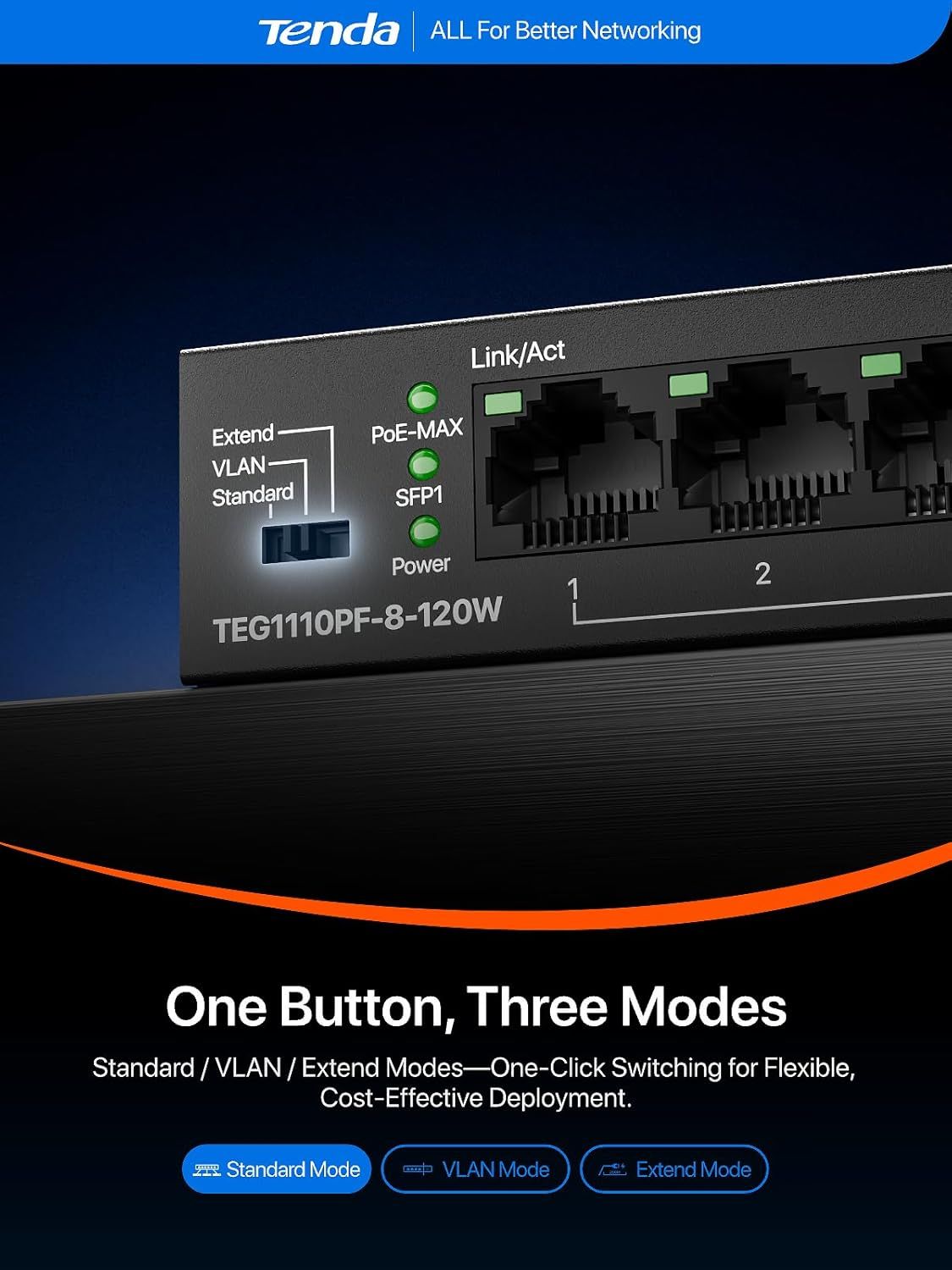

Three operating modes are available. Standard mode allows full port communication. VLAN mode isolates traffic. Extend mode increases transmission distance up to 250 meters.

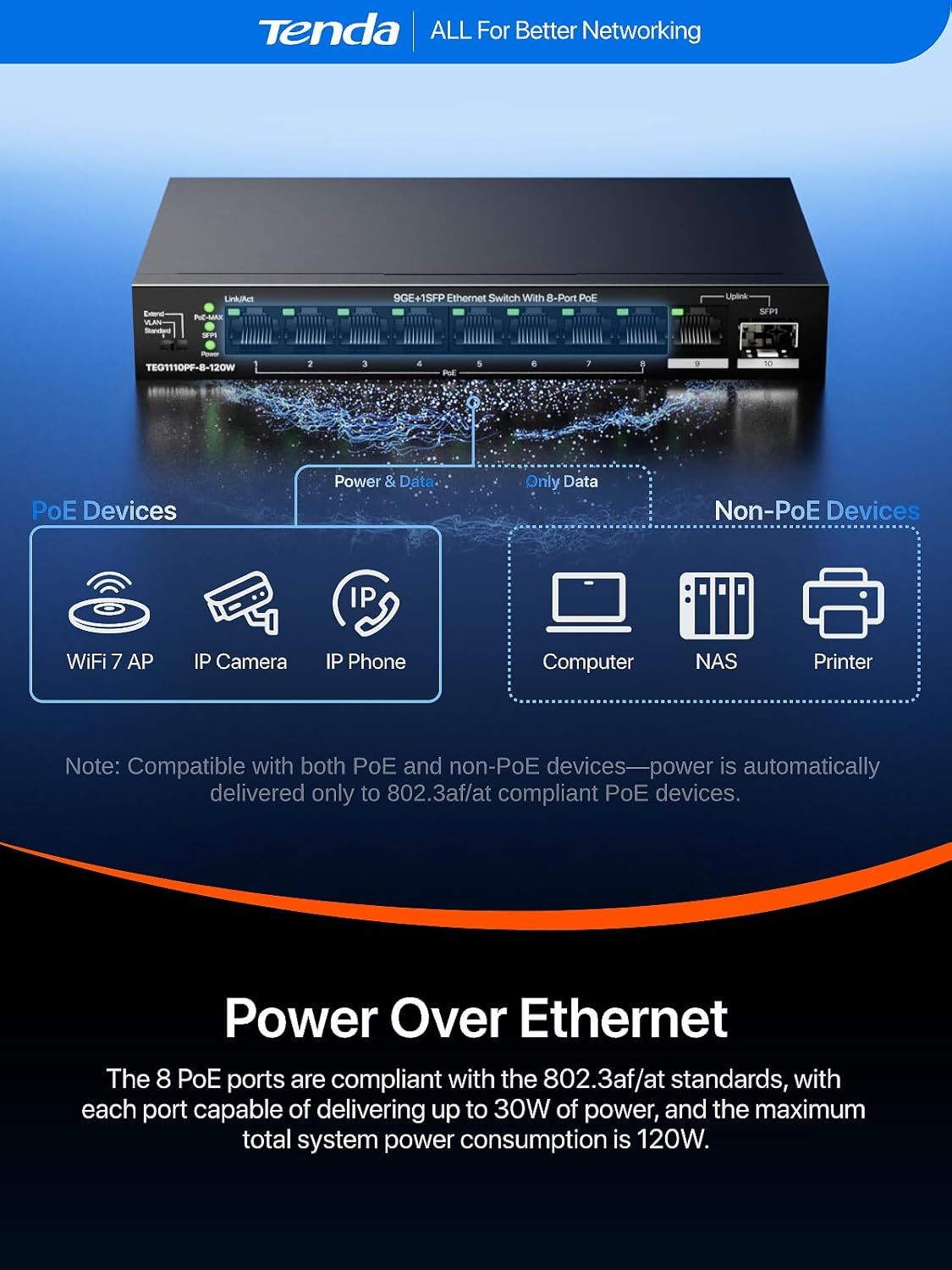

Support for IEEE 802.3af and 802.3at ensures compatibility with a wide range of PoE devices. Power budget distribution supports multiple connected endpoints.

The enclosure supports stable operation in typical environments. Surge protection enhances durability. Both desktop and wall mounting options are available.

Technologies (used)

• PoE (IEEE 802.3af/at)
• Gigabit Ethernet
• SFP uplink
• VLAN isolation mode
• Extended transmission mode
• Store-and-forward switching
• 6 kV surge protection

Technical specifications

• Model: TENDA TEG1110PF-8-120W
• Type: unmanaged switch

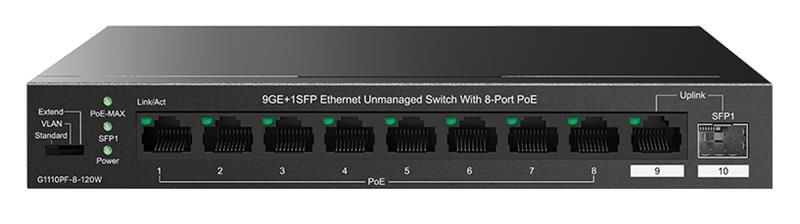

• Ports: 9× RJ45 10/100/1000 Mbps, 1× SFP
• PoE ports: 8× GE
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Switching capacity: 20 Gbps
• Forwarding rate: 14.9 Mpps
• PoE budget: up to 92 W
• Power per port: up to 30 W
• Power consumption: up to 120 W
• Input: AC 100–240 V, 50/60 Hz
• Surge protection: 6 kV
• Switching mode: store-and-forward

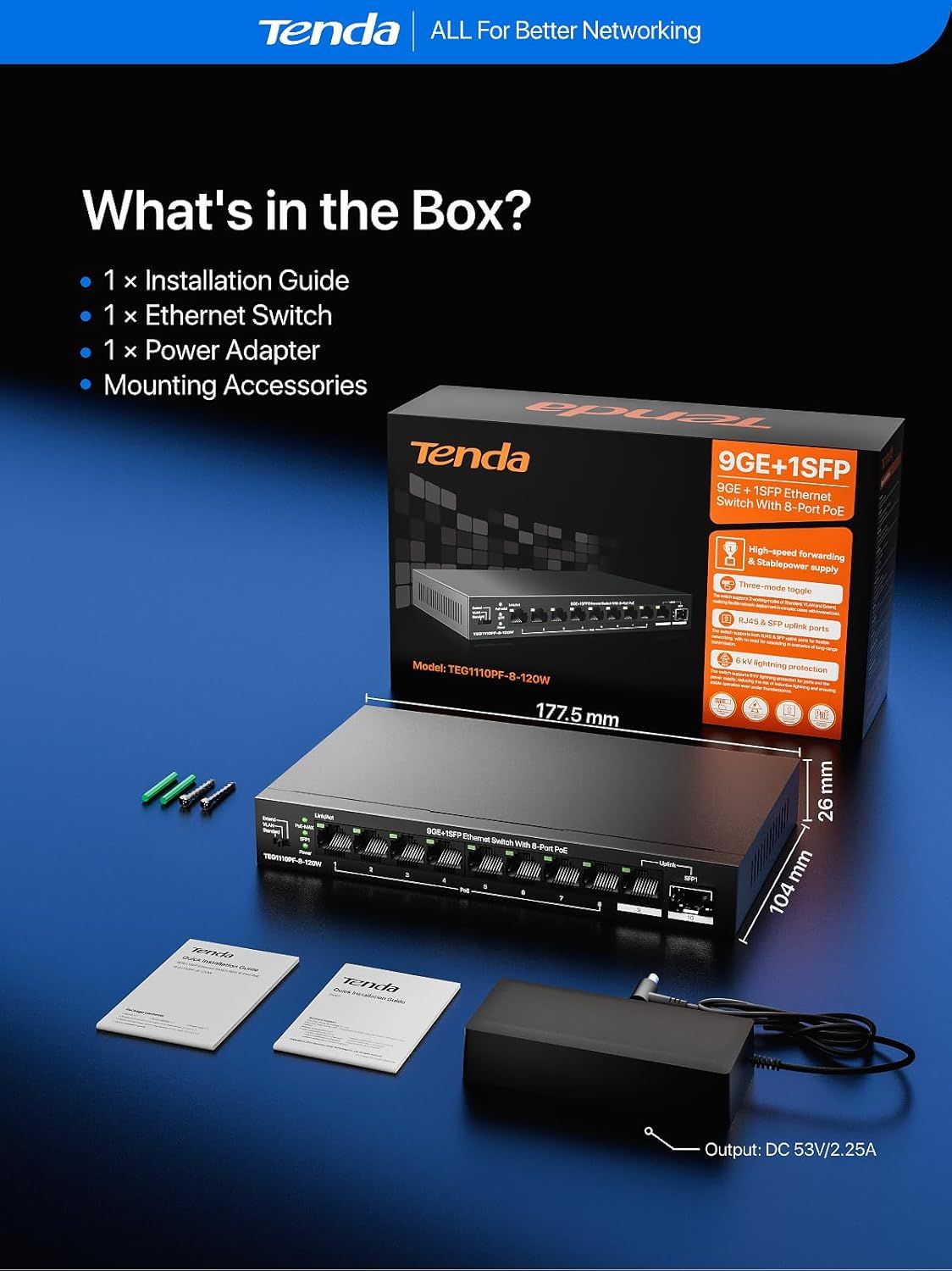

• Dimensions: 177.5 × 104 × 26 mm
• Operating temperature: 0 to +45 °C
• Storage temperature: -40 to +70 °C
• Humidity: up to 90% non-condensing
• Mounting: desktop, wall
• Certification: FCC, CE, RoHS

Who it's for

• Surveillance systems
• Small office networks
• Access control setups
• Wireless access deployments
• PoE-based infrastructures

Conclusion

TENDA TEG1110PF-8-120W combines switching functionality with PoE support and flexible operating modes. Suitable for structured network deployments with moderate requirements.
