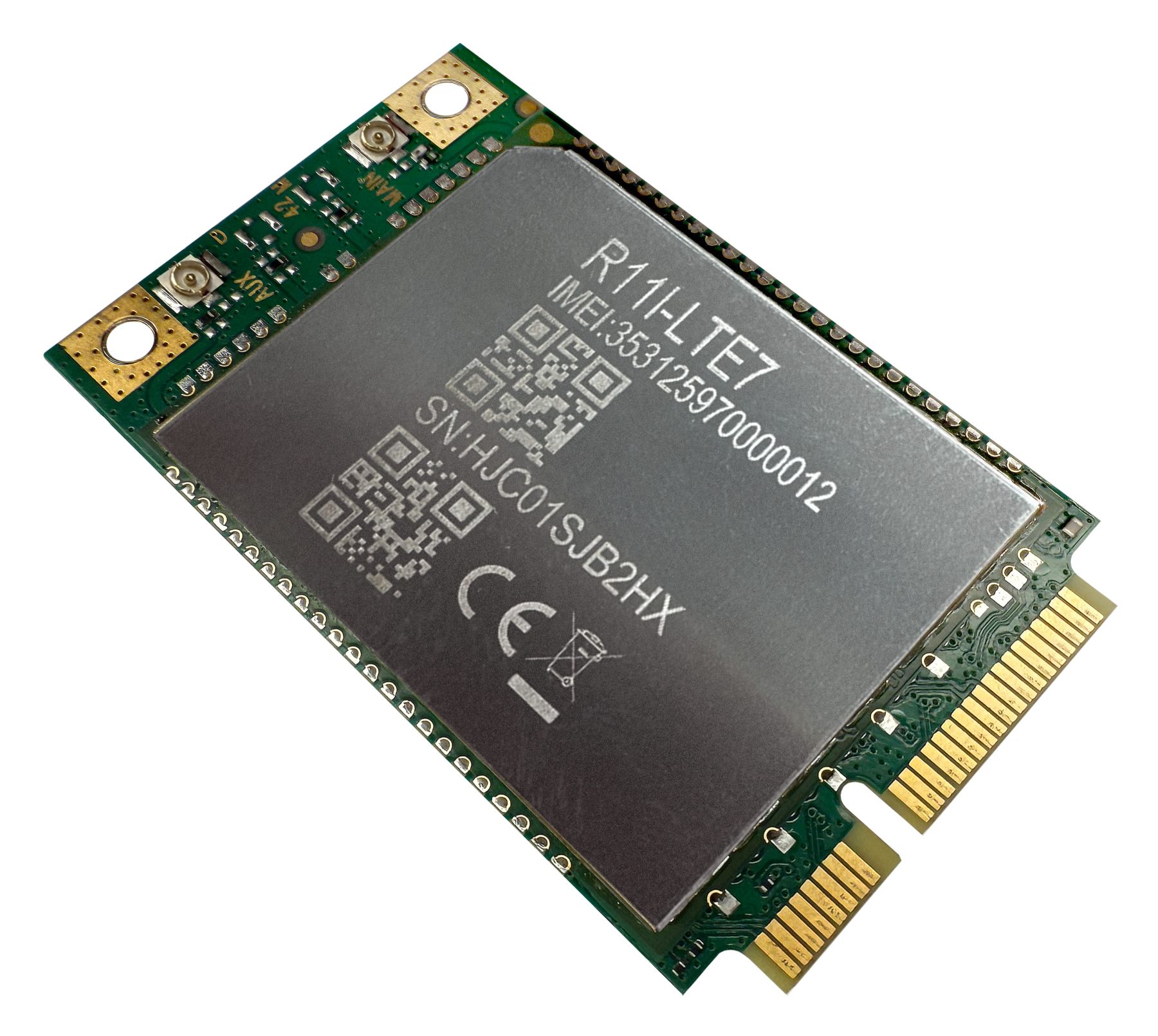

MikroTik miniPCi-e LTE-card R11e-LTE7

Features

The MikroTik R11e-LTE7 is designed for upgrading RouterBOARD devices with miniPCIe support. Its compact form factor simplifies installation into compatible systems without requiring changes to the existing network setup.

The model supports LTE Category 7 with download speeds up to 300 Mbps and upload speeds up to 100 Mbps. Carrier aggregation support allows simultaneous use of multiple LTE bands for improved stability in crowded or remote network environments.

The modem supports LTE Band 28 and Band 32, expanding compatibility with modern mobile networks. LTE FDD and TDD band support enables operation with various mobile operators.

The R11e-LTE7 is compatible with RouterOS v7 and recommended for MikroTik LtAP, RBM33G, and other RouterBOARD devices equipped with miniPCIe slots. USB adapter connectivity is also supported when required.

The model features low power consumption of up to 5 W and supports operation in temperatures from -10 °C to +55 °C.

Technologies (used)

• LTE Category 7
• Carrier aggregation
• miniPCIe
• RouterOS v7 compatibility
• MIMO 2x2
• LTE FDD
• LTE TDD
• 3G support

Technical specifications

• Model R11e-LTE7
• Form factor miniPCIe
• LTE category Cat 7
• LTE download speed up to 300 Mbps
• LTE upload speed up to 100 Mbps
• 3G download speed up to 42.2 Mbps
• 3G upload speed up to 5.76 Mbps
• MIMO DL 2x2
• MIMO UL 1x1
• LTE FDD Band support 1/3/5/7/8/20/28/32
• LTE TDD Band support 38/40/41
• 3G Band support 1/3/5/8
• RouterOS v7 compatibility
• Maximum power consumption 5 W
• Operating temperature -10 °C to +55 °C
• Certification CE, ROHS

Who it's for

• For RouterBOARD integrators
• For LTE device upgrades
• For mobile connectivity in remote locations
• For RouterOS v7 platforms
• For MikroTik LtAP and RBM33G deployments

Conclusion

The MikroTik R11e-LTE7 enables RouterBOARD devices to be upgraded to LTE Category 7 without replacing the entire infrastructure. Carrier aggregation support together with LTE Band 28 and Band 32 helps provide more stable mobile connectivity across different deployment scenarios.
