Features

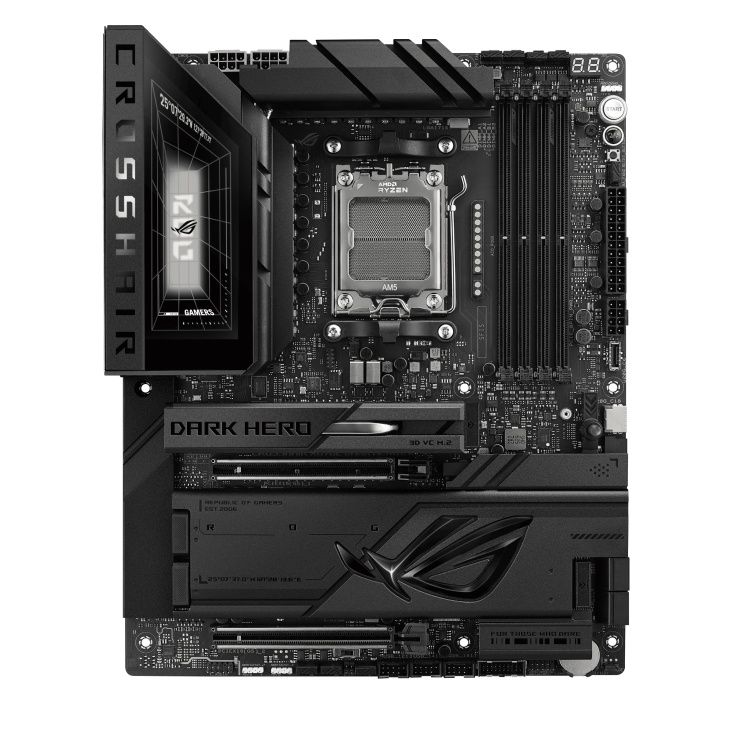

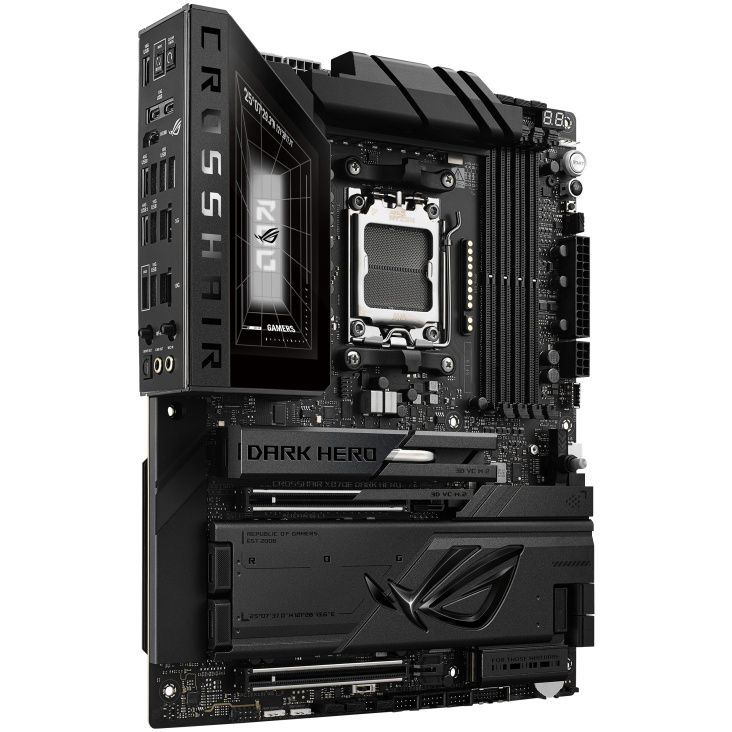

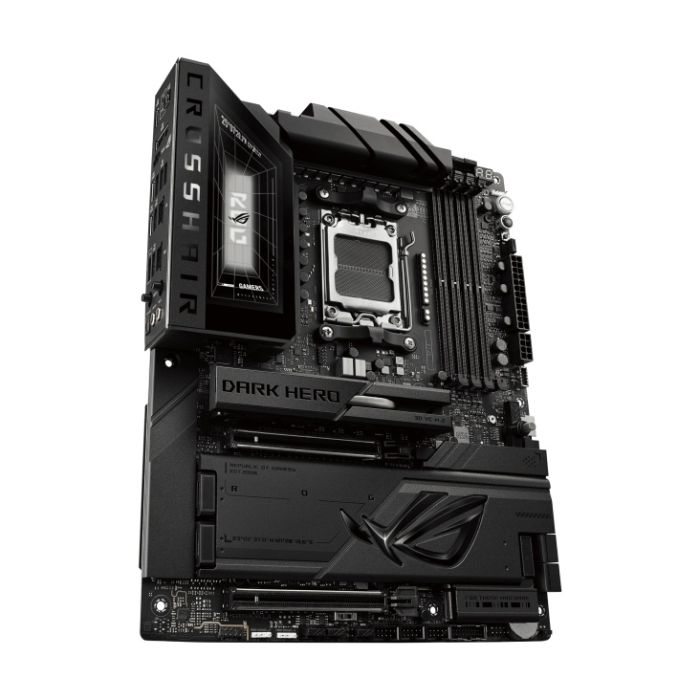

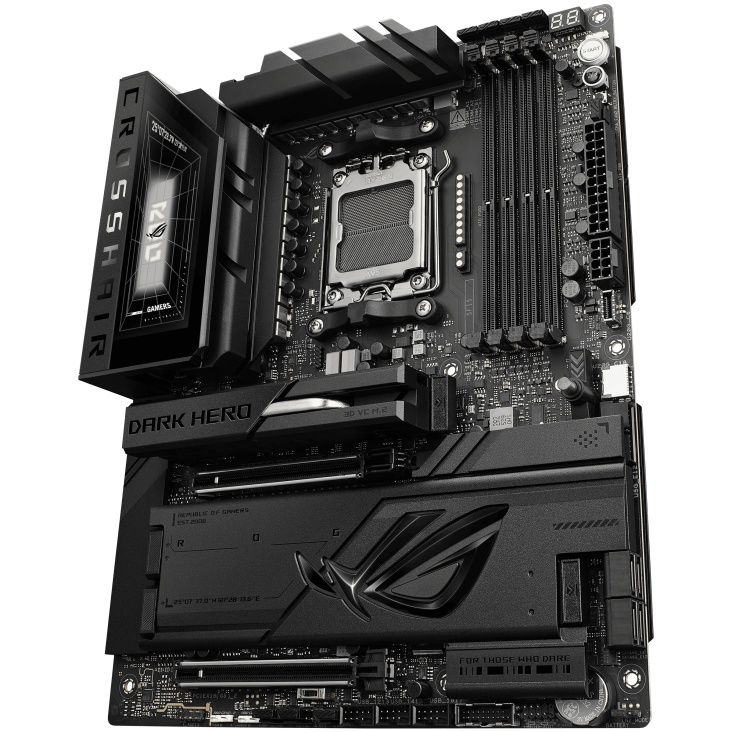

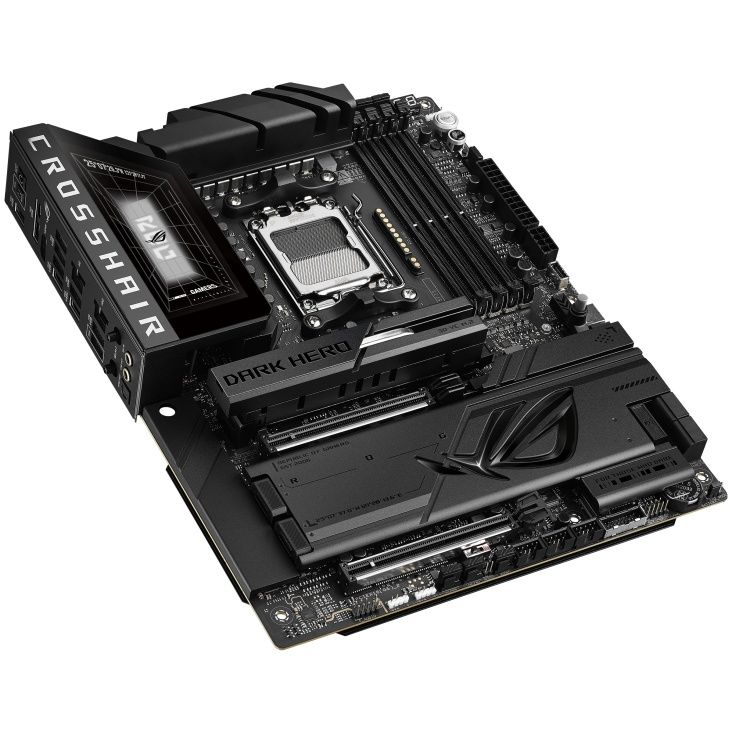

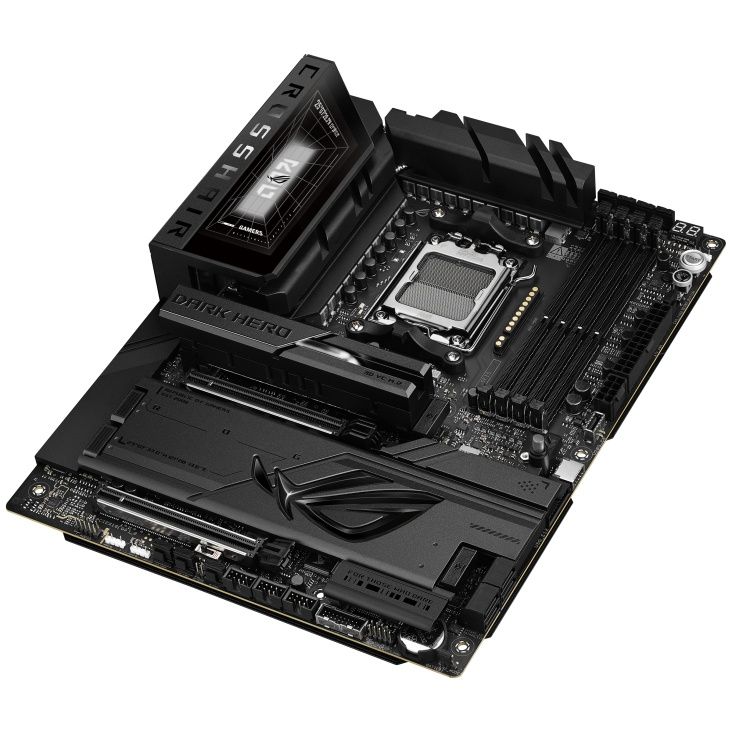

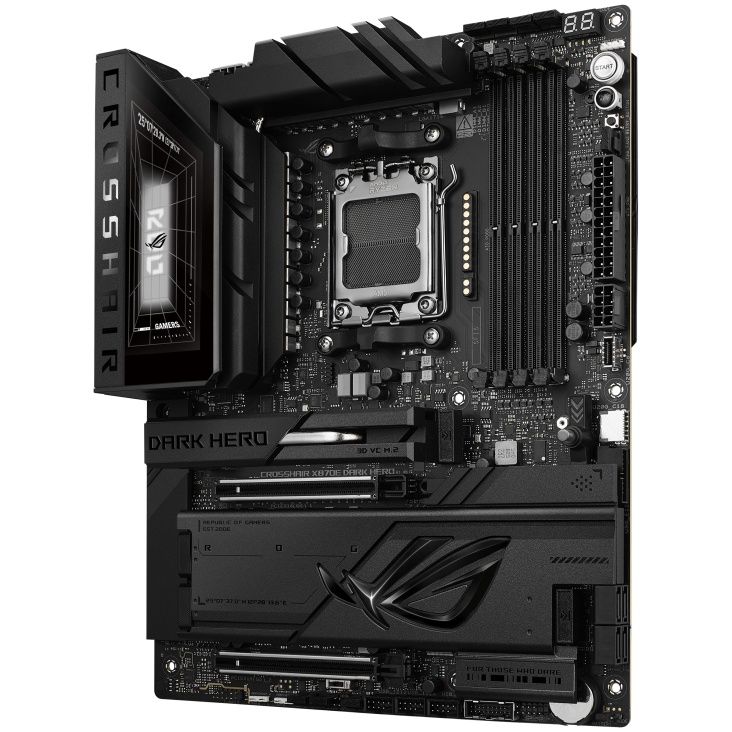

The ROG CROSSHAIR X870E DARK HERO motherboard features a understated black aesthetic and a robust 20+2+2 power delivery system designed to handle flagship Ryzen processors with consistency. Dual PCIe 5.0 x16 slots support multi-GPU setups or other high-bandwidth devices, while five M.2 slots, including two PCIe 5.0 with advanced heatsinks such as 3D VC M.2, provide ample fast storage capacity without thermal limitations.
Memory capacity reaches 256 GB DDR5, enhanced by NitroPath DRAM technology, DIMM Fit Pro, and AEMP for elevated frequencies and reliable overclocking. Networking includes Realtek 10 Gb/s and 5 Gb/s Ethernet controllers alongside Wi-Fi 7 with 320 MHz channel support and Bluetooth 5.4, delivering low-latency, high-throughput performance in current network environments.

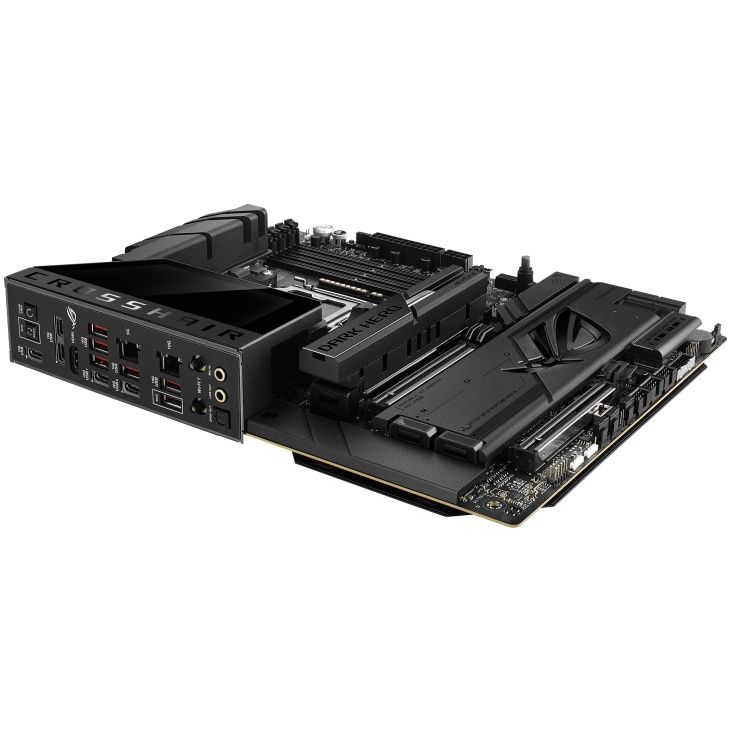

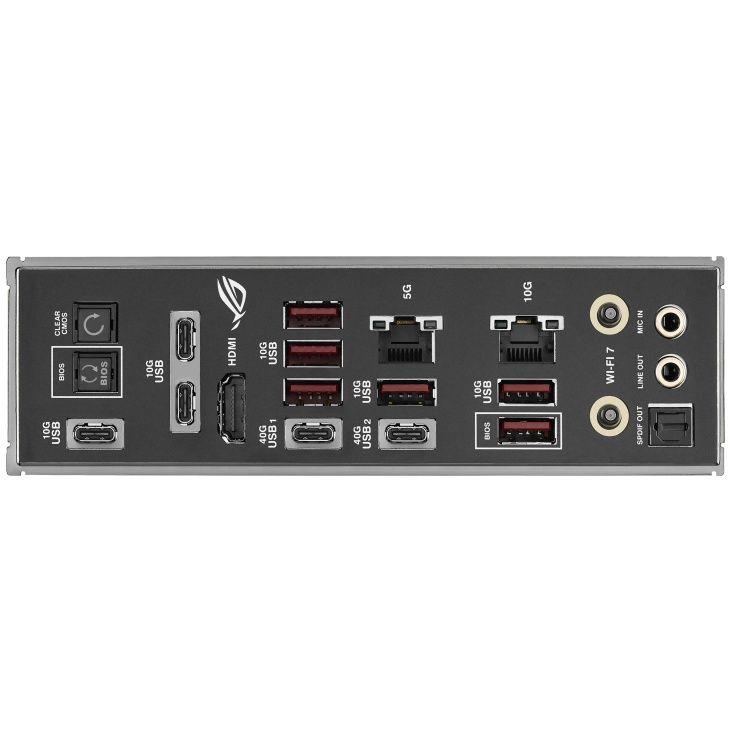

The rear I/O panel offers two USB4 40 Gb/s Type-C ports with DisplayPort functionality, nine USB 10 Gb/s ports, and HDMI for integrated graphics output. Front-panel headers enable USB 20 Gb/s Type-C with up to 60 W power delivery when supplemented by additional PCIe power. SupremeFX ALC4082 audio, paired with quad ESS ES9219 DACs and a 120 dB SNR, provides detailed sound reproduction suitable for gaming and content creation.
The board incorporates an extended extreme cooling kit with LN2 mode, asynchronous clock generator, ReTry, Start, and FlexKey buttons, complemented by comprehensive VRM and M.2 heatsink coverage. Q-Design elements simplify installation and troubleshooting, while Aura Sync paired with Polymo Lighting II enables customized lighting effects.
Technologies (used)
- ASUS 5X PROTECTION III with SafeSlot, SafeDIMM, and ProCool II.
- Extreme Engine Digi+ featuring 10K black capacitors and MicroFine alloy chokes.
- ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Slide, PCIe Q-Release, Q-LED).
- ASUS Thermal Solution (3D VC M.2 heatsink, rear M.2 heatsink, VRM heatsink, ROG assist fan).
- AI Overclocking, AI Cooling II, AI Cache Boost, AI Advisor.
- NitroPath DRAM, DIMM Fit Pro, AEMP, Dynamic OC Switcher, Core Flex.
- Aura Sync with Polymo Lighting II and addressable RGB Gen 2 headers.
Technical specifications
- Socket: AMD AM5.
- Chipset: AMD X870E.
- Memory: 4 × DDR5 DIMM, up to 256 GB, up to 9600+ MT/s (OC).
- Graphics: 1 × HDMI 2.1, 2 × USB4 Type-C with DisplayPort.
- Expansion slots: 2 × PCIe 5.0 x16 (x16 or x8/x8).
- Storage: 5 × M.2 (2 × PCIe 5.0 x4, 2 × PCIe 4.0 x4, 1 × PCIe 4.0 x2), 4 × SATA 6 Gb/s.
- Networking: Realtek 10Gb + 5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4.
- USB: 11 rear (2 × USB4 40 Gb/s, 9 × 10 Gb/s), up to 12 front (including 20 Gb/s Type-C 60 W).
- Audio: ROG SupremeFX ALC4082 + ESS ES9219 QUAD, up to 32-bit/384 kHz.
- Form factor: ATX (30.5 × 24.4 cm).
- BIOS: 64 Mb UEFI AMI.
- OS: Windows 11.
Who it's for
- Enthusiasts and overclockers working with flagship Ryzen 9000 series processors.
- Gamers assembling high-end systems with multiple GPUs or ultra-fast NVMe storage.
- Users requiring maximum network throughput (10Gb Ethernet + Wi-Fi 7).
- Builders of premium PCs prioritizing superior audio, cooling, and customization.
Conclusion
The ROG CROSSHAIR X870E DARK HERO integrates a strong component foundation, cutting-edge interfaces, and precise tuning capabilities within a refined design. It fits builds that demand rock-solid stability under extreme loads, rapid connectivity, and extensive overclocking flexibility.
-
Box Contains:M.2 Screw Package, Q-connector, M.2 Q-Slide package, ASUS WiFi Q-Antenna, M.2 backplate Rubber, Thermal pad for M.2 22110, короткий посібник користувача, відкривачка для пляшок ROG, картка ROG VIP, наклейки ROG, допоміжний вентилятор ROG (60 мм), тримач вентилятора DDR5, кабелі SATA 6 Гбіт/с
-
Towards:gaming (overclocking)
-
Form Factor:ATX
-
Connection type:AM5
-
Processor compatibility:AMD Ryzen 9000/8000/7000
-
Northbridge (chipset):AMD X870
-
UEFI BIOS:Yes
-
Connector type:DDR5
-
The maximum amount of memory GB:256
-
Graphical interface:PCI-E x16 5.0
-
HDMI Output:Yes
-
Sound:7.1
-
Connection interface:SATA 3, M.2
-
SATA3 (6 Gb / s):4 ports
-
LAN (RJ-45):10 Gb/s, 5 Gbit/s
-
Number of LAN-ports:2
-
LAN-Controller Model:Realtek®
-
USB 2.0 pcs:3
-
USB 3.2 Gen 1:2
-
USB 3.2 Gen 2:9
-
USB 3.2 Type-C pcs:7
-
M.2 connector:5
-
BIOS:UEFI
-
Support software RAID:Yes
-
Аudiochip:ALC4082
-
Dimensions (HxW):305 x 244
-
S/P-DIF:Yes
-
DDR5:4 slots
-
Wi-Fi:Yes
-
Bluetooth:Yes
-
USB pcs:23
-
Features:ROG CPU-Z, BIOS Flashback, ASUS Q-Design, ASUS Thermal Solution, ASUS Exclusive Software, ASUS EZ DIY, Synchronization backlight Asus Aura Sync, Addressable Gen 2 header, S/PDIF out header, CPU fan header, CPU OPT Fan connector, AIO Pump header, Q-connector, FlexKey, SafeDIMM slot, Extreme Engine Digi+, Clear CMOS button, Start button, LN2 Mode jumpers, LN2 Mode, ASUS GlideX, ASUS DriverHub, HWiNFO, GameFirst, Dolby Atmos, Internet Security, Polymo Lighting II, ReTry button, Fan Xpert 4, ASUS AI Advisor, Turbo V Core, Підтримка Windows 11
