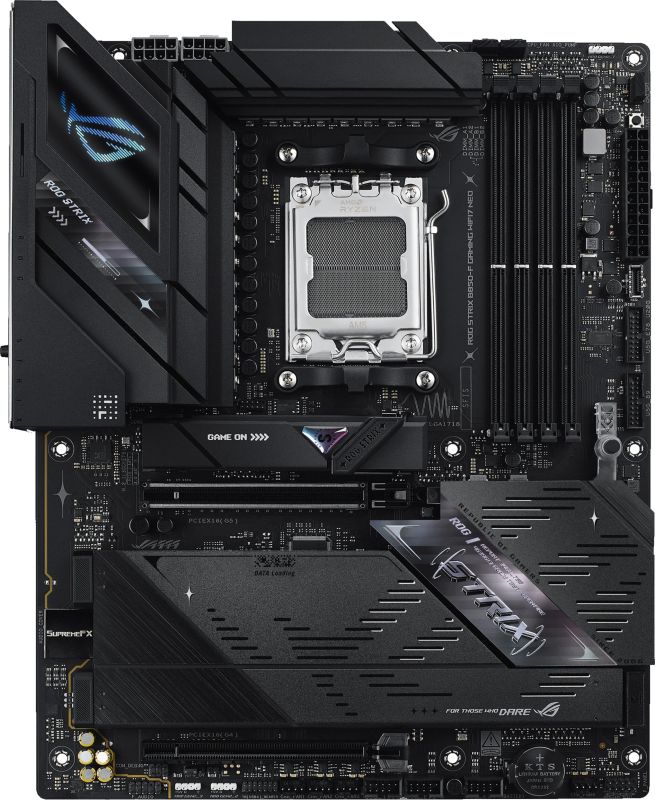

ASUS Motherboard ROG STRIX B850-F GAMING NEO sAM5 B850 4xDDR5 M.2 HDMI DP USB ATX
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Features

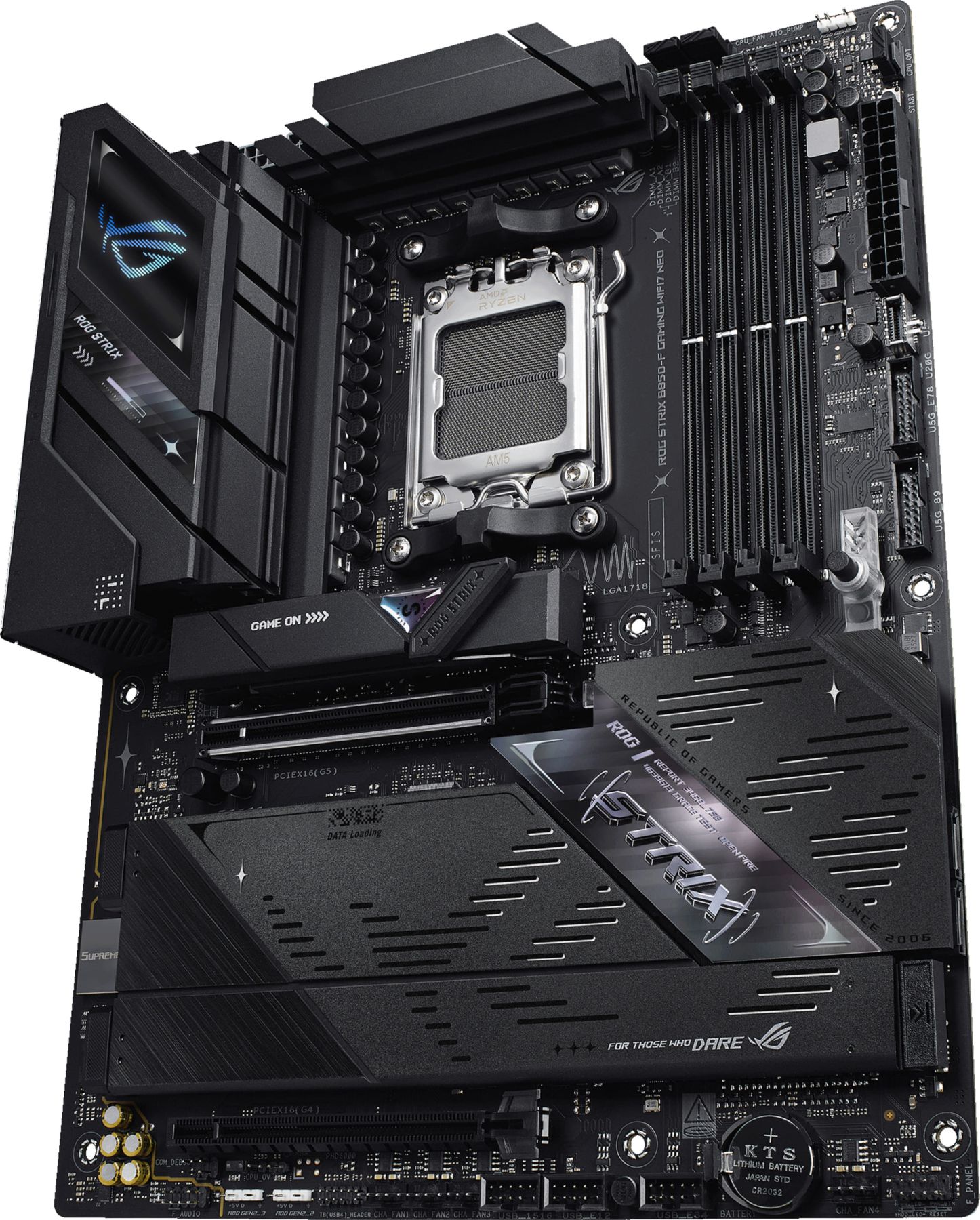

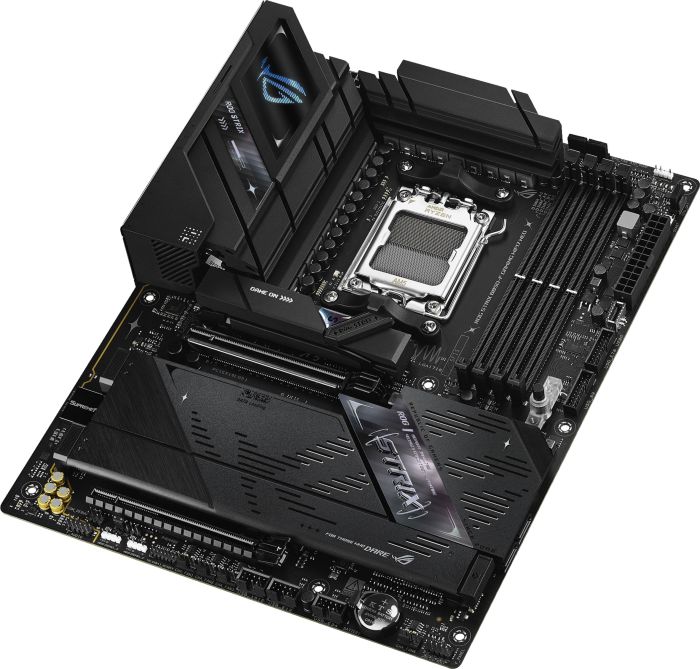

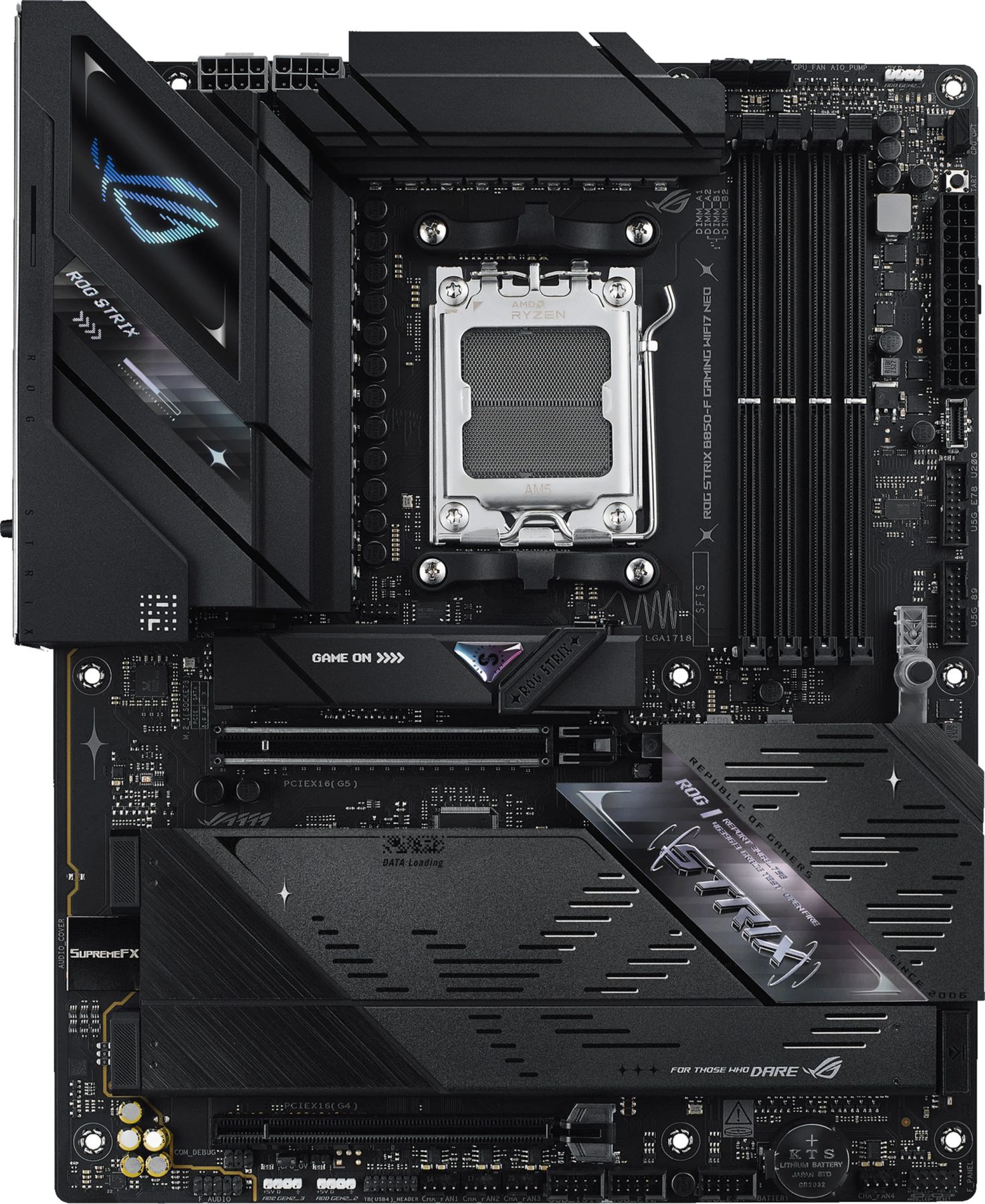

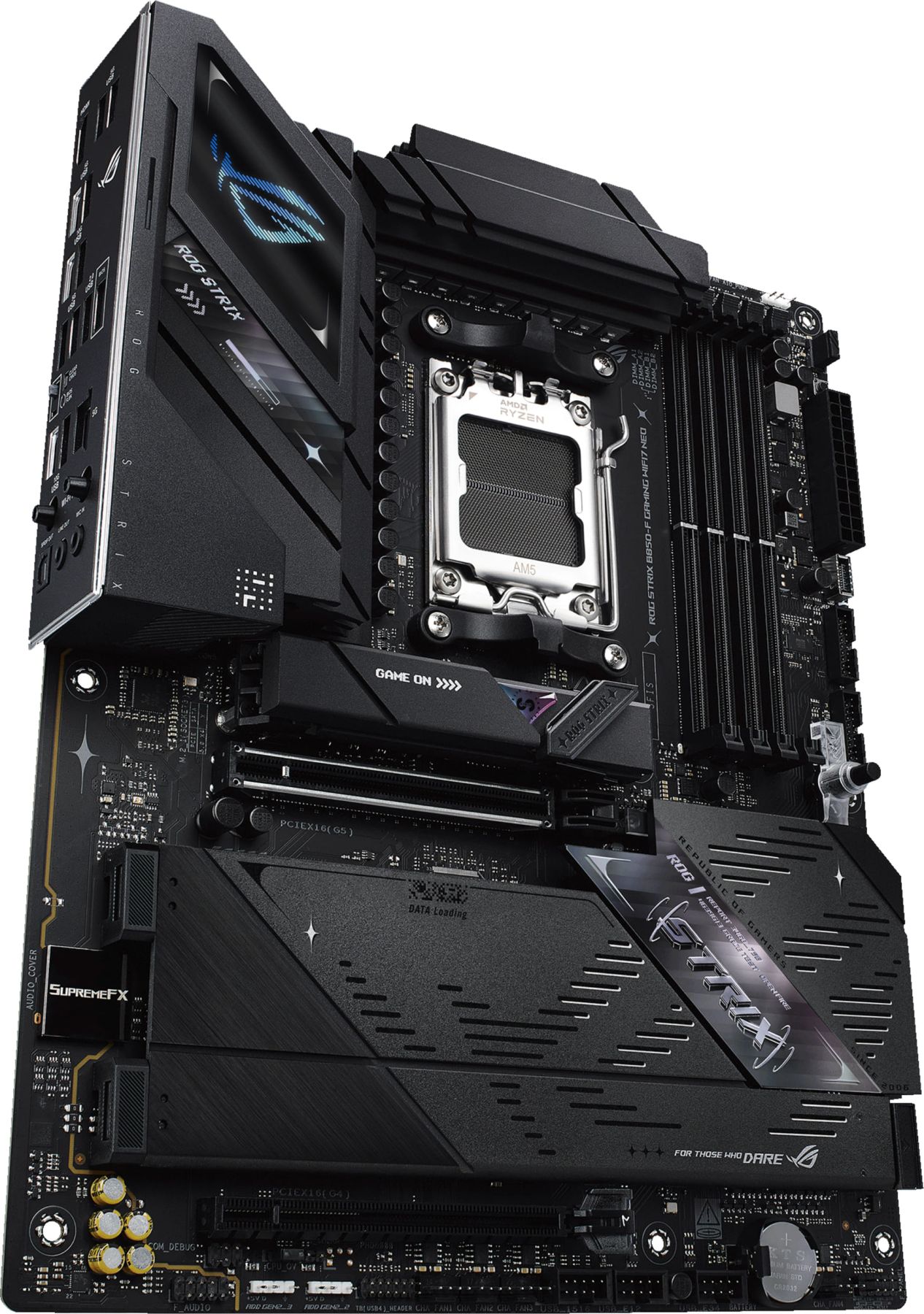

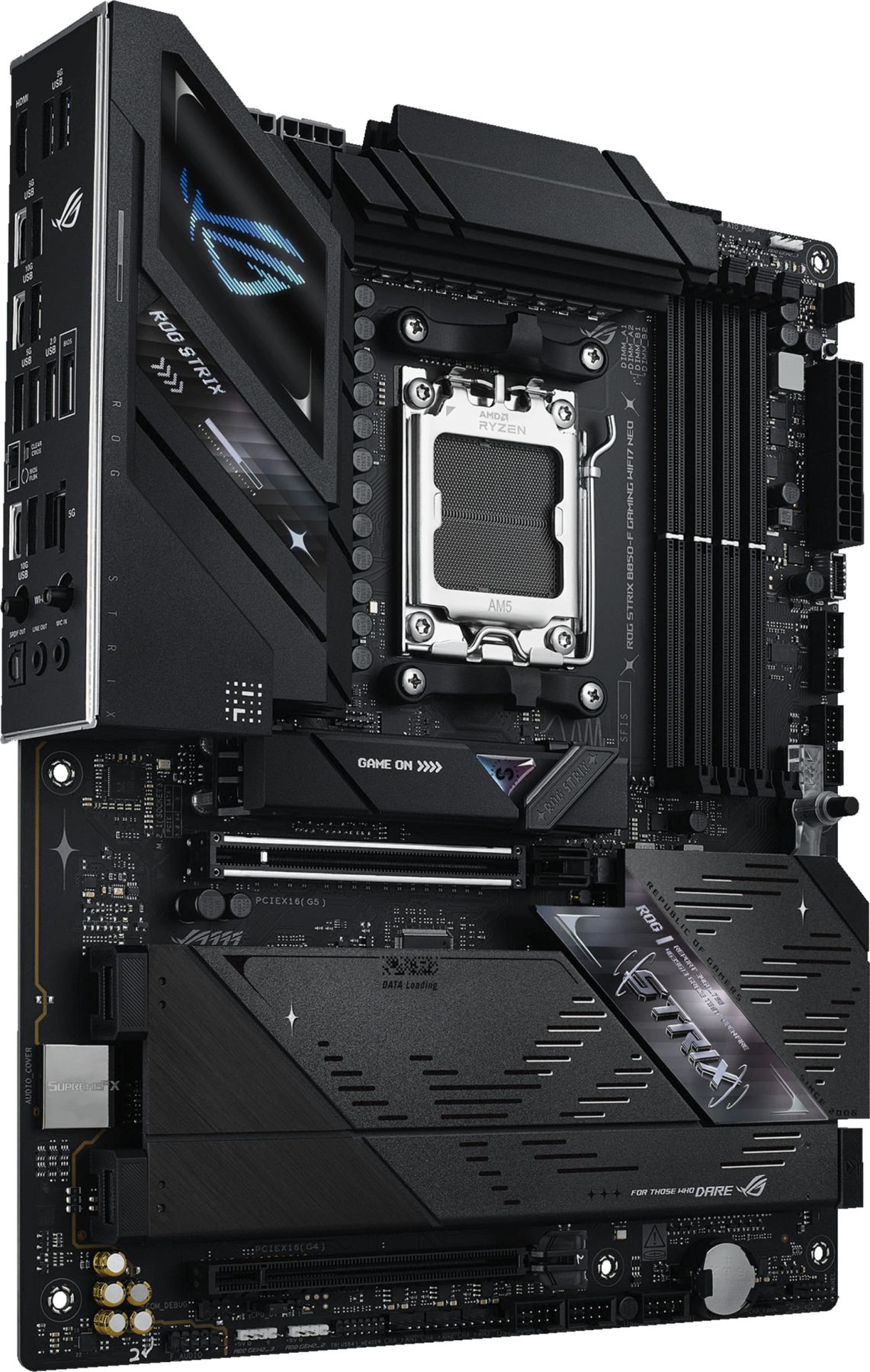

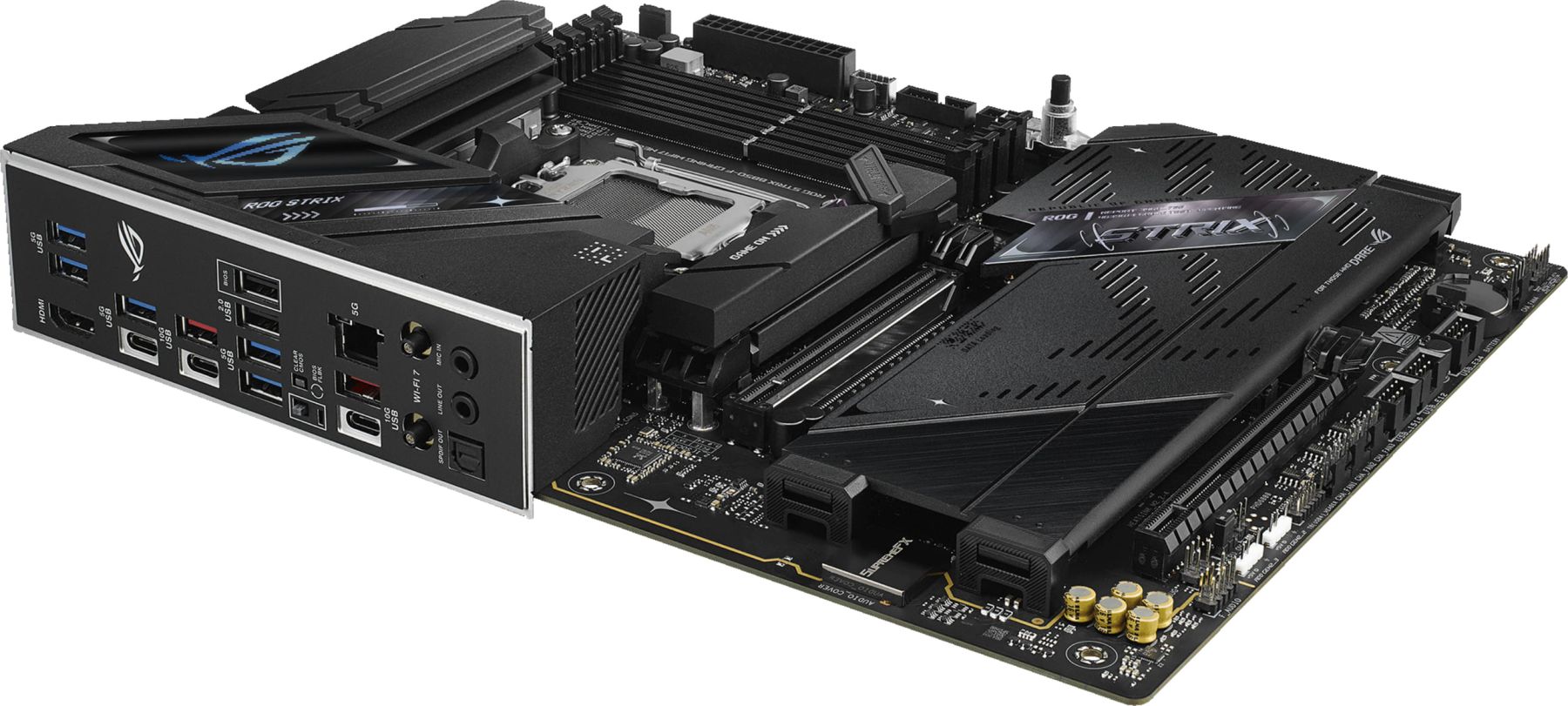

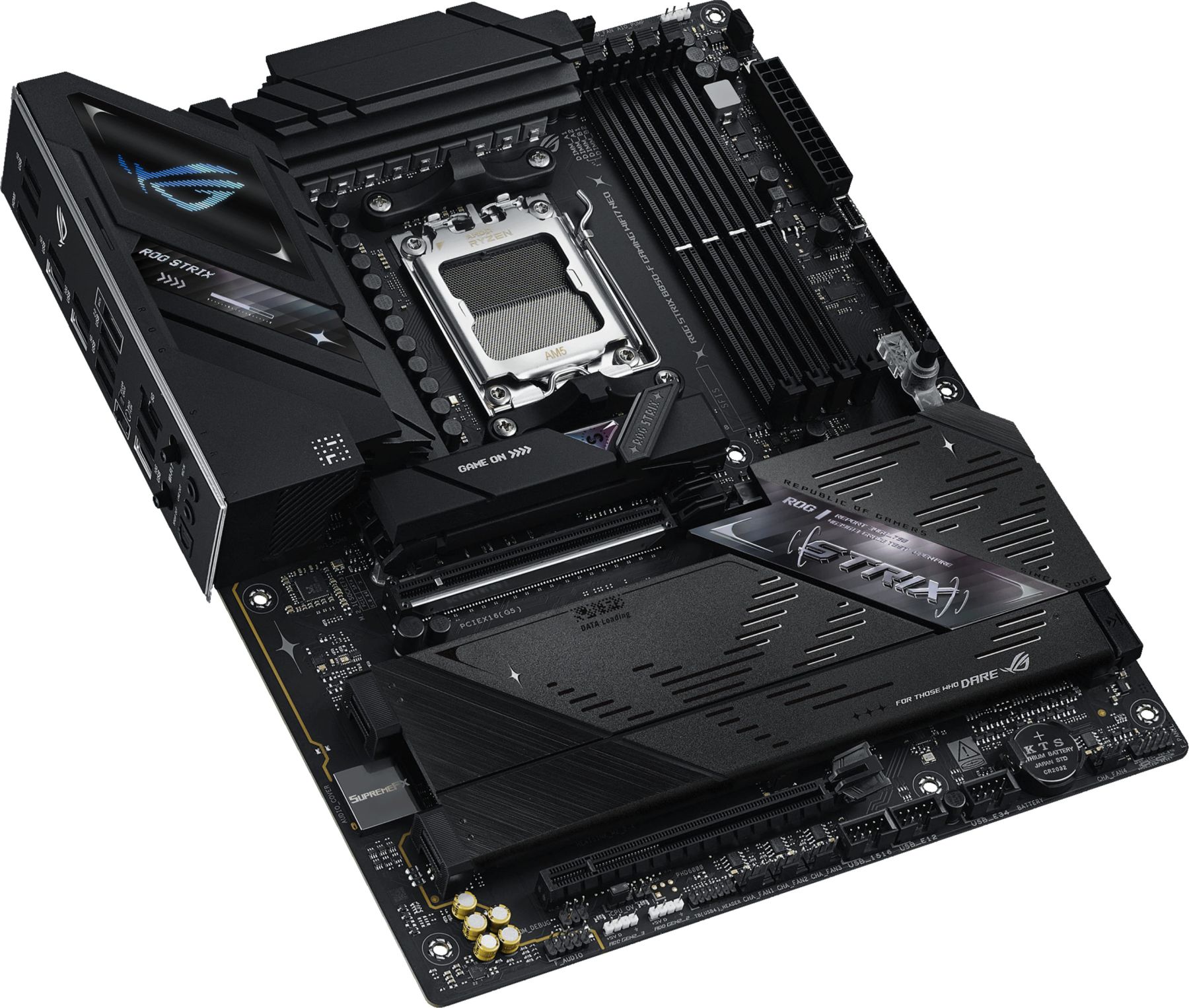

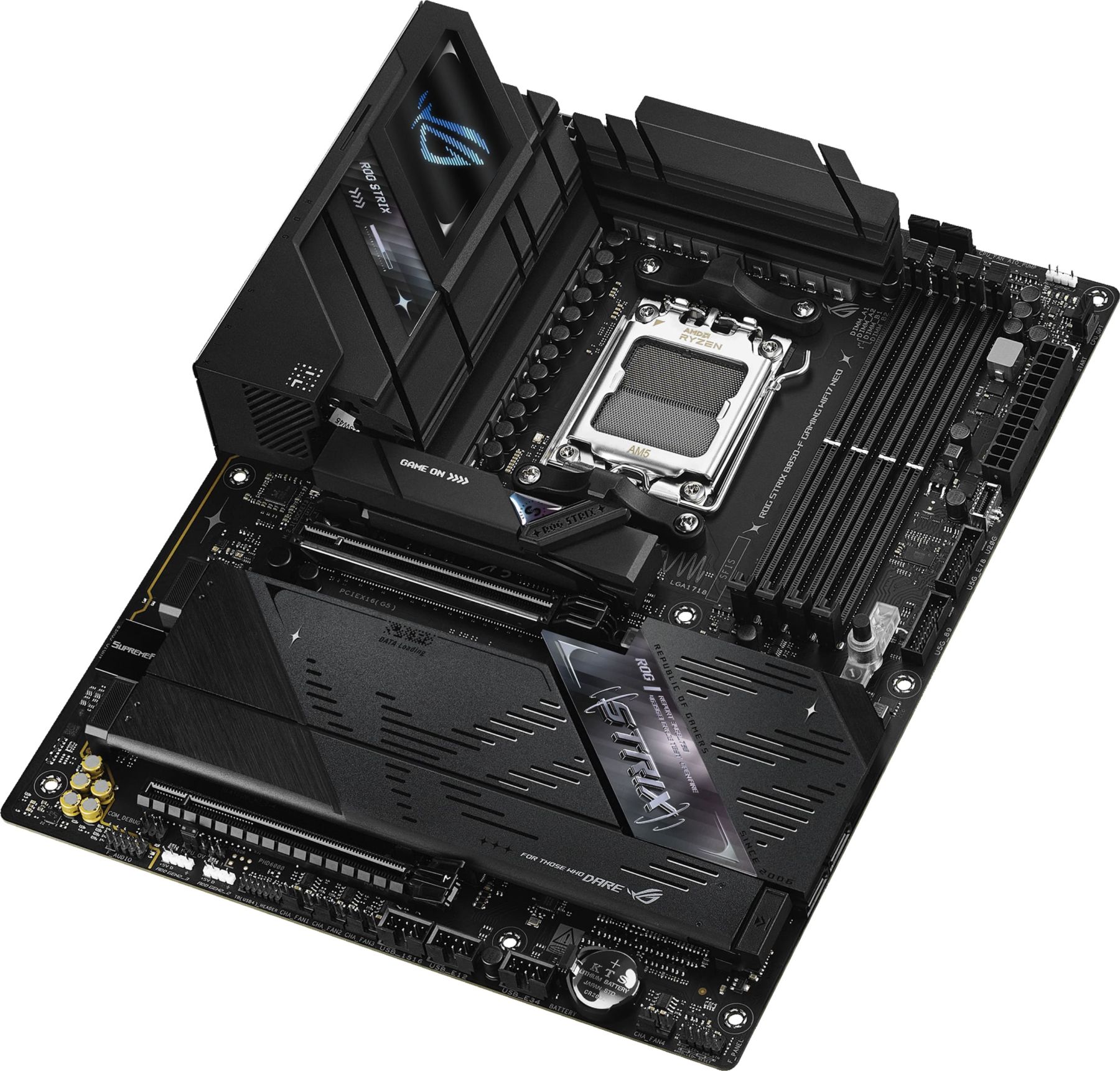

The ASUS ROG STRIX B850-F GAMING NEO is built on the AMD B850 chipset and supports AMD Ryzen processors for the AM5 platform. The motherboard is designed for gaming systems and performance-oriented PC configurations with support for modern interfaces and high-speed DDR5 memory.
The board includes four DDR5 DIMM slots with support for up to 256 GB of memory and speeds up to 9000+ MT/s in overclocking mode. AMD EXPO and ASUS AEMP technologies help optimize memory performance and improve system stability.
For storage, the motherboard provides four M.2 slots and two SATA 6 Gb/s ports. Two M.2 slots support PCIe 5.0 x4 SSDs for high-speed storage performance. The cooling system includes dedicated M.2 heatsinks and a backplate.

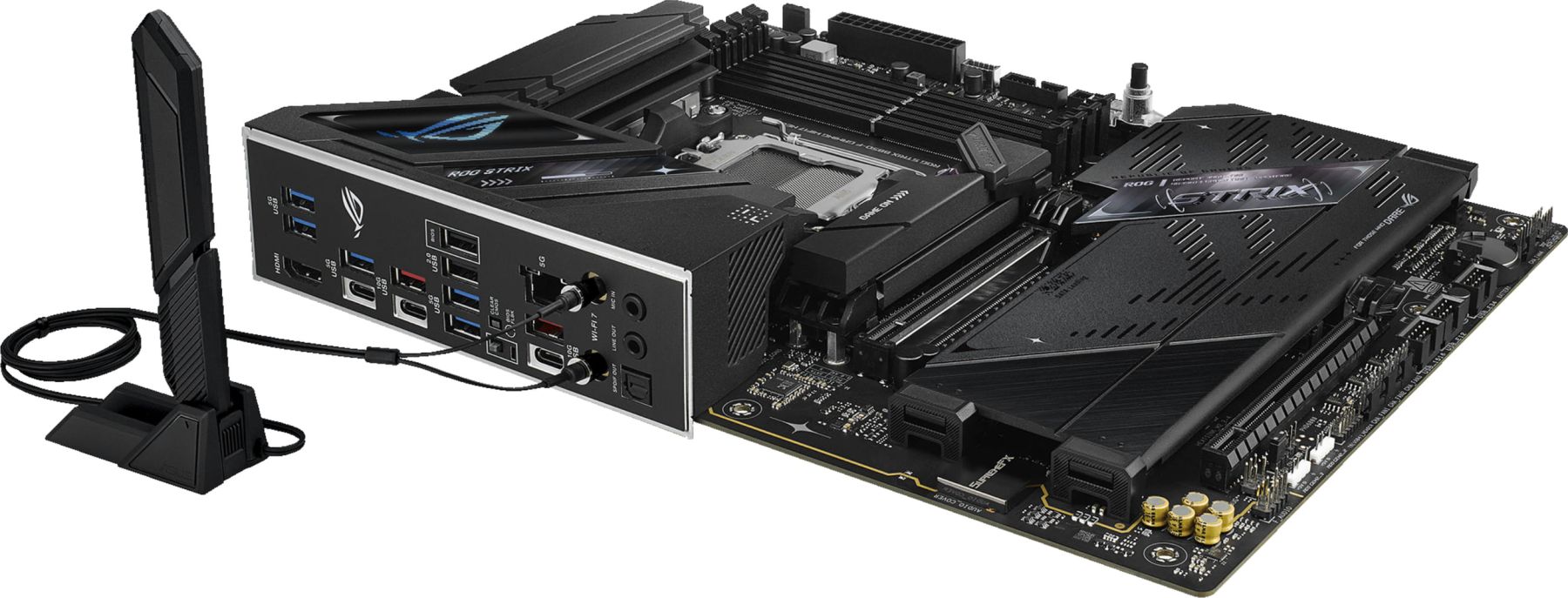

Networking capabilities include Realtek 5Gb Ethernet and Wi-Fi 7 with support for 2.4 GHz, 5 GHz, and 6 GHz frequency bands. Bluetooth 5.4 with LE Audio support is available for wireless peripherals and audio devices.
The ROG SupremeFX audio subsystem based on the ALC4080 codec supports 7.1-channel sound, 32-bit/384 kHz playback, and additional shielding for cleaner audio output. ASUS Q-Design features such as Q-Latch, Q-Release, BIOS FlashBack, and the pre-mounted I/O shield simplify installation and maintenance.
Technologies (used)
- AMD B850
- Socket AM5
- DDR5
- PCIe 5.0
- Wi-Fi 7
- Bluetooth 5.4
- ROG SupremeFX ALC4080
- ASUS Q-Design
- AMD EXPO
- ASUS AEMP
- Aura Sync
- AI Cooling II
- RAIDXpert2
- SafeSlot
Technical specifications
- Form factor: ATX
- Socket: AMD AM5
- Chipset: AMD B850
- Supported processors: AMD Ryzen 7000 / 8000 / 9000 Series
- Memory: DDR5, up to 256 GB
- Memory speed: up to 9000+ MT/s (OC)
- Memory slots: 4 × DIMM
- ECC support: yes
- Expansion slots: PCIe 5.0 x16, PCIe 4.0 x16
- Storage: 4 × M.2, 2 × SATA 6 Gb/s
- Networking: Realtek 5Gb Ethernet
- Wireless connectivity: Wi-Fi 7, Bluetooth 5.4

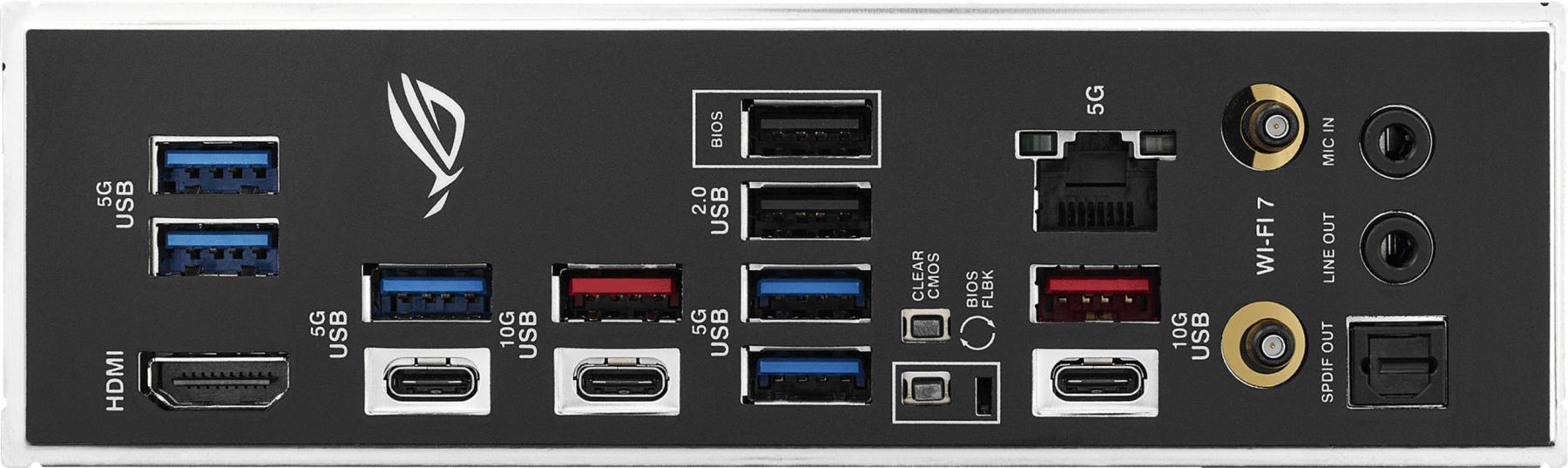

- USB: USB 20Gbps, USB 10Gbps, USB Type-C
- Video output: HDMI 2.1
- Audio: ROG SupremeFX 7.1 ALC4080
- BIOS: UEFI AMI BIOS
- Operating system: Windows 11
- Dimensions: 30.5 × 24.4 cm
Who it's for
- Gamers
- PC building enthusiasts
- Streamers
- Performance system users
- Content creators
- DDR5 and PCIe 5.0 PC builds
Conclusion
The ASUS ROG STRIX B850-F GAMING NEO combines the AMD AM5 platform with DDR5 support, modern networking technologies, and PCIe 5.0 storage connectivity. The motherboard is suitable for high-performance gaming systems and future-ready PC configurations with upgrade flexibility.
-

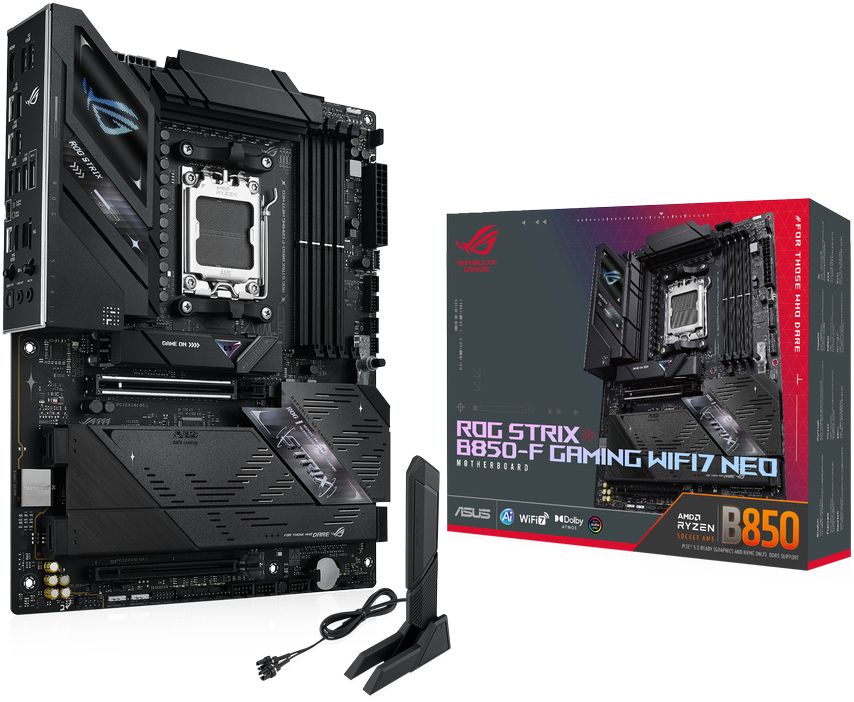

Box Contains:Quick start guide, M.2 Q-Slide package, ASUS WiFi Q-Antenna, кабелі SATA 6 Гбіт/с, гумові прокладки M.2, брелок ROG, комплект M.2 Q-Latch, набір гумових прокладок для задньої пластини M.2, набір наклейок ROG Strix, набір кабельних стяжок
-
Towards:gaming (overclocking)
-
Form Factor:ATX
-
For processors:AMD
-
Connection type:AM5
-
Processor compatibility:AMD Ryzen 9000/8000/7000
-
Northbridge (chipset):AMD B850
-
UEFI BIOS:Yes
-
Connector type:DDR5
-
Maximum operating frequency MHz:9000
-
The maximum amount of memory GB:256
-
Graphical interface:PCI-E x16 4.0, PCI-E x16 5.0
-
HDMI Output:Yes
-
Sound:7.1
-
Connection interface:SATA 3, M.2
-
SATA3 (6 Gb / s):2 ports
-
LAN (RJ-45):5 Gbit/s
-
Number of LAN-ports:1
-
LAN-Controller Model:Realtek®
-
USB 2.0 pcs:8
-
USB 3.2 Gen 1:10
-
USB 3.2 Gen 2:4
-
USB 3.2 Type-C pcs:4
-
M.2 connector:4
-
BIOS:Ami, UEFI
-
Support software RAID:Yes
-
Main power connector:24-pin
-
Module connector TPM:Yes
-
Аudiochip:ALC4080
-
3.5 mm jack (mini-Jack) pcs:2
-
Dimensions (HxW):305 x 244
-
S/P-DIF:Yes
-
DDR5:4 slots
-
Wi-Fi:Yes
-
Bluetooth:Yes
-
USB pcs:22
-
Features:ROG CPU-Z, BIOS Flashback, ASUS Q-Design, ASUS Thermal Solution, ASUS Exclusive Software, ASUS EZ DIY, Synchronization backlight Asus Aura Sync, Addressable Gen 2 header, S/PDIF out header, CPU fan header, CPU OPT Fan connector, AIO Pump header, Chassis Fan headers, SafeDIMM slot, Extreme Engine Digi+, Clear CMOS button, ASUS GlideX, GameFirst, Dolby Atmos, Fan Xpert 4, ASUS AI Advisor, Turbo V Core, Підтримка Windows 11, MLO Wizard, ASUS MB Manager
-
CPU Power:8-pin
-
Support for XMP:Yes
-
Slots PCI-E 16x pcs:2
-
Integrated processor:Yes
-
Support ECC:Yes
-
Optical output:Yes
-
Built-in video card support:Yes
-
Support for PCI Express 3.0:Yes
-
Mini PCI-E:Yes
