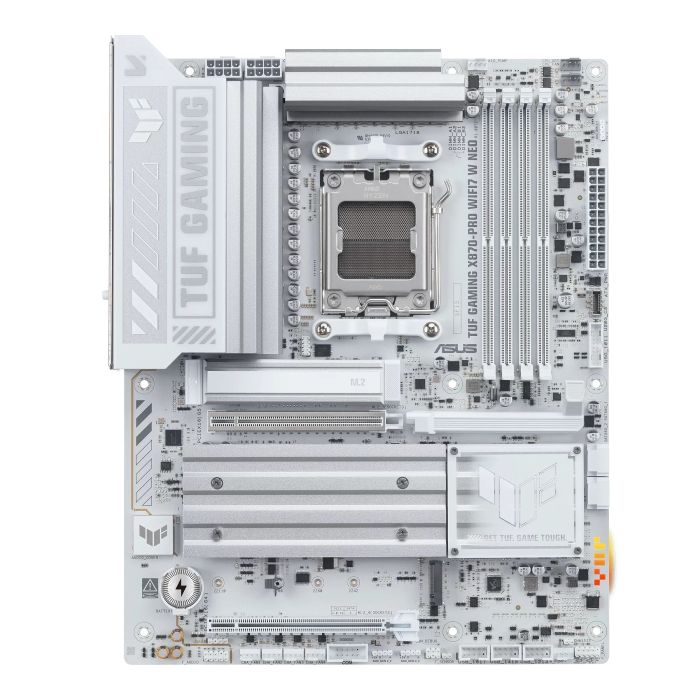

ASUS Motherboard TUF GAMING X870-PRO WIFI7 W NEO sAM5 X870 4xDDR5 M.2 HDMI USB Type-C Wi-Fi BT ATX white
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Features
The ASUS TUF GAMING X870-PRO WIFI7 W NEO motherboard, based on the AMD X870 chipset in white color, supports Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. It features a 16+2+1 (80A) power stage design with enlarged VRM heatsinks for consistent performance under sustained loads. Dual PCIe 5.0 M.2 slots and a PCIe 5.0 x16 slot provide high-bandwidth options for storage and graphics.
Memory supports up to 256 GB DDR5 with NitroPath DRAM, DIMM Fit Pro, and AEMP for reliable high-frequency overclocking. Networking includes Realtek 5 Gb/s Ethernet with TUF LANGuard and Wi-Fi 7 for low-latency, high-throughput connections.

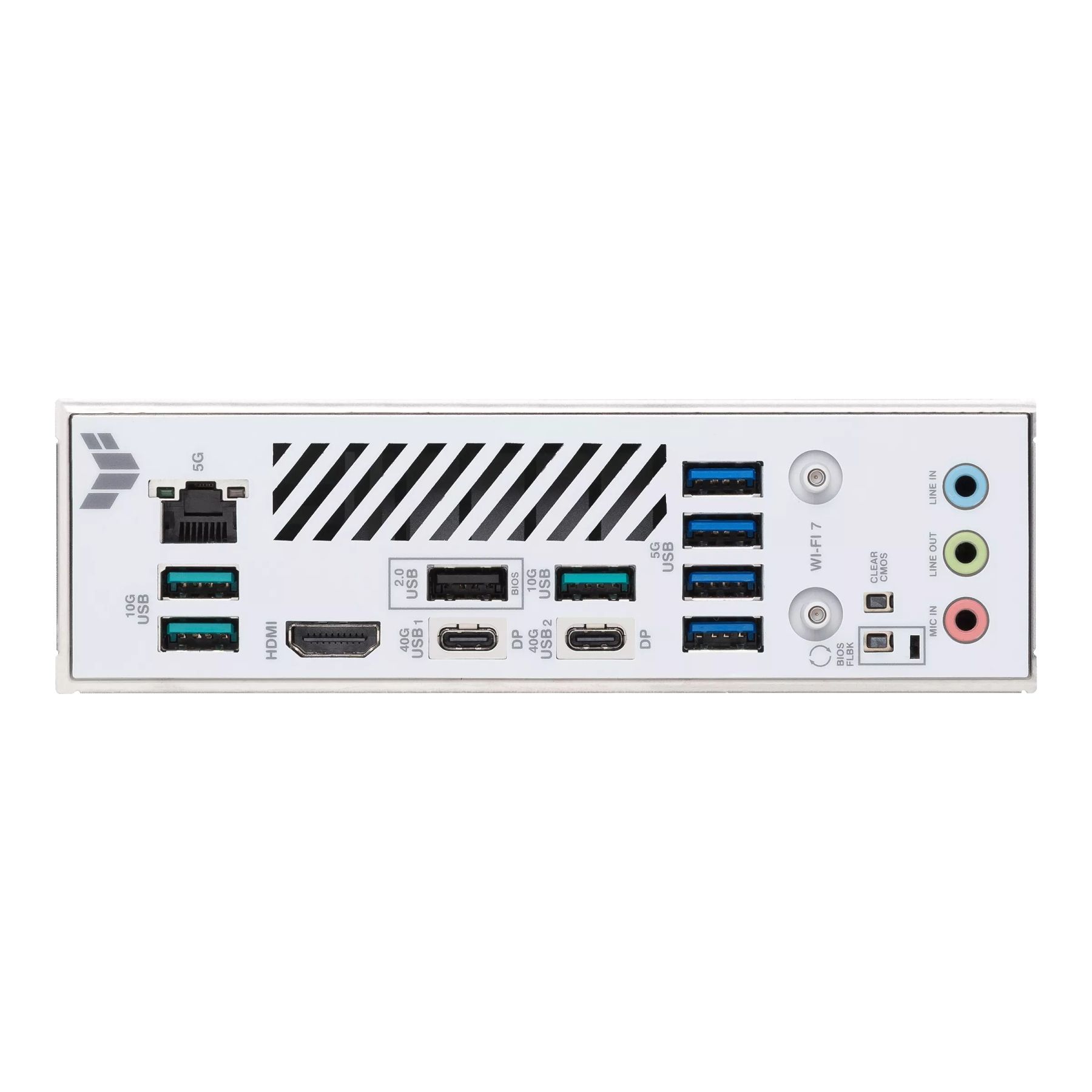

The rear I/O offers ten USB ports, including dual USB4 40 Gb/s with display support, while front headers include USB 20 Gb/s Type-C with up to 30 W fast charging. Realtek ALC1220P audio with dedicated layers and DTS processing delivers clear, high-SNR sound.
Thermal management uses expanded VRM and M.2 heatsinks along with multiple fan and pump headers. Q-Design features like M.2 Q-Latch and PCIe Q-Release simplify installation, while three addressable RGB Gen 2 headers enable Aura Sync lighting.
Technologies (used)
- ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, TUF LANGuard, SafeSlot, stainless-steel back I/O).
- ASUS Q-Design (M.2 Q-Latch, M.2 Q-Release, PCIe Q-Release, Q-Antenna, Q-Dashboard, Q-LED).
- ASUS Thermal Solution (enlarged VRM and M.2 heatsinks).
- Aura Sync (three addressable RGB Gen 2 headers).
- AMD RAIDXpert2 (RAID 0/1/5/10).
- Armoury Crate with Fan Xpert 4, AI Cooling II, WiFi Q-Antenna, and MLO Wizard.
- AI Overclocking, AI Cache Boost, AI Advisor, Dynamic OC Switcher, Core Flex, Asynchronous Clock.
Technical specifications
- Socket: AMD AM5.
- Chipset: AMD X870.
- Memory: 4 × DDR5 DIMM, up to 256 GB, up to 9600+ MT/s (OC).
- Graphics: 1 × HDMI 2.1, 2 × USB4 Type-C with DisplayPort.
- Expansion slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16 (x4).
- Storage: 4 × M.2 (2 × PCIe 5.0 x4, 2 × PCIe 4.0 x4), 2 × SATA 6 Gb/s.
- Networking: Realtek 5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4.
- USB: 10 rear (2 × USB4 40 Gb/s, 3 × 10 Gb/s, 4 × 5 Gb/s, 1 × 2.0), up to 9 front (including 20 Gb/s Type-C 30 W).
- Audio: Realtek ALC1220P, up to 32-bit/192 kHz.
- Form factor: ATX (30.5 × 24.4 cm).
- BIOS: 64 Mb UEFI AMI.
- OS: Windows 11.
Who it's for
- Gamers building reliable mid-to-high-end systems on Ryzen 9000.
- Users needing fast Wi-Fi 7 and 5 Gb/s Ethernet connectivity.
- Enthusiasts with moderate DDR5 and PCIe 5.0 overclocking.
- Builders preferring white aesthetics with enhanced component protection.
Conclusion
The ASUS TUF GAMING X870-PRO WIFI7 W NEO combines durable construction, modern interfaces, and tuning tools in a white finish. It fits gaming and productivity builds where reliability, rapid connectivity, and straightforward overclocking matter without excessive complexity.
-
Box Contains:M.2 Screw Package, M.2 Rubber Package, TUF GAMING Sticker, Quick start guide, ASUS WiFi Q-Antenna, кабелі SATA 6 Гбіт/с
-
Towards:gaming (overclocking)
-
Form Factor:ATX
-
For processors:AMD
-
Connection type:AM5
-
Processor compatibility:AMD Ryzen 9000/8000/7000
-
Northbridge (chipset):AMD X870
-
Connector type:DDR5
-
The maximum amount of memory GB:256
-
Graphical interface:PCI-E x16 5.0
-
HDMI Output:Yes
-
Sound:7.1
-
Connection interface:SATA 3, M.2
-
SATA3 (6 Gb / s):2 ports
-
LAN (RJ-45):5 Gbit/s
-
Number of LAN-ports:1
-
LAN-Controller Model:Realtek®
-
USB 2.0 pcs:4
-
USB 3.2 Gen 1:5
-
USB 3.2 Gen 2:3
-
USB 3.2 Type-C pcs:3
-
M.2 connector:4
-
BIOS:UEFI AMI
-
Support software RAID:Yes
-
Аudiochip:ALC1220P
-
Dimensions (HxW):305 x 244
-
S/P-DIF:Yes
-
DDR5:4 slots
-
Wi-Fi:Yes
-
Bluetooth:Yes
-
USB pcs:19
-
Features:Digi+ VRM, ASUS Thermal Solution, ASUS Exclusive Software, ASUS EZ DIY, ASUS TUF PROTECTION, Synchronization backlight Asus Aura Sync, S/PDIF out header, CPU fan header, Front panel audio connector, COM port header, CPU OPT Fan connector, AIO Pump header, Chassis Fan headers, Chassis Intrusion Header, Clear CMOS button, ASUS GlideX, ASUS DriverHub, W_PUMP+ connector, Fan Xpert 4, ASUS AI Advisor, Turbo V Core, Підтримка Windows 11, MLO Wizard
