MSI Motherboard PRO A620AM-B EVO sAM5 A620 2xDDR5 M.2 HDMI D-Sub mATX

Features The MSI PRO A620AM-B EVO motherboard delivers stable performance with AMD Ryzen 9000, 8000, and 7000 series processors, enabling compact builds for everyday tasks. DDR5 slots with overclocking support and AMD EXPO technology allow memory performance optimization based on configuration. Integrated HDMI and VGA ports simplify monitor connections without an extra graphics card, while the M.2 slot with PCIe 4.0 x4 speeds up data access on fast drives.

In usage scenarios, this board fits office computers requiring reliable multitasking or home systems focused on media and light gaming. Features like Core Boost and Memory Boost aid efficient multi-core operation and clean data signals. The chipset heatsink design reduces noise and dust buildup, beneficial for long-term use.

The Realtek ALC897 audio codec provides 7.1-channel sound, with an isolated audio connector structure maintaining signal clarity. RAID 0 and 1 support for SATA devices enables arrays for speed or data security. RGB lighting connectors allow integration into custom builds with visual effects.

Technologies (used)

• Core Boost: premium layout for multi-core processor support.
• Memory Boost: technology for pure data signals in DDR5 memory.
• Lightning Gen 4: M.2 slot with PCIe 4.0 x4 for fast storage.
• Audio Boost: studio-grade sound with isolated structure.
• Mystic Light Extension: headers for controlling RGB lighting.
• EZ Debug LED: indicators for troubleshooting issues.

Technical specifications

• Part number: 911-7E36-001
• Series: PRO
• Chipset: AMD A620
• Socket: AM5
• Processor support: AMD Ryzen 9000/8000/7000 series
• Memory: 2x DDR5, up to 128 GB, overclock up to 6800+ MT/s
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 1x M.2 PCIe 4.0 x4, 2x SATA 6G
• Audio: Realtek ALC897, 7.1-channel
• Network: Realtek RTL8125 2.5G LAN
• USB ports: 6x USB 2.0, 7x USB 5Gbps (including Type-C)

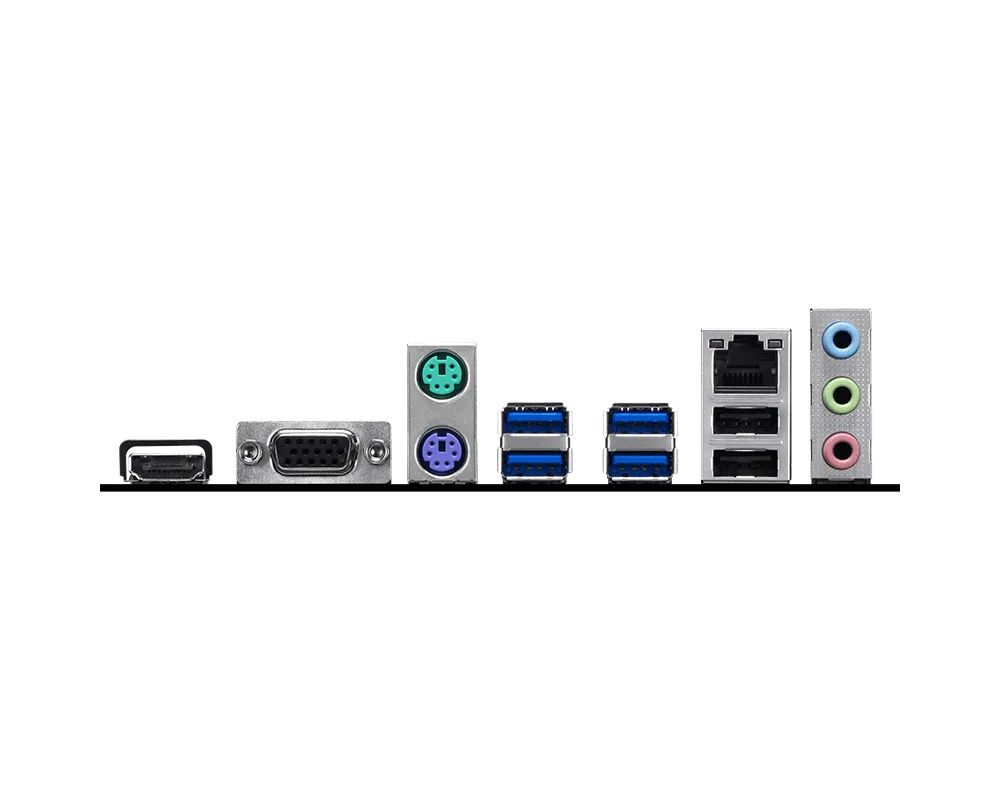

• Graphics: HDMI 2.1 (4K 60Hz), VGA
• Form factor: mATX, 218 x 243.84 mm
• OS: Windows 11/10 64-bit

Who it's for

• Software developers needing a stable platform for testing.
• Office workers focused on multitasking and document handling.
• Home users for media centers or light gaming.
• PC builders targeting budget configurations with overclocking.
• System admins for small-scale servers.

Conclusion This motherboard combines essential features with expansion options, making it a practical choice for mid-level system builds without unnecessary complexity.
