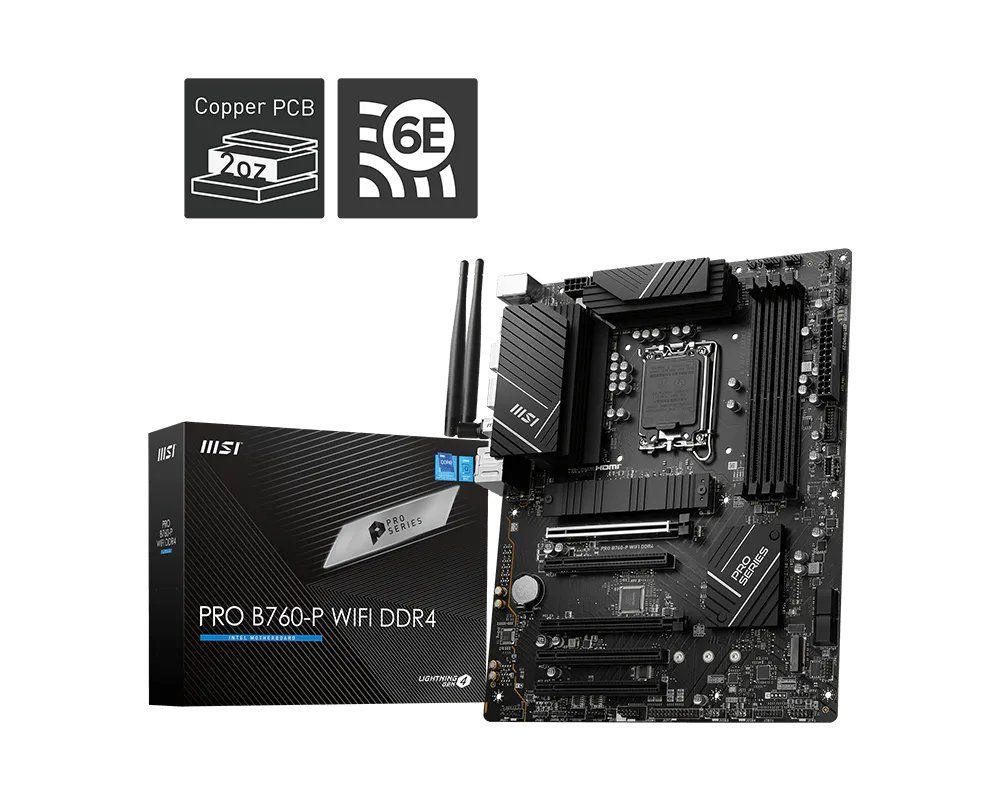

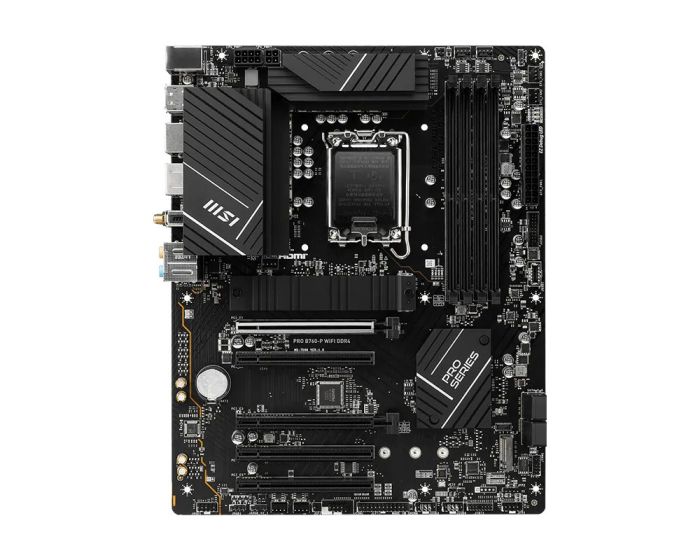

MSI Motherboard MSI PRO B760-P WIFI DDR4 s1700 B760 4xDDR4 M.2 HDMI DP ATX

Features

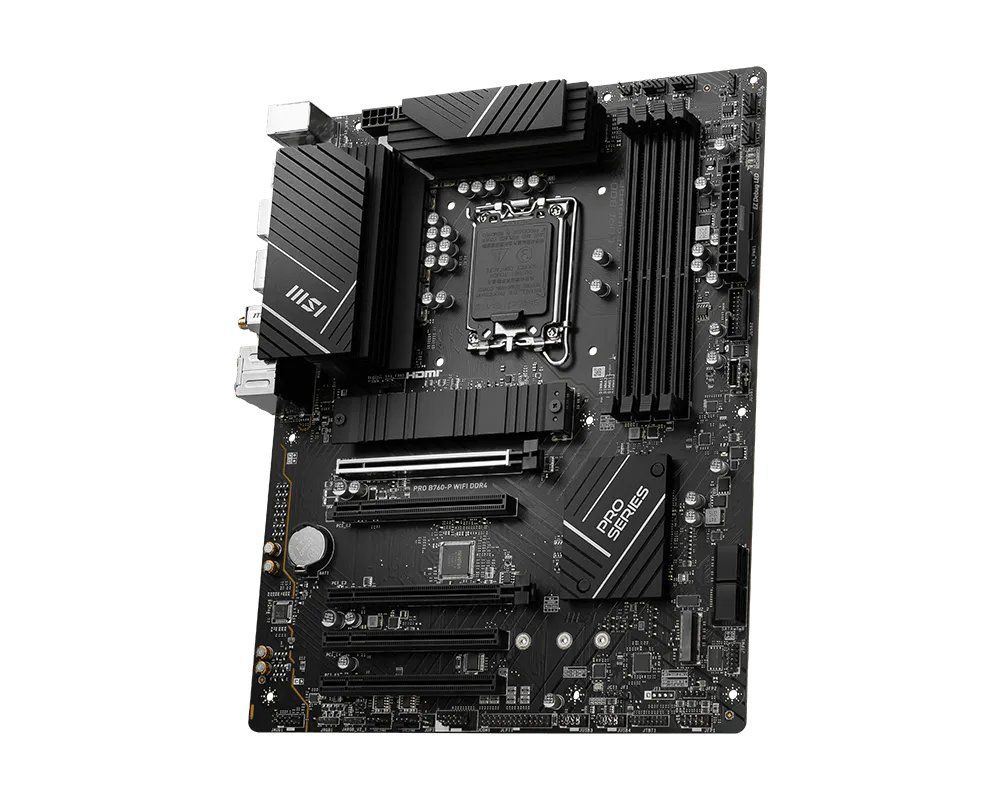

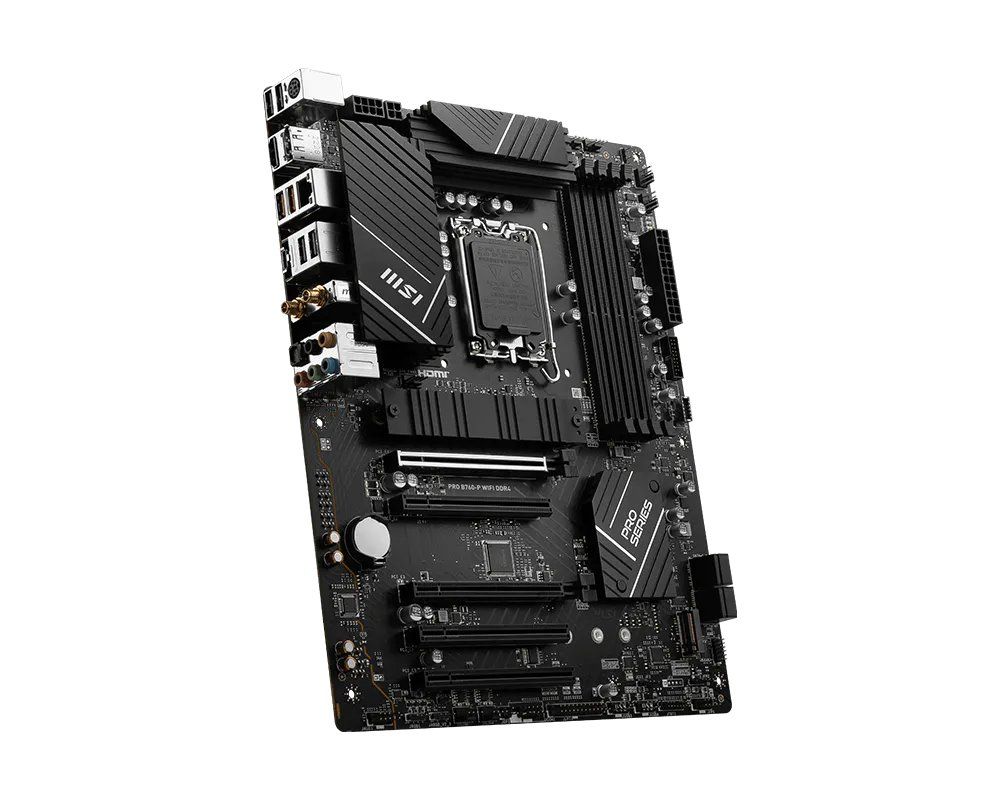

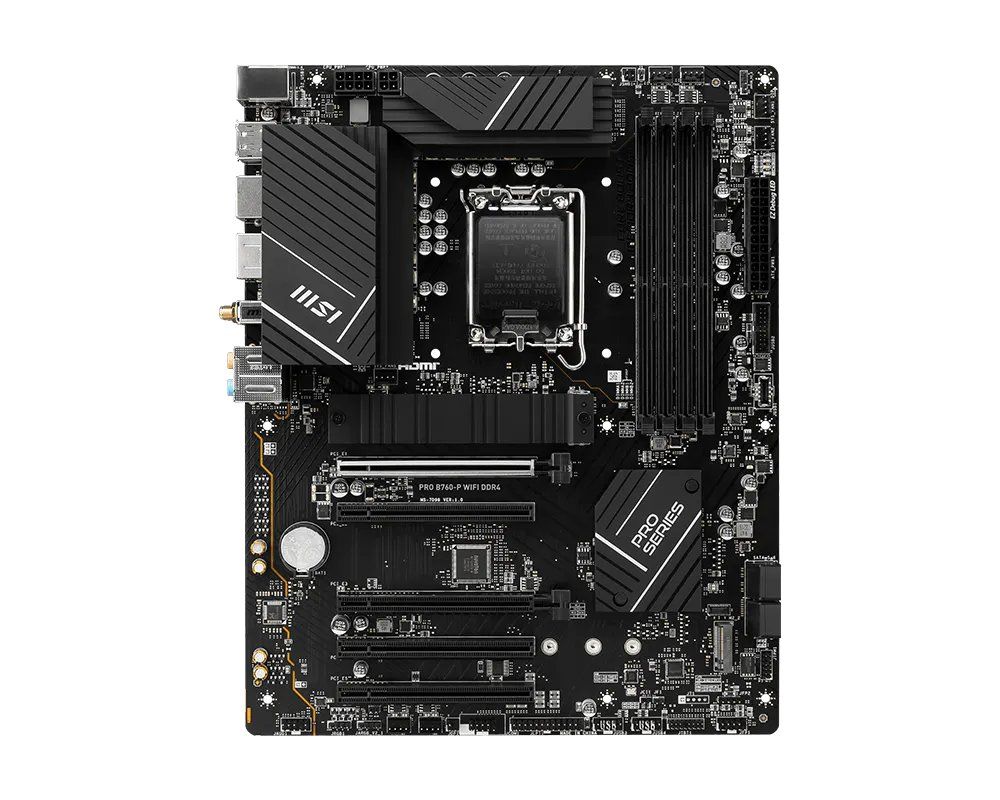

The MSI PRO B760-P WIFI DDR4 motherboard features a 12+1+1 Duet Rail Power System with P-PAK power stages, a digital PWM controller, and dual 8 + 4-pin CPU power connectors. Core Boost optimizes CPU power delivery, while Memory Boost improves memory stability and compatibility.

The cooling system includes an extended VRM heatsink, 7 W/m·K thermal pads for MOSFETs and chokes, and an M.2 Shield Frozr heatsink for SSD cooling. The board also supports liquid cooling systems and flexible fan control through BIOS or MSI Center software.

A reinforced PCIe 4.0 x16 Steel Armor slot provides secure support for modern graphics cards. Two M.2 slots support high-speed NVMe SSDs, while the second slot is also compatible with SATA-based M.2 drives. The 6-layer PCB with 2 oz thickened copper enhances signal integrity and heat dissipation.

The motherboard includes a 2.5G Ethernet controller, integrated Wi-Fi 6E, Bluetooth 5.3, and high-speed USB 3.2 Gen 2 Type-A and Type-C ports. The Audio Boost design features an isolated audio circuit with premium components for clear sound reproduction.

Technologies Used

• Optimized CPU power delivery Core Boost
• Enhanced memory stability Memory Boost
• Dual-rail power delivery Duet Rail Power System
• Power stage modules P-PAK
• Digital power management Digital Power Design
• Extended VRM heatsink Extended Heatsink
• SSD cooling solution M.2 Shield Frozr
• Intelligent cooling management FROZR AI Cooling
• Cooling profile adjustment Smart Fan Control
• High-speed storage interface Lightning Gen 4 M.2
• Reinforced graphics card slot PCIe Steel Armor
• High-speed USB connectivity Intel Turbo USB 3.2 Gen 2
• Isolated audio circuitry Audio Boost
• Wireless networking Wi-Fi 6E
• Memory overclocking profiles Intel® XMP
• Hardware status diagnostics EZ Debug LED

Specifications

• Brand: MSI
• Model: PRO B760-P WIFI DDR4
• Part Number: 911-7D98-044
• Series: PRO
• Form Factor: ATX
• Chipset: Intel B760
• Socket: LGA1700
• Supported Processors: Intel® Core™ 12th, 13th and 14th Gen, Intel® Pentium® Gold, Intel® Celeron®
• Memory: DDR4, up to 128 GB, up to 5333+ MHz (OC)
• Power Design: 12+1+1 Duet Rail Power System, 8 + 4-pin CPU power connectors
• Expansion Slots: PCIe 4.0 x16, PCIe 4.0 x4, PCIe 3.0 x1
• Storage: 2 × M.2 PCIe 4.0, 4 × SATA 6 Gb/s
• Networking: 2.5G Ethernet, Wi-Fi 6E, Bluetooth 5.3

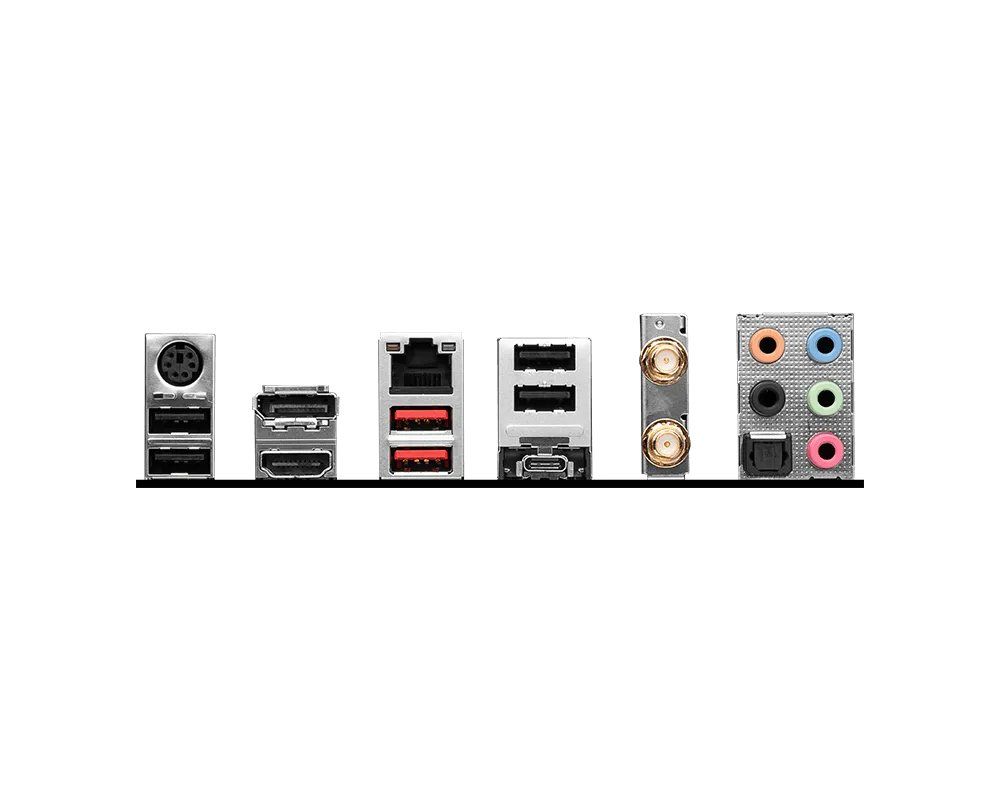

• USB: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, USB 2.0
• Video Outputs: HDMI 2.1, DisplayPort 1.4
• Audio: Realtek ALC897, Audio Boost, 7.1-channel HD Audio
• Cooling: Extended Heatsink, M.2 Shield Frozr, 7 W/m·K thermal pads
• PCB Design: 6-layer PCB with 2 oz thickened copper

Who Is It For

• Users building a high-performance desktop PC
• Intel LGA1700 workstation configurations
• Systems with PCIe 4.0 graphics cards
• Builds using high-speed NVMe SSDs
• Users requiring Wi-Fi 6E and 2.5G Ethernet connectivity
• DDR4-based system upgrades

Conclusion

The MSI PRO B760-P WIFI DDR4 motherboard combines the Intel LGA1700 platform with a robust power design, efficient cooling, and a wide range of modern connectivity options. Support for DDR4 memory, PCIe 4.0, Wi-Fi 6E, Bluetooth 5.3, and 2.5G Ethernet makes it a solid foundation for high-performance home and professional desktop systems.
