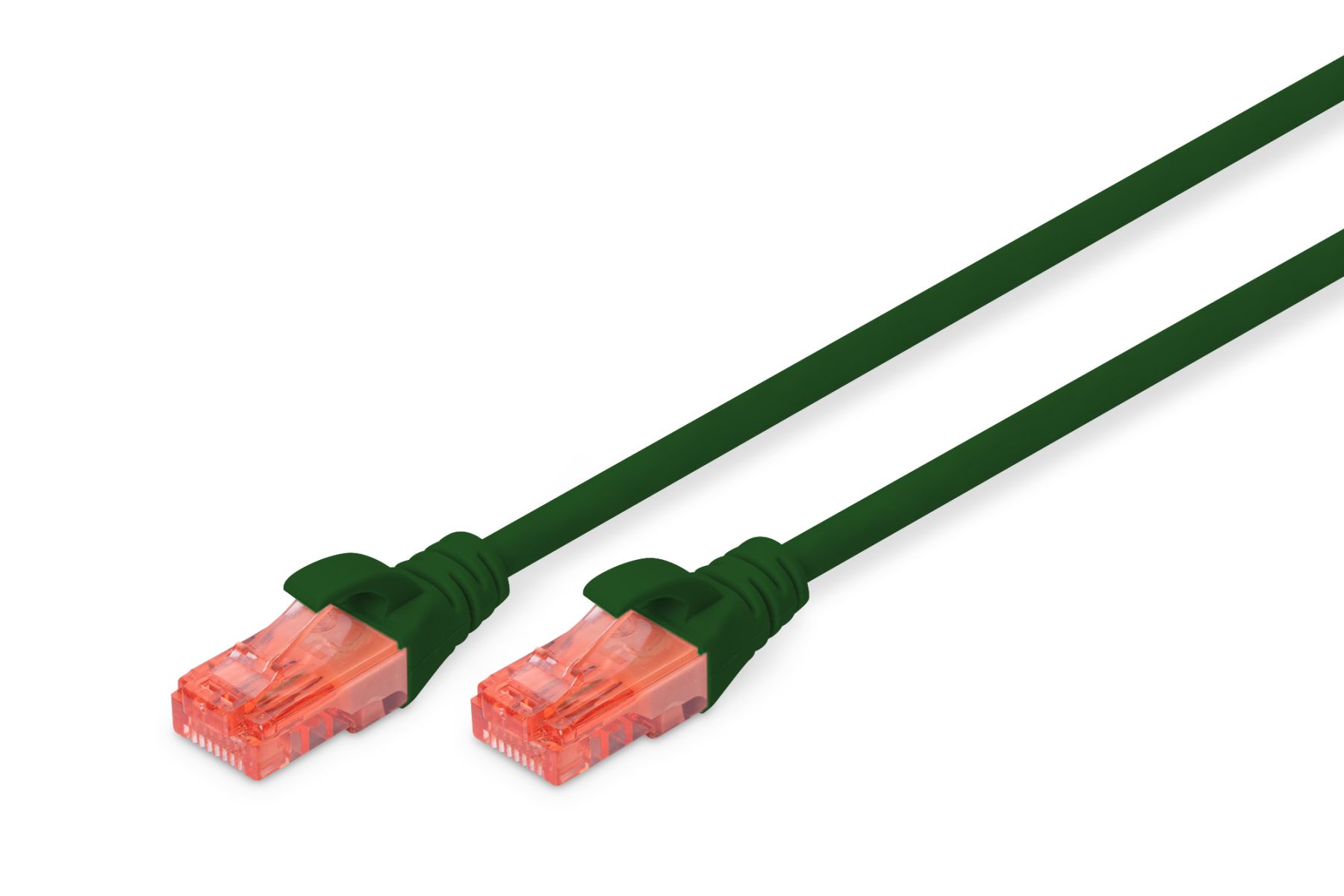

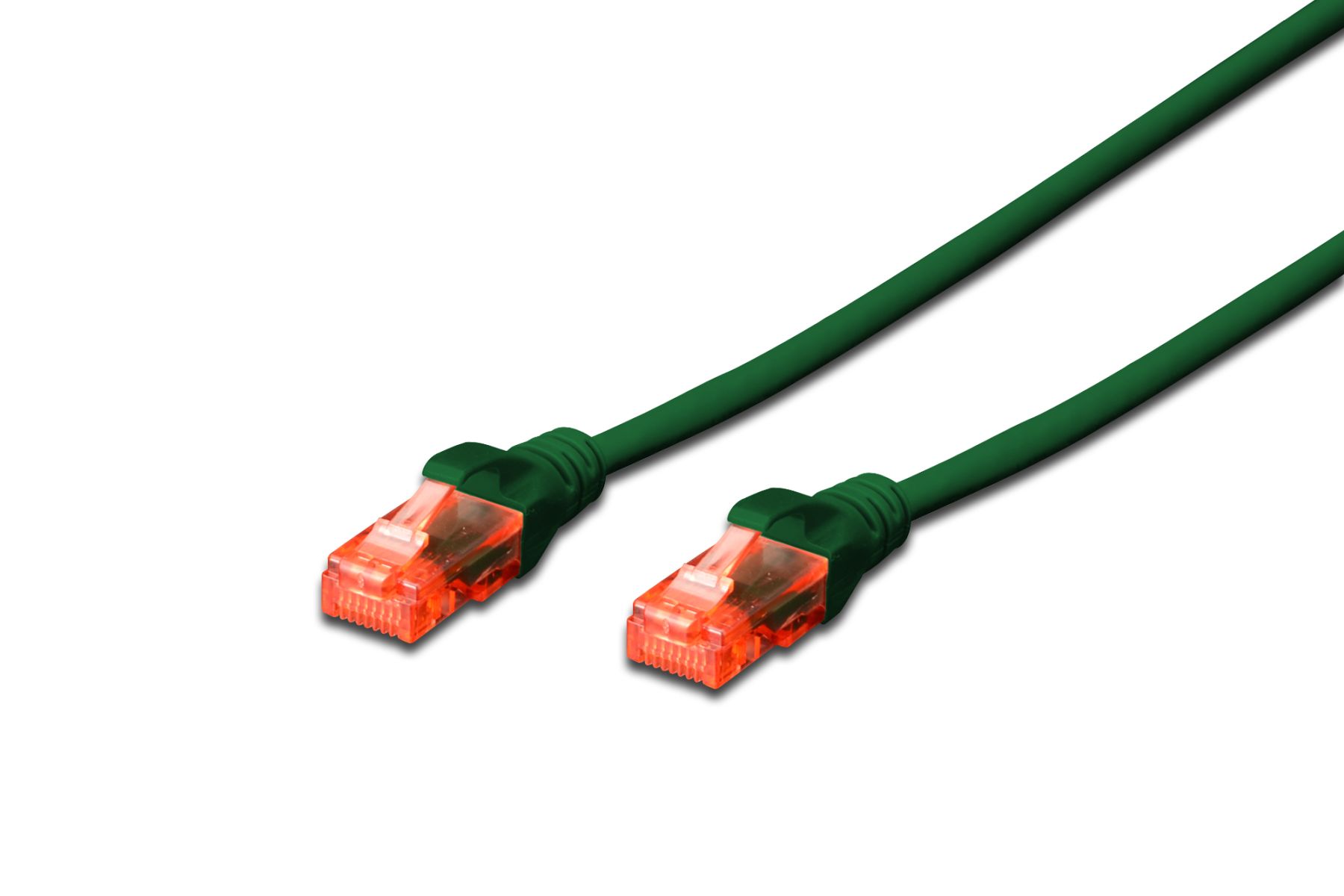

DIGITUS CAT 6 U-UTP patch cord, Cu, LSZH AWG 26/7, length 0.25 m, color green

Features

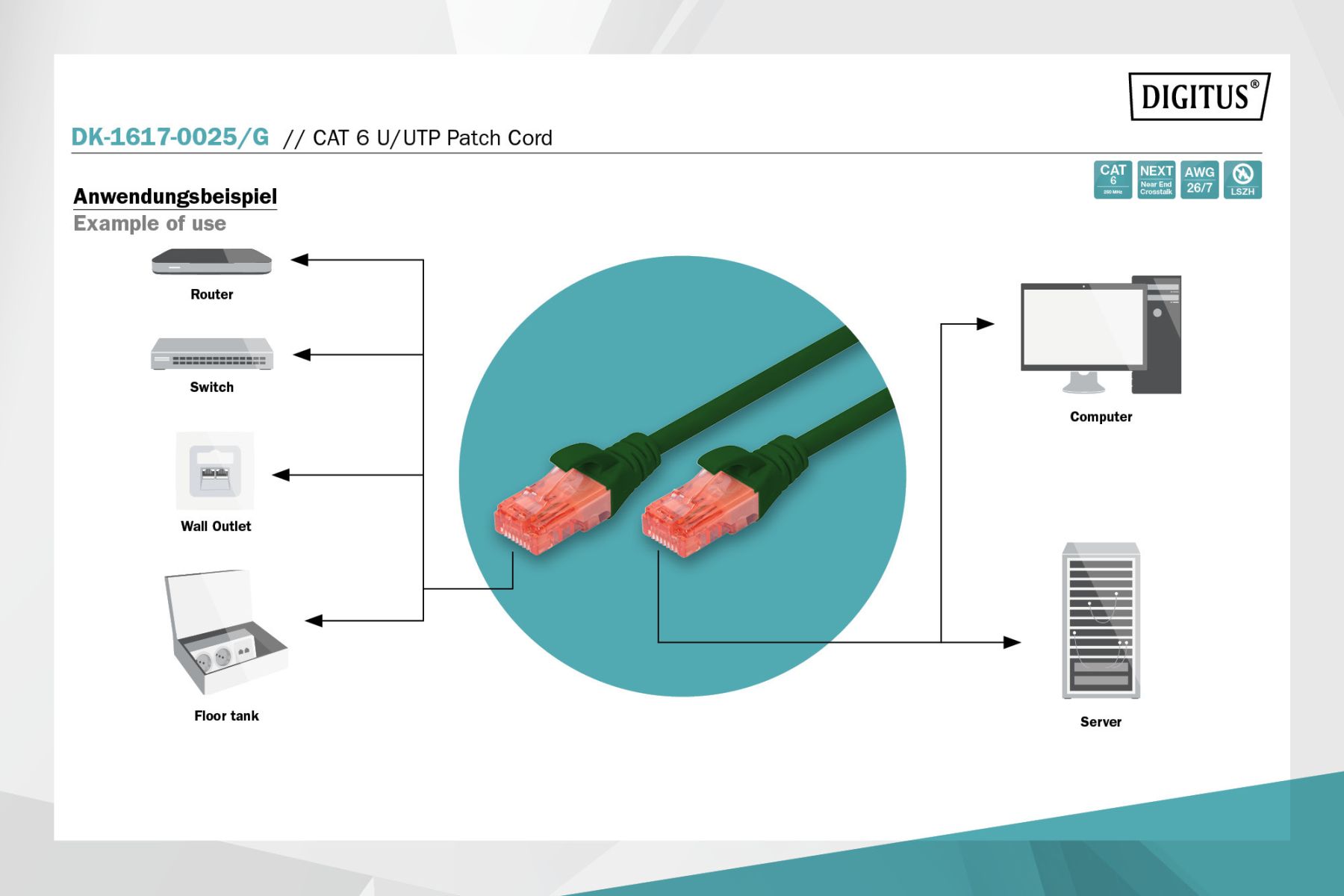

The DIGITUS CAT 6 UTP patch cord is designed for structured cabling systems where stable data transmission, reliable connectivity, and compliance with modern networking standards are essential. It is suitable for connecting switches, routers, servers, patch panels, computers, and other network devices.

The cable complies with ISO/IEC 11801 and DIN EN 50173 CAT 6 specifications. It has been tested for operation up to 250 MHz, supporting dependable performance in Gigabit Ethernet and other high-speed networking applications.

Its stranded AWG 26/7 copper conductor combines flexibility with consistent electrical performance. The unshielded U/UTP design makes the cable suitable for most indoor networking environments with controlled electromagnetic interference.

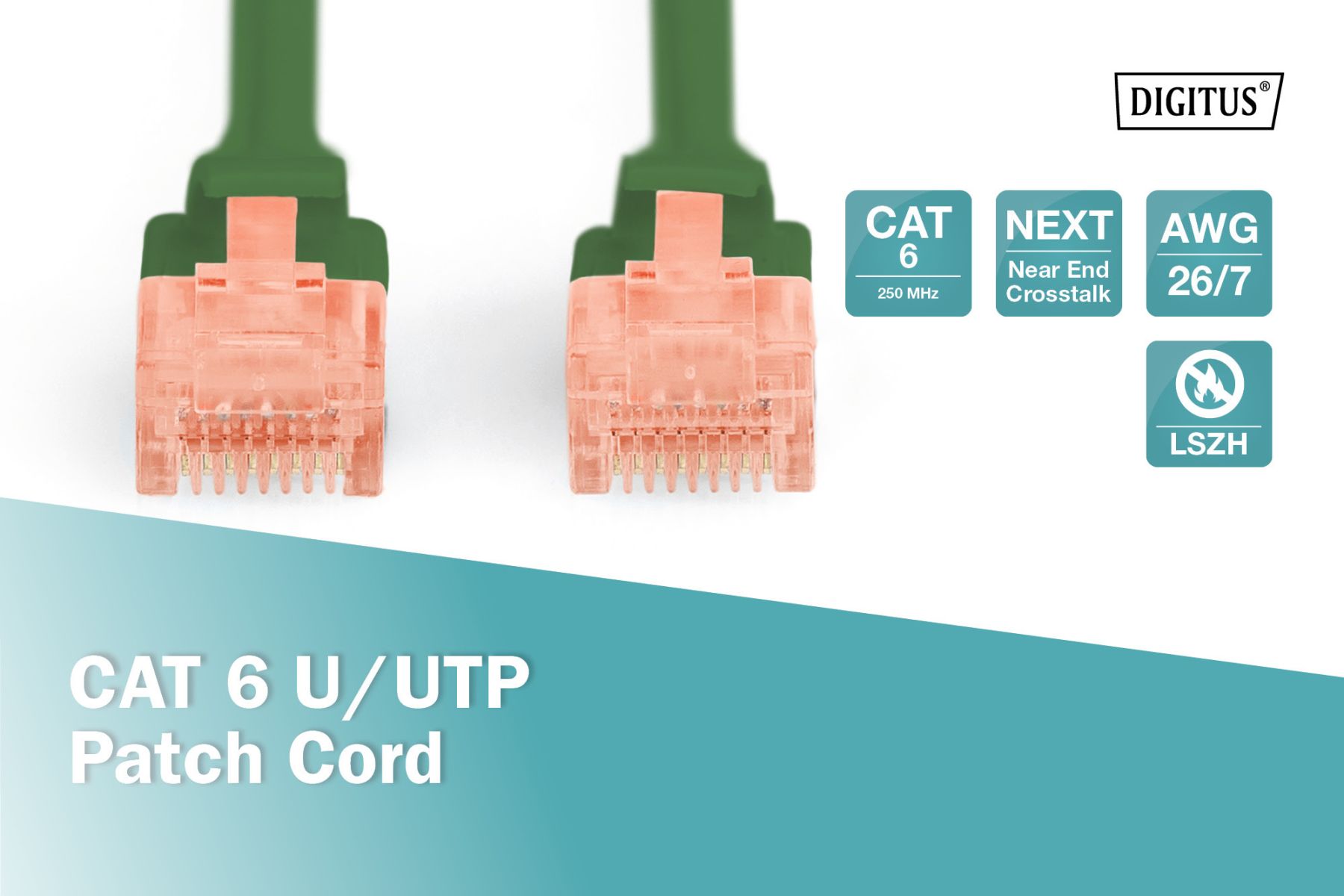

Each RJ45 connector features a molded boot with strain relief and bend protection. A latch protection design helps prevent accidental damage during installation and maintenance, while length markings on the connector boots simplify cable identification.

The LSZH (Low Smoke Zero Halogen) jacket reduces smoke emission and eliminates halogen compounds in the event of overheating, making the cable suitable for offices, server rooms, and public buildings.

Technologies (used)

• CAT 6 Class E compliance
• ISO/IEC 11801 compliant
• DIN EN 50173 compliant
• Tested up to 250 MHz
• U/UTP unshielded construction
• AWG 26/7 stranded copper conductor
• RJ45 (8P8C) connectors
• Molded strain-relief boots
• Bend protection
• Connector latch protection
• LSZH (Low Smoke Zero Halogen) jacket
• Cable length identification on connector boots

Technical specifications

• Product: DIGITUS CAT 6 UTP Patch Cord
• Category: CAT 6
• Cable type: U/UTP (Unshielded)
• Bandwidth: up to 250 MHz
• Length: 0.25 m
• Color: Green
• Conductor material: Copper (Cu)
• Conductor construction: AWG 26/7

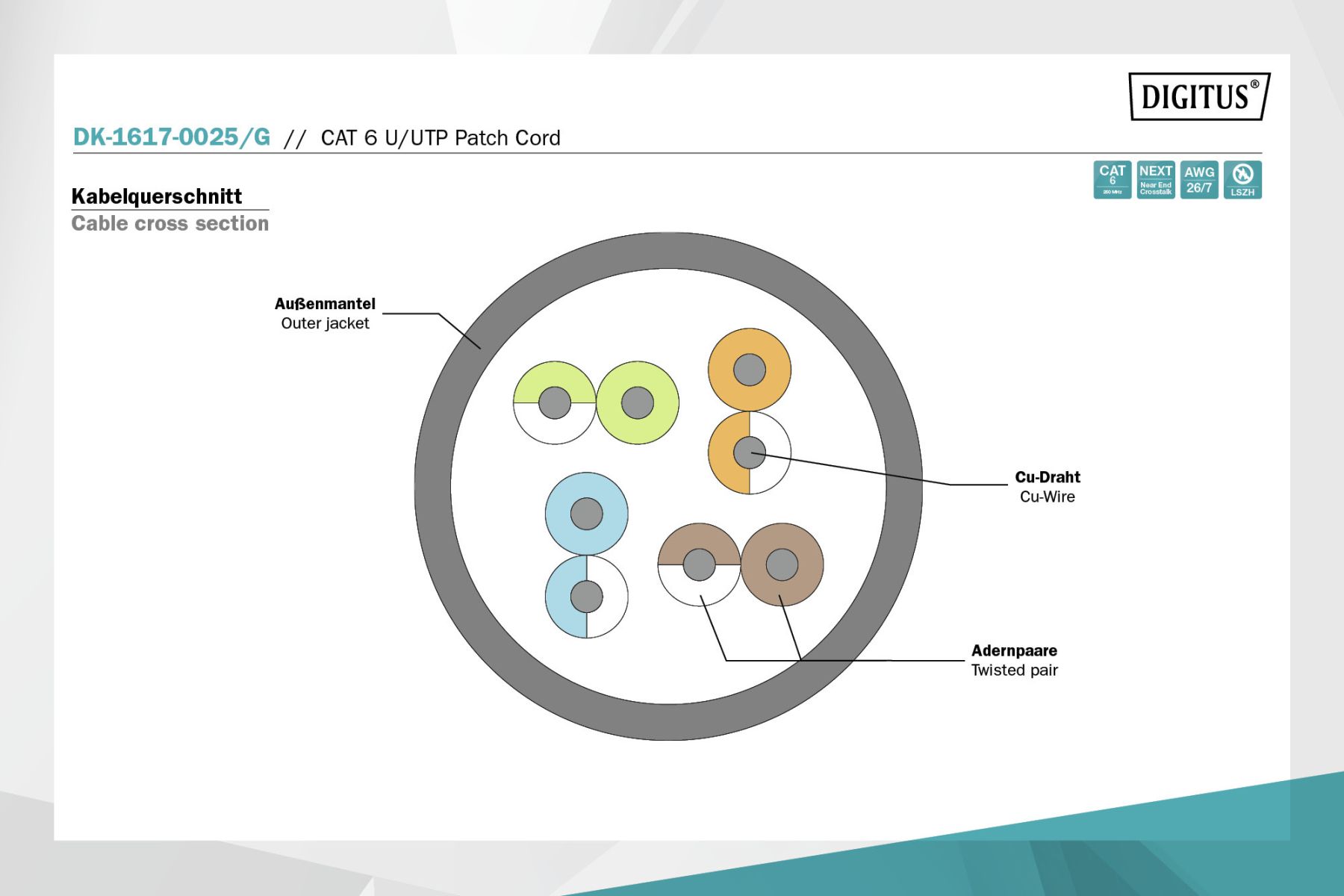

• Pair configuration: 4 × 2 twisted pairs
• Wiring configuration: 1:1

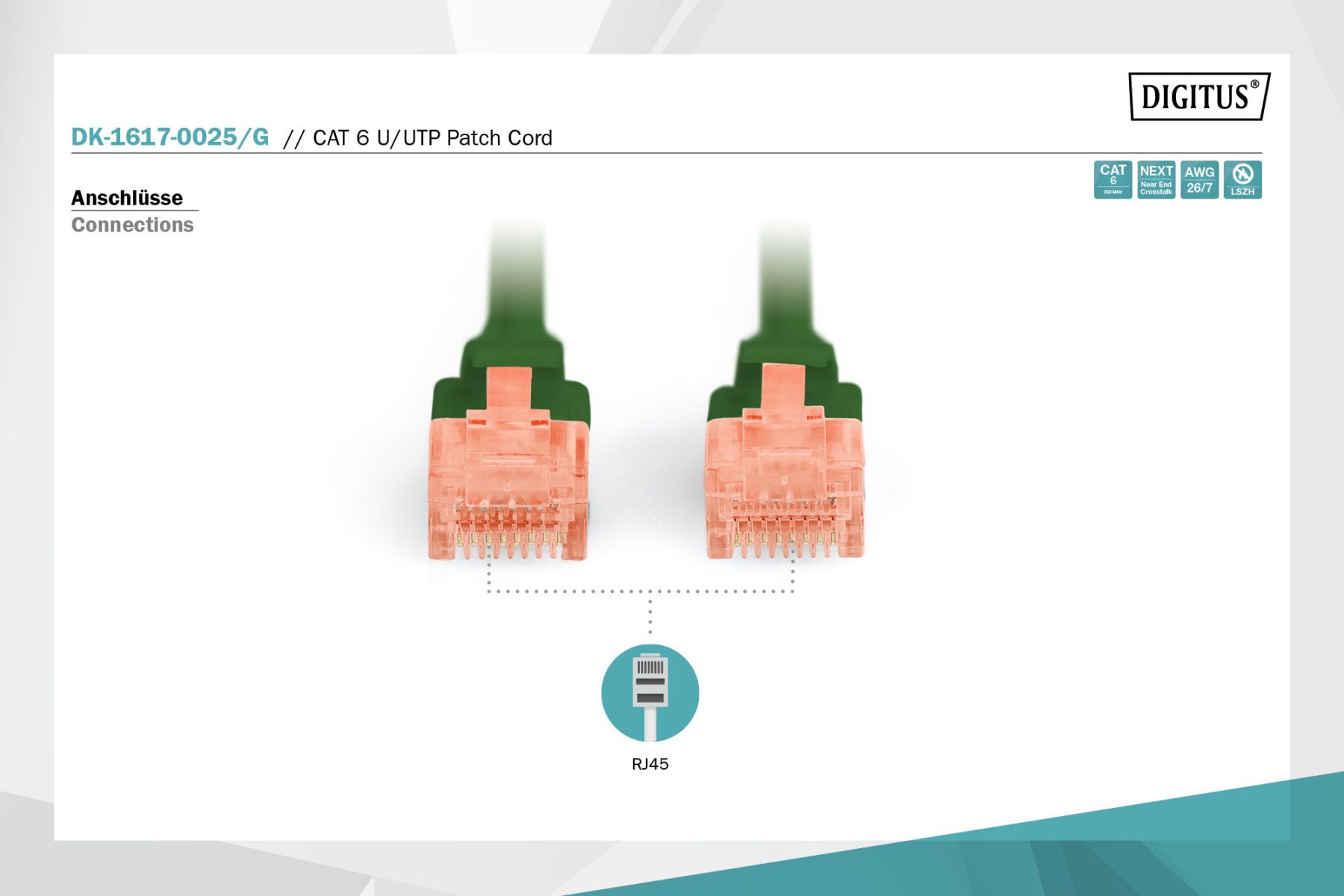

• Connector 1: RJ45 (8P8C)
• Connector 2: RJ45 (8P8C)
• Jacket material: LSZH (LSOH)
• Bend protection: Yes
• Latch protection: Yes
• Cable length marking: Yes
• Package: DIGITUS polyethylene bag

Who it's for

• Network administrators
• Structured cabling installers
• Data centers
• Server rooms
• Office networks
• Home Gigabit Ethernet installations
• Telecommunications infrastructure

Conclusion

The DIGITUS CAT 6 UTP patch cord combines standards-compliant performance, a stranded copper conductor, an LSZH jacket, and protected RJ45 connectors. Its compact 0.25 m length makes it well suited for clean, organized short-distance connections while supporting stable data transmission in modern Ethernet networks.
