DIGITUS HDMI HDMI Full HD, 35 m, wall mountable

Features

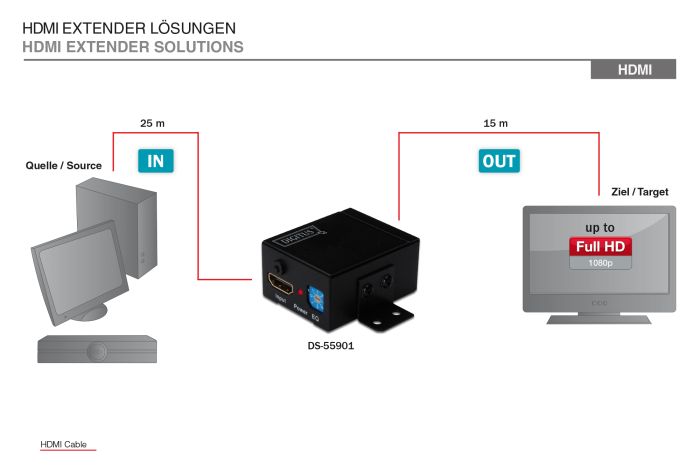

The DIGITUS HDMI repeater DS-55901 is placed between the signal source and the display, regenerating the HDMI signal that weakens over long distances. This allows the use of standard passive cables up to 35 metres without noticeable image degradation.

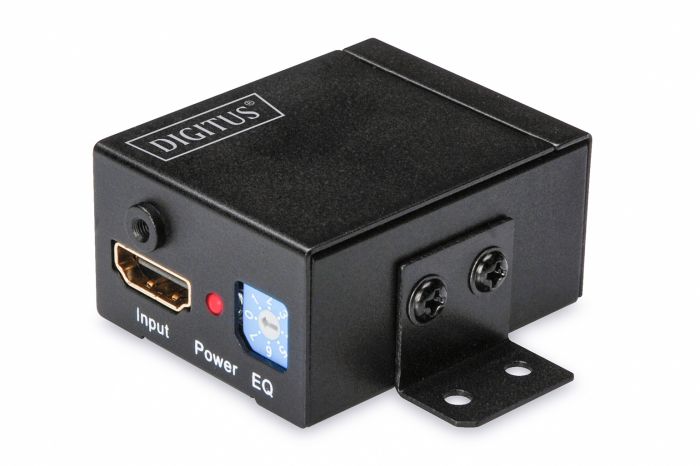

The built-in equaliser is manually adjustable across 8 levels (0 to 7). Each setting corresponds to a specific cable length, enabling precise compensation tailored to the actual installation — from short runs to the full 35 metres.

The device is fully transparent to HDCP and passes all data without loss: from 1080p@60 Hz to 3D formats and multichannel audio. Audio is transmitted uncompressed or compressed — LPCM, DTS-HD, Dolby TrueHD — depending on the source.

The compact housing has no external power supply — power is drawn from the HDMI input. This simplifies installation in hard-to-reach locations, such as behind walls or inside junction boxes.

Technologies (used)

• HDMI signal regeneration
• Adjustable 8-level equaliser (EQ 0–7)
• HDMI 1.3 / 1.4 specification support
• HDCP pass-through
• Deep Color 36 bit (12 bit per channel)
• Bandwidth 6.75 Gbps (225 MHz)
• 3D format support
• Uncompressed and compressed audio transmission (LPCM, DTS, Dolby)

Technical specifications

• Article: DS-55901
• Type: HDMI Repeater / Signal Booster
• Maximum distance: 35 m
• Maximum resolution: 1920 × 1080 @ 60 Hz
• Supported formats: Full HD, 3D, 1080p@23.98/24/50/59.94/60 Hz, 720p
• Bandwidth: 225 MHz / 6.75 Gbps
• Deep Color: 12 bit per channel (36 bit)
• Power: from HDMI input (no external adapter)
• Housing: plastic/metal
• Colour: black
• Package contents: repeater, instruction manual

Who it's for

• home cinema installers
• owners of projectors and large televisions
• technical specialists running long HDMI lines indoors
• users facing standard cable length limitations
• installers of video surveillance systems and digital signage

Conclusion

The DIGITUS DS-55901 repeater ensures stable HDMI signal transmission over distances up to 35 metres through signal regeneration and precise equaliser adjustment. It remains a straightforward and reliable solution for extending connections without switching to active optical cables.
