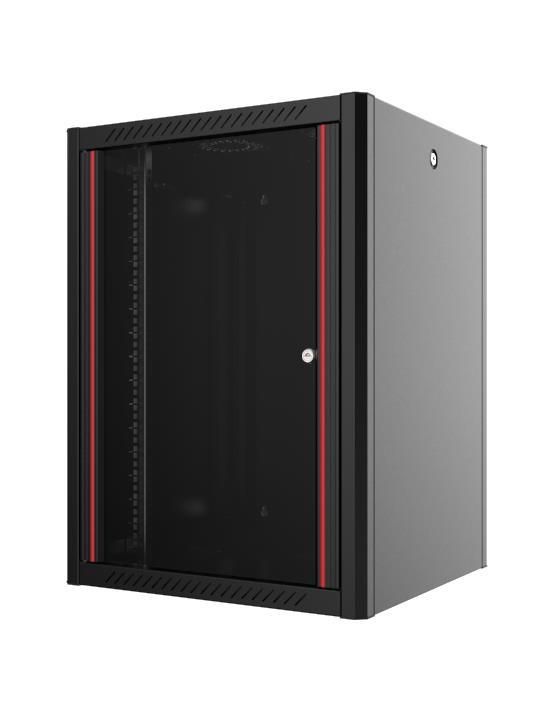

16U W=600MM D=600MM WALL TYPE NETWORK CABINET BLACK DISASSEMBLED

Features

The WTN series is designed for small and medium network installations. The 16U format enables efficient equipment placement within limited space.

Wall mounting optimizes room usage, while optional floor placement expands installation flexibility.

The glass front door with lock provides visual monitoring of internal equipment. Spring-loaded hinges allow changing the opening direction.

Removable side panels simplify maintenance and access. The perforated rear panel supports structured cable entry.

The top panel allows installation of fan units. Sealed cable entries ensure organized cable routing.

Technologies (used)

• Glass front door with lock
• Spring-loaded reversible hinges
• Perforated top panel for ventilation
• Sealed cable entry points
• Removable side panels
• Knock-down metal structure
• Powder coating (RAL 9005)
• Aluzinc mounting rails

Technical specifications

• Type: wall-mounted cabinet
• Form factor: 19"
• Height: 16U
• Series: WTN
• Dimensions: 600×600 mm
• Maximum load: 100 kg
• Front door: glass, lockable
• Side panels: removable
• Rear panel: steel, perforated
• Protection rating: IP20 (EN 60529)
• Material: steel, glass
• Coating: powder coated
• Color: black
• Mounting rails: 1 pair, aluzinc
• Cable entry: top and bottom
• Package: frame, panels, door, rails, feet

Who it's for

• Small office networks
• System administrators
• Network integrators
• Local server setups
• Telecom installations

Conclusion

The MIRSAN WTN 16U cabinet provides a structured approach to compact network deployment. The design balances accessibility, monitoring, and installation flexibility.
