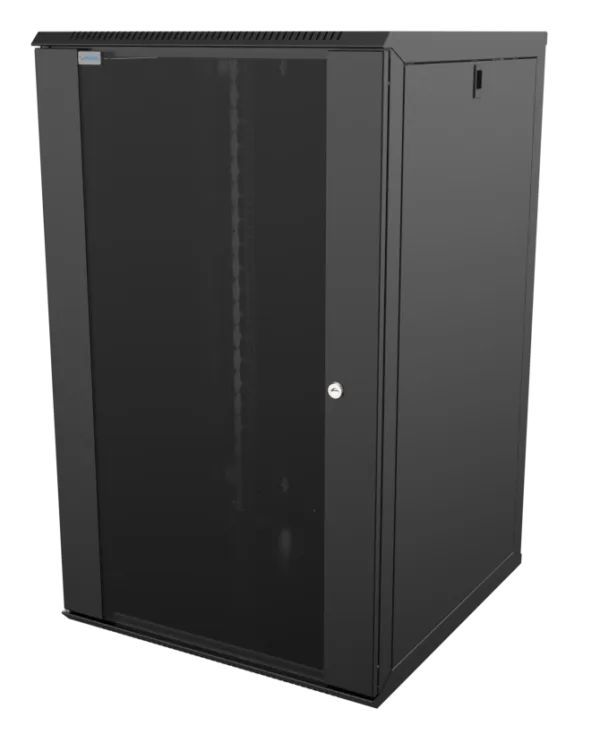

20U W=565MM D=600MM DISASSEMBLED COM-BOX BLACK

Features

MIRSAN MR.WTC20U60DE.01 belongs to the WTC Com-Box series of wall-mounted cabinets and is designed for 19" equipment installation. The 20U format provides space for network switches, patch panels, power distribution units, cable organizers, and other passive or active equipment.

The cabinet uses a demountable load-bearing structure with a bottom plate, a top plate, and four vertical posts. This format supports transport, installation, and maintenance, while the maximum load capacity of 80 kg allows several equipment units to be installed within one wall-mounted point.

The front door is made of glass and equipped with a single-point lock. Two removable side panels also have single-point locks, so equipment access is available from the front and sides, which is useful during cable connection and service work.

The rear steel panel has mounting holes and perforation for cable entry. The top plate includes perforation for a fan unit and an adjustable cable entry with a gasket, while the bottom plate has a cable entry closed with a PVC blanking plug.

The frame and side panels are coated with textured RAL 9005 powder paint. Mounting profiles are made of aluzinc, and the IP 20 protection rating complies with EN 60529.

Technologies (used)

• 19-inch mounting standard
• Wall-mounted installation
• Demountable load-bearing structure
• Single-point locks
• Removable side panels
• Glass front door
• Cable entries in the top and bottom plates
• Perforation for a fan unit
• RAL 9005 powder coating
• Aluzinc mounting profiles
• IP 20 protection according to EN 60529

Technical specifications

• Model: MIRSAN 19", 20U, WTC, 565x600 mm, black
• Part number: MR.WTC20U60DE.01
• Series: WTC Com-Box
• Type: wall-mounted telecommunication cabinet
• Mounting standard: 19"
• Height: 20U
• Dimensions: 565x600 mm
• Maximum equipment load: 80 kg
• Front door: glass, with single-point lock
• Side panels: two removable panels with single-point locks
• Rear panel: steel, with mounting holes and cable entry perforation
• Top plate: with fan unit perforation and adjustable cable entry with gasket
• Bottom plate: with cable entry closed by PVC blanking plug
• Mounting profiles: one 19" pair
• Color: black
• Color code: RAL 9005
• Coating: textured powder paint
• Mounting profile material: aluzinc
• Protection rating: IP 20
• Protection standard: EN 60529
• Floor installation option: PVC plug feet included for possible floor placement
• Additional options: rear pair of 19" mounting profiles, fan unit, adjustable feet, castors, shelves, organizers, power distribution units, and other options for 19" cabinets

Who it's for

• For system administrators
• For network engineers
• For structured cabling installers
• For telecommunication infrastructure specialists
• For service engineers
• For office network administrators
• For technical specialists working with compact network nodes

Conclusion

MIRSAN MR.WTC20U60DE.01 is a wall-mounted 19-inch 20U cabinet for organized installation of network and telecommunication equipment. The model combines a demountable structure, access from multiple sides, cable entries, ventilation preparation, and black RAL 9005 powder coating, making it a practical solution for office and technical installations.
