AFOX Graphic Card GeForce GTX 1050 Ti 4GB GDDR5 LP

Features

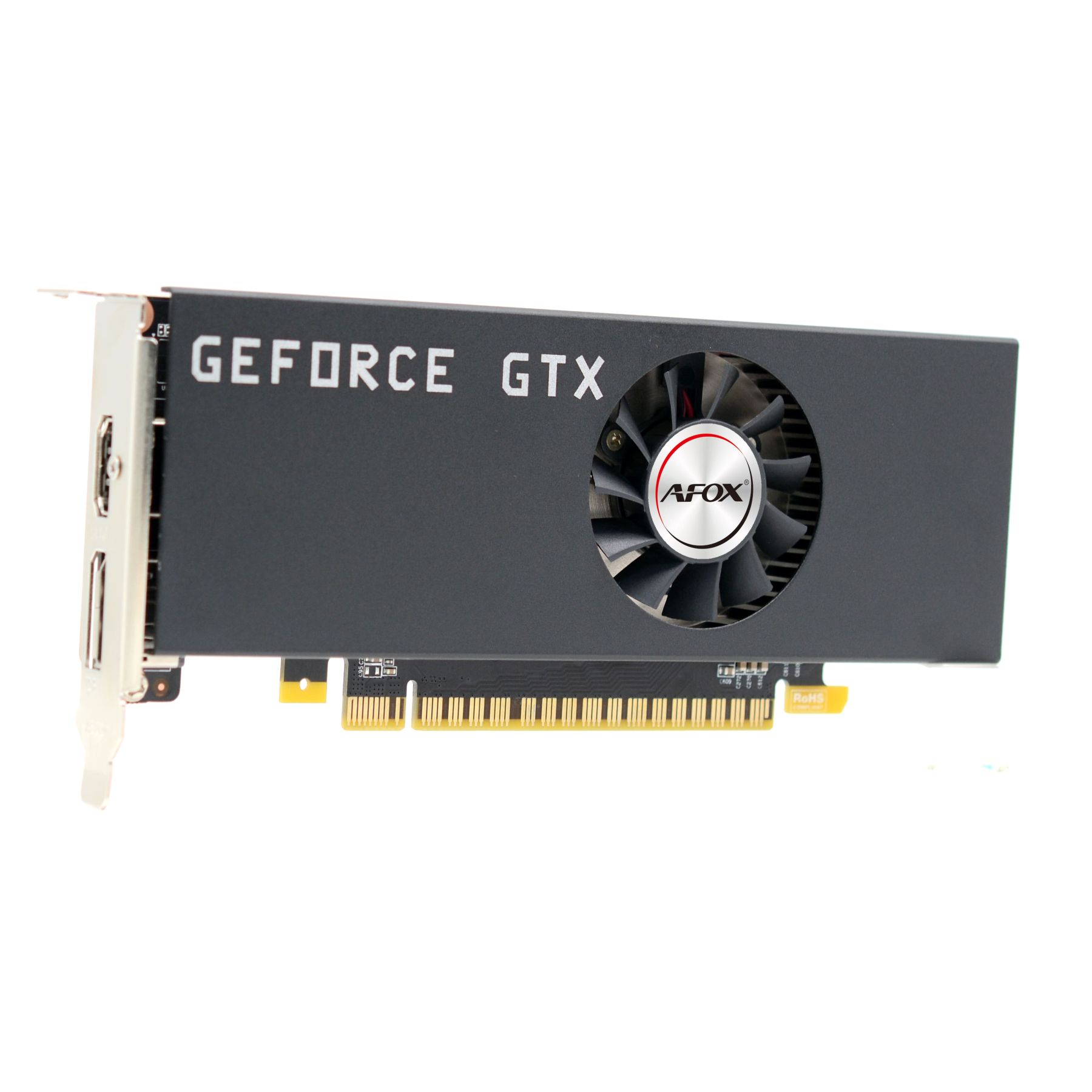

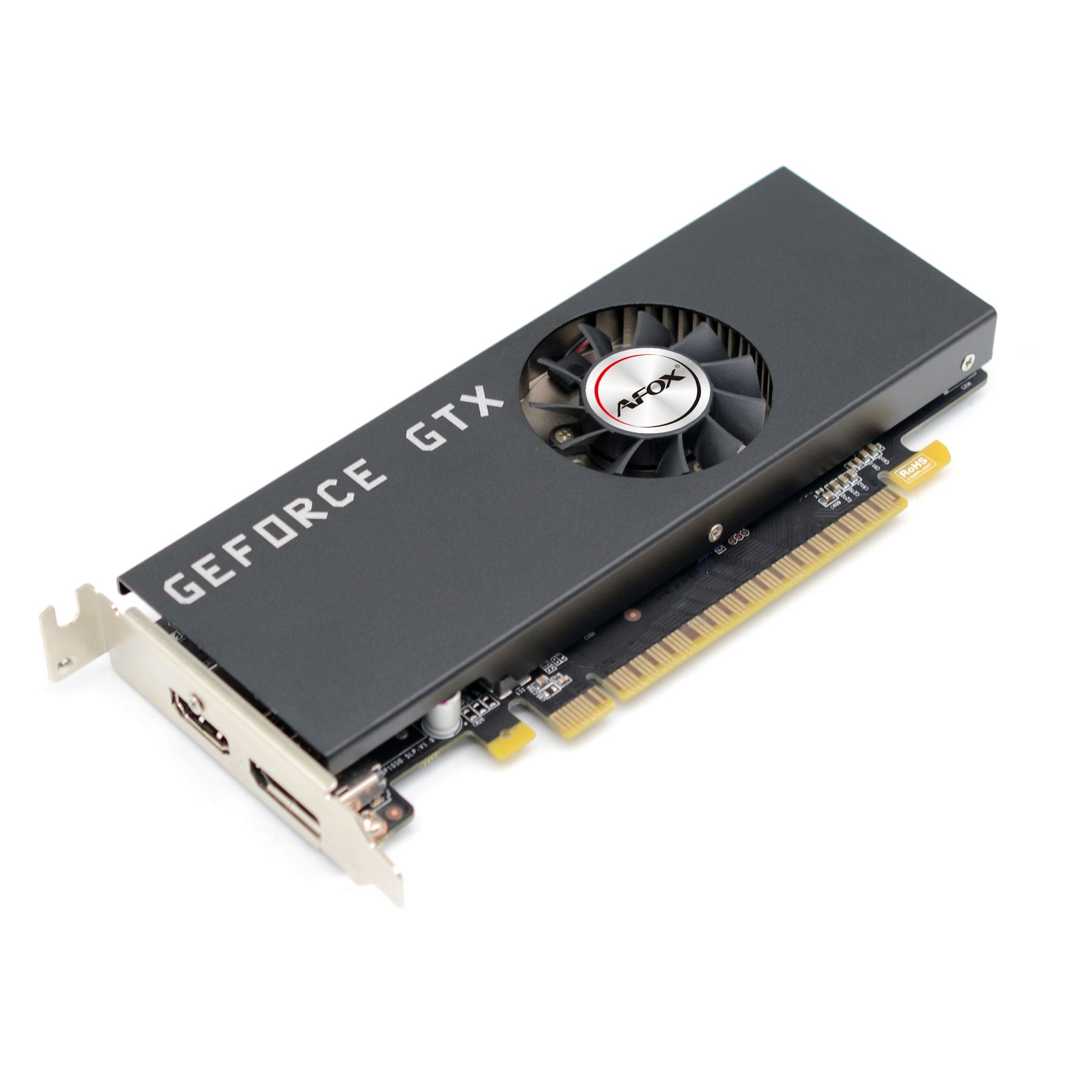

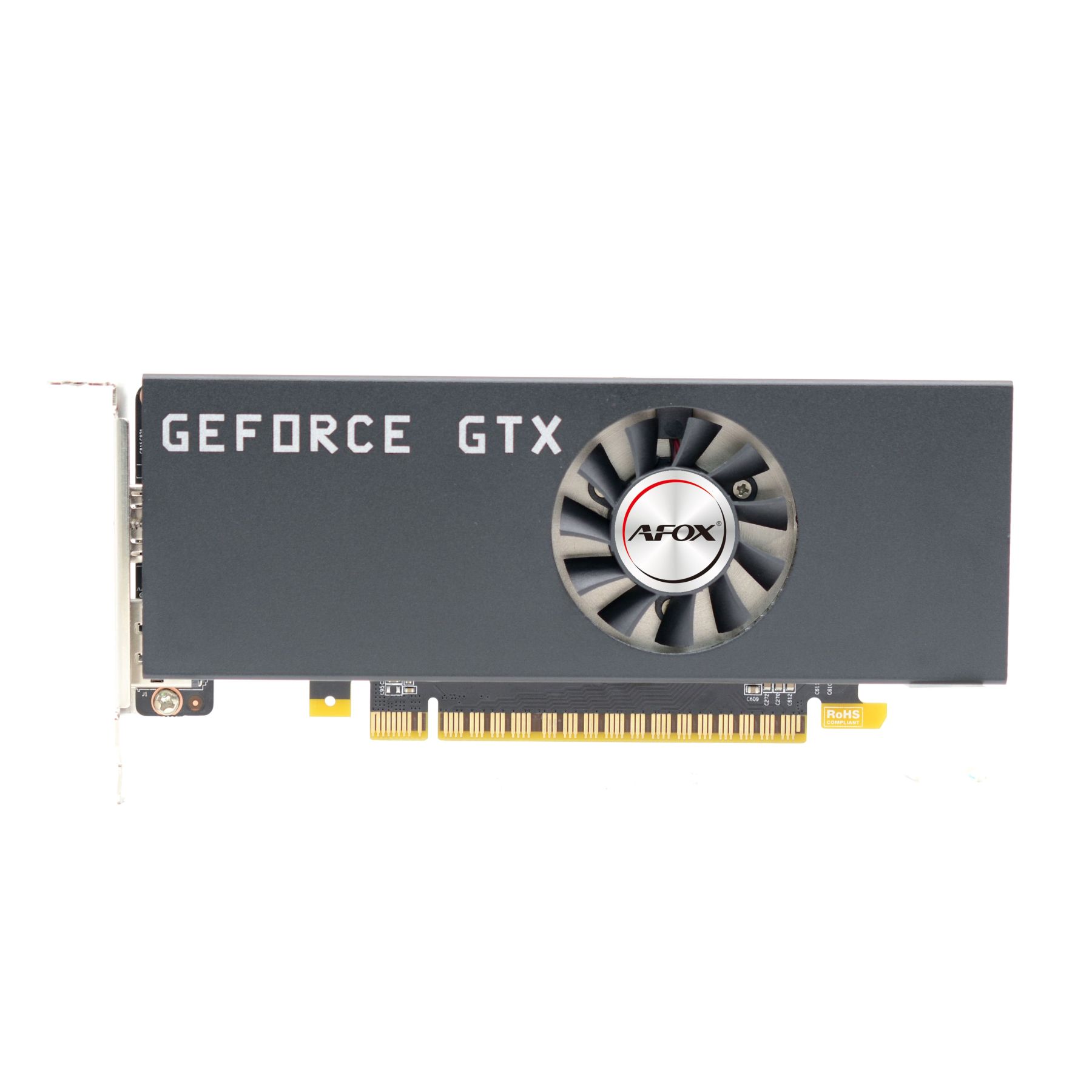

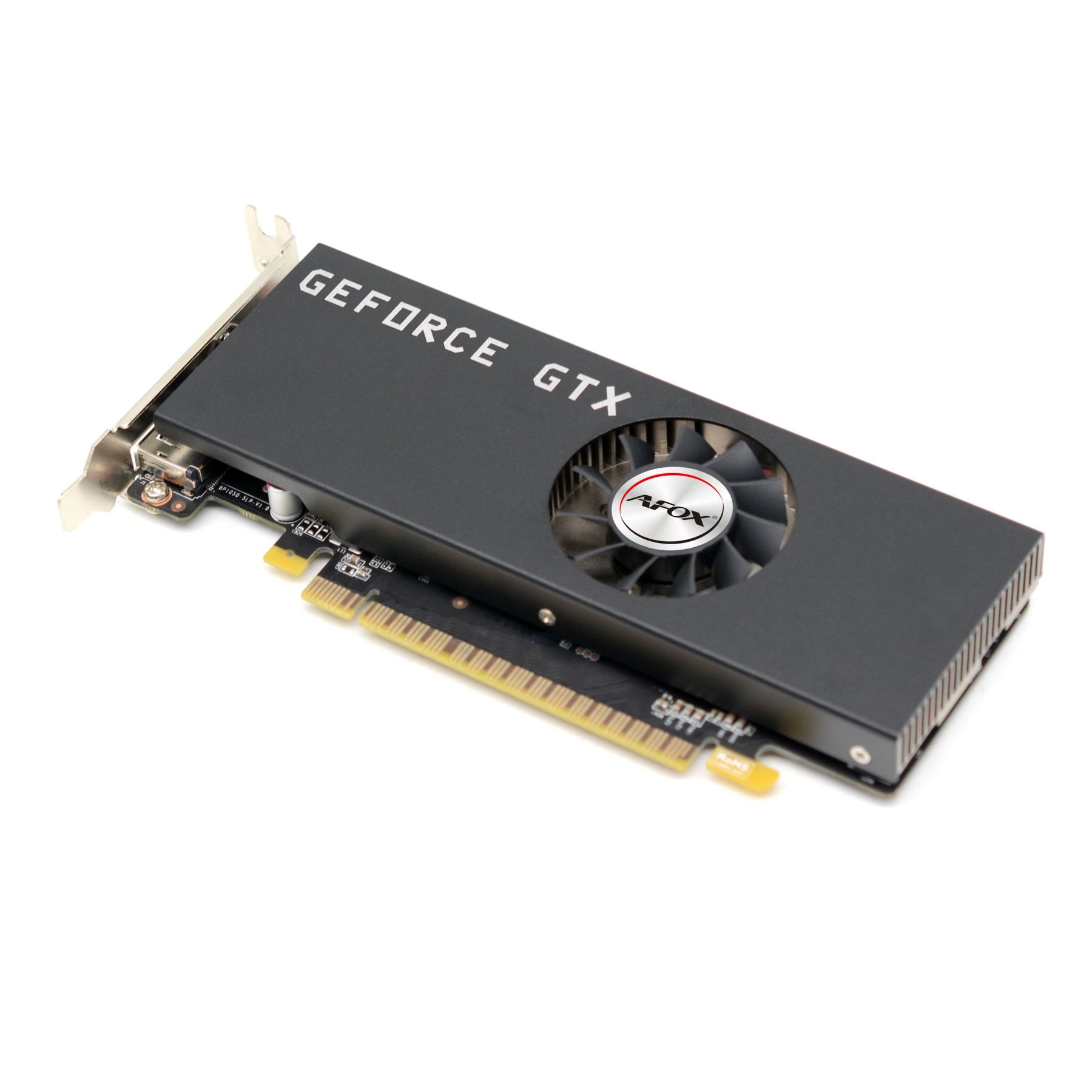

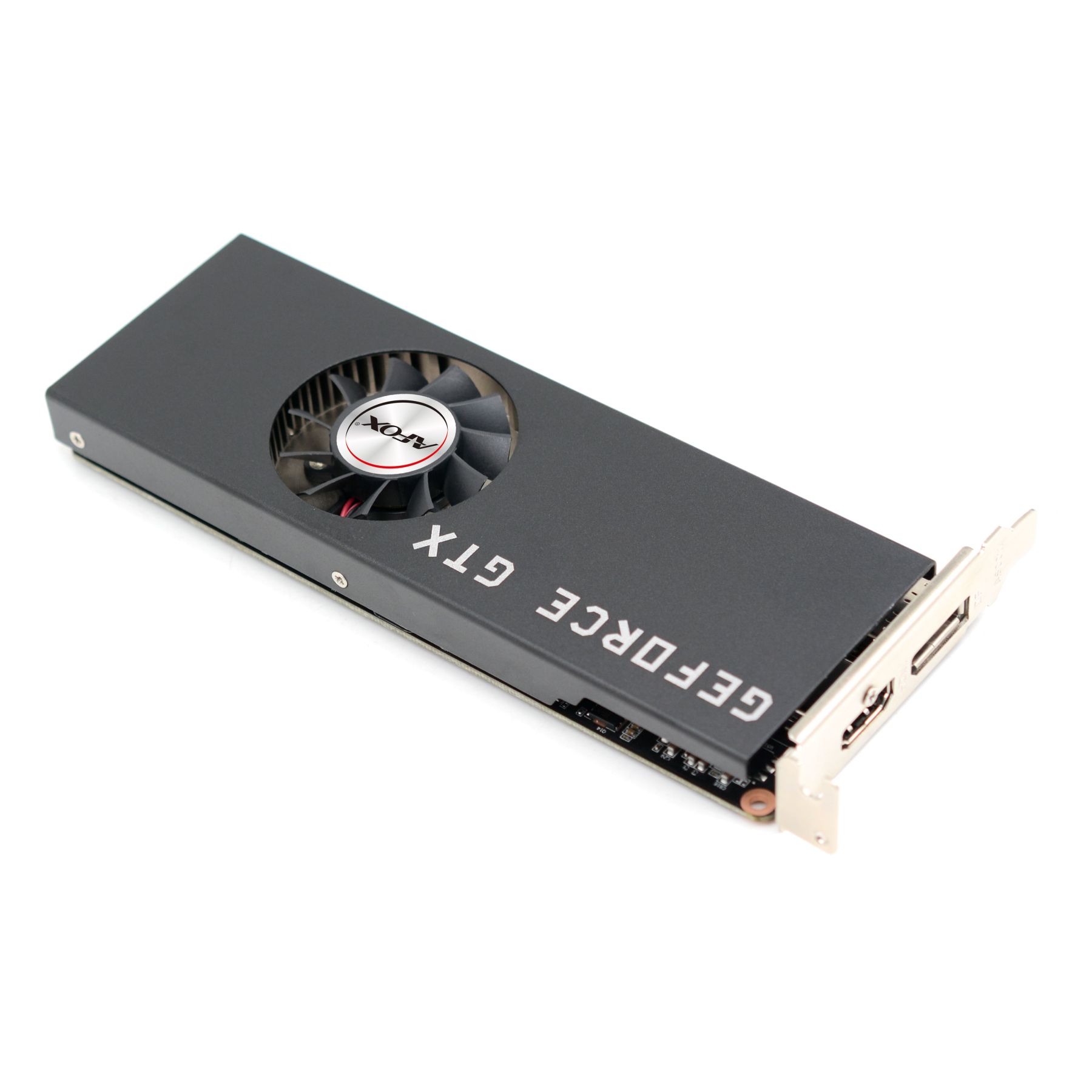

The AFOX GeForce GTX 1050 Ti 4GB GDDR5 LP graphics card features a low-profile, single-slot design. This construction reduces the space required for installing the graphics card inside a PC case. A PCI Express 3.0 interface is used for system connectivity.

The GeForce GTX 1050 Ti GPU operates at a frequency of 1392 MHz. The graphics card is equipped with 4 GB of GDDR5 memory running at 7000 MHz and a 128-bit memory bus.

NVIDIA GPU Boost provides dynamic GPU frequency adjustment according to operating conditions. NVIDIA Adaptive V-Sync is designed to synchronize frame output with the display refresh rate and reduce screen tearing.

NVIDIA PhysX enables physics effects in compatible software. Other supported capabilities include NVIDIA 3D Vision Surround Ready, DirectX 12, and OpenGL 4.5.

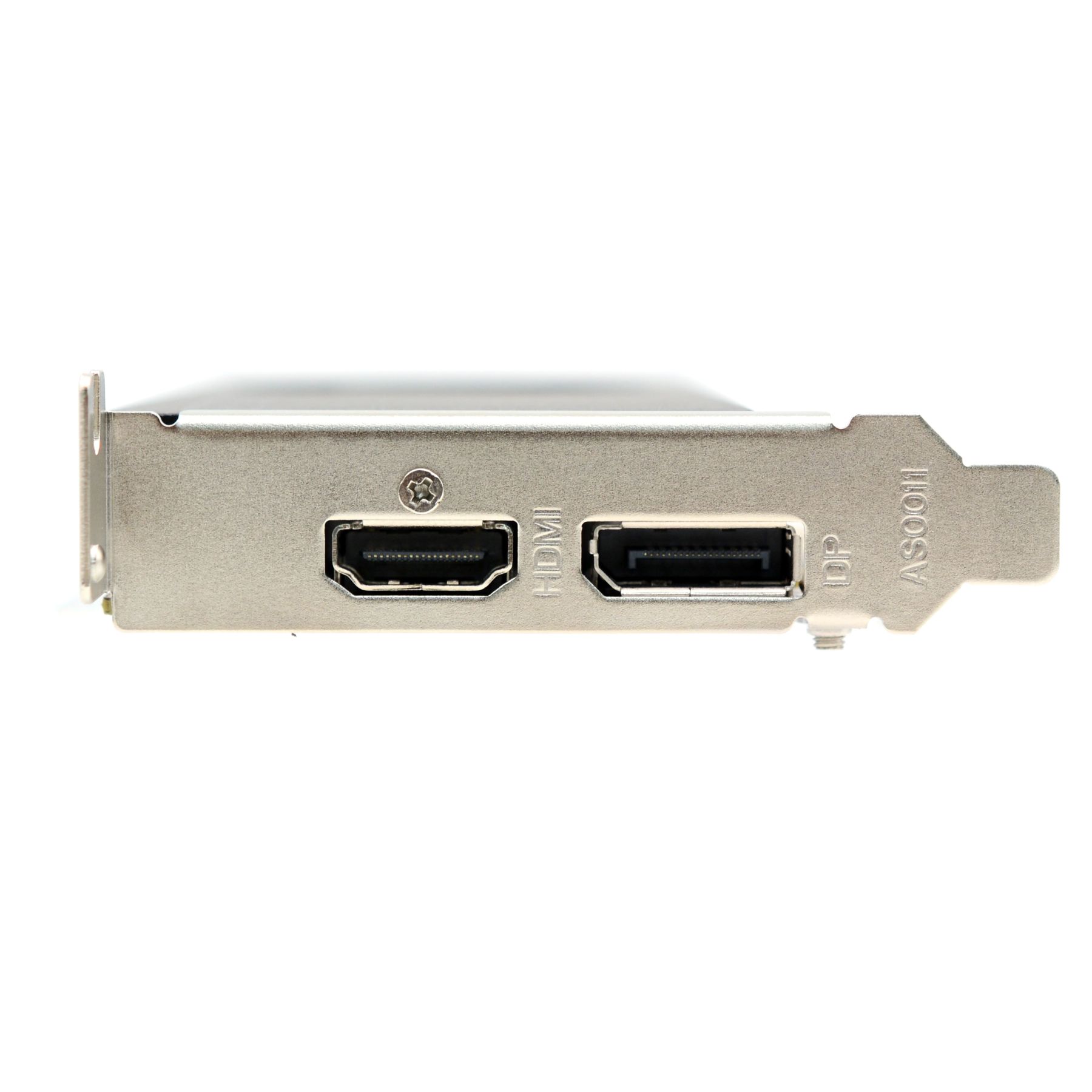

HDMI and DisplayPort outputs are provided for display connectivity. The maximum supported resolution is 4K at 60 Hz. The active cooling system consists of a heatsink and a single fan, while no additional power connector is required.

Technologies (used)

• NVIDIA Adaptive V-Sync
• NVIDIA GPU Boost
• NVIDIA PhysX
• NVIDIA 3D Vision Surround Ready
• DirectX 12
• OpenGL 4.5
• 4 GB GDDR5 memory
• 128-bit memory bus
• PCI Express 3.0 interface
• Low-profile design
• Single-slot design
• Active cooling system
• Fan and heatsink
• HDMI and DisplayPort video outputs
• 4K at 60 Hz support
• No additional power connector required

Technical Specifications

• Brand: AFOX
• Article: AF1050TI-4096D5L5-V2
• GPU: GeForce GTX 1050 Ti
• GPU clock: 1392 MHz
• Memory type: GDDR5
• Memory capacity: 4 GB
• Memory clock: 7000 MHz
• Memory bus width: 128-bit
• Interface: PCI Express 3.0
• Form factor: Low Profile
• Cooling system: fan + heatsink
• Video outputs: HDMI, DisplayPort
• Maximum supported resolution: 4K @ 60 Hz
• Supported 3D APIs: DirectX 12, OpenGL 4.5
• Additional power: none
• Cooling type: active
• Occupied slots: 1

For Whom

• For compact systems supporting low-profile graphics cards
• For systems with a PCI Express 3.0 interface
• For configurations requiring HDMI and DisplayPort connectivity
• For connecting compatible displays with resolutions up to 4K at 60 Hz
• For systems requiring a graphics card without an additional power connector

Conclusion

AFOX GeForce GTX 1050 Ti 4GB GDDR5 LP graphics card combines a low-profile single-slot design, 4 GB of GDDR5 memory and a 128-bit memory bus. The model supports NVIDIA Adaptive V-Sync, GPU Boost, PhysX and 3D Vision Surround Ready, as well as DirectX 12 and OpenGL 4.5. HDMI and DisplayPort provide connectivity for displays supporting resolutions up to 4K at 60 Hz.
