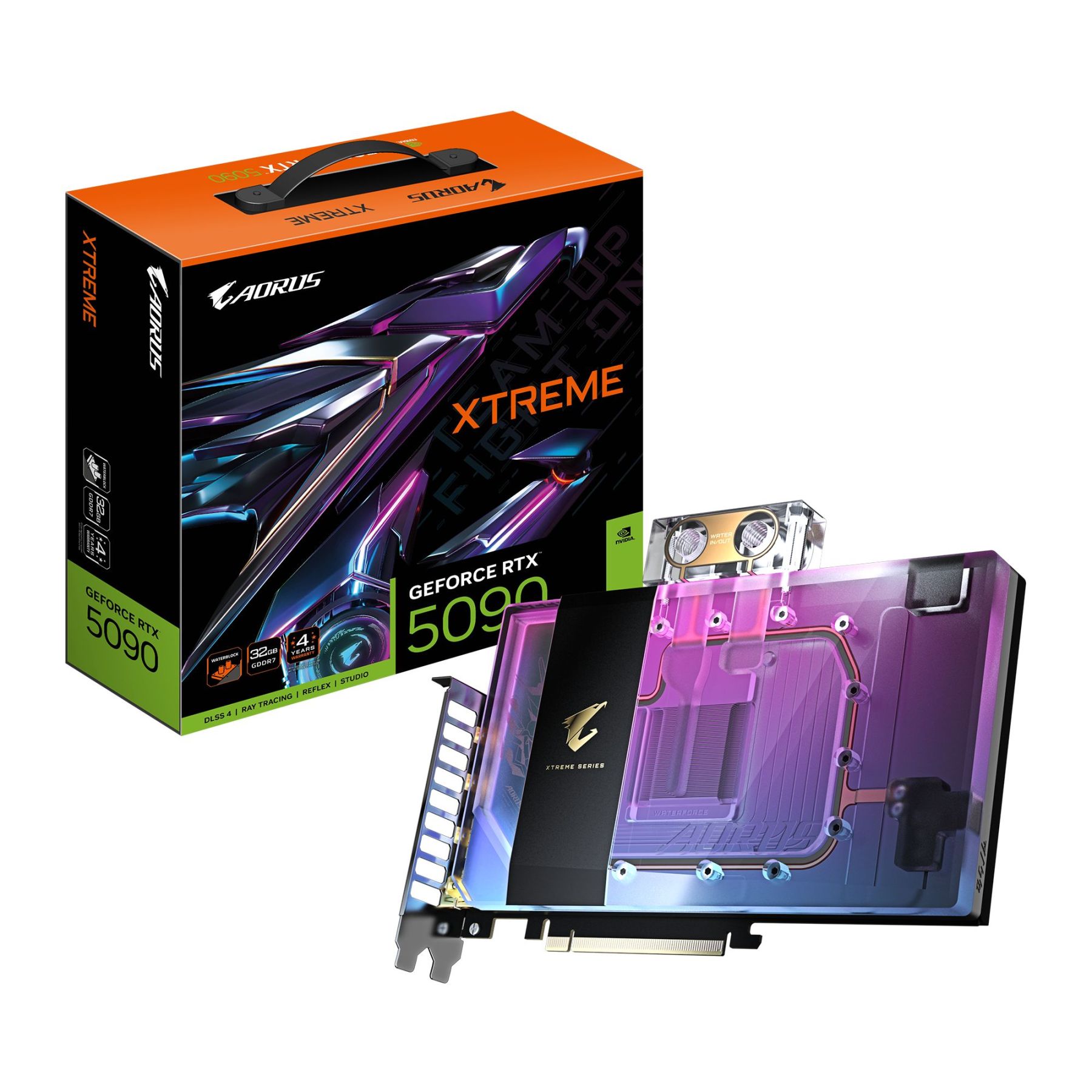

GIGABYTE Video Graphic Adapter GeForce RTX 5090 32GB GDDR7 AORUS EXTREME Waterforce WB під систему водного охолодження

Features

AORUS GeForce RTX™ 5090 XTREME WATERFORCE WB 32G belongs to the AORUS graphics card series and is based on the GeForce RTX™ 5090 GPU. A configuration with 32 GB of GDDR7 memory, a 512 bit memory bus, and 28 Gbps memory speed is intended for demanding graphics, gaming scenarios, and visual-content workflows.

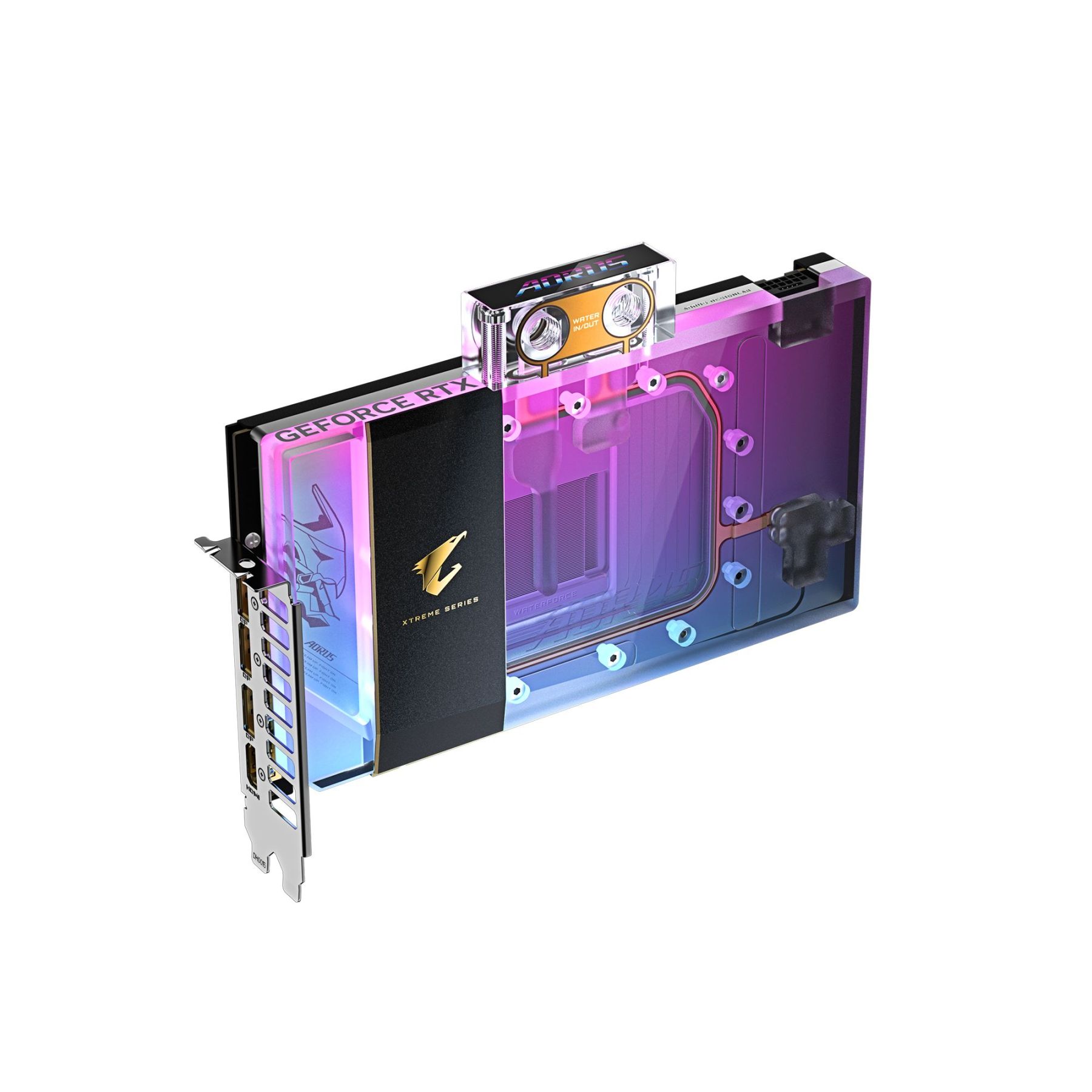

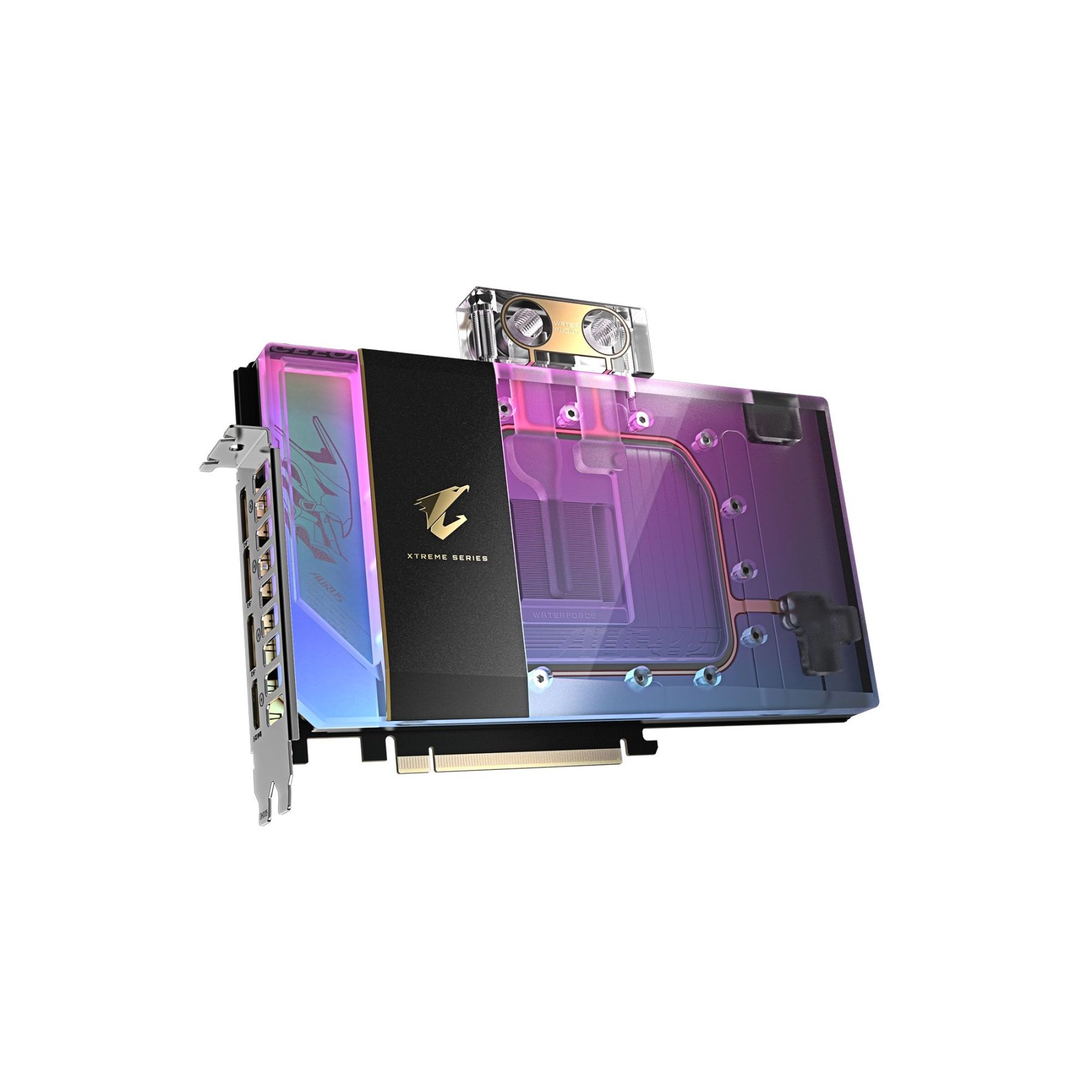

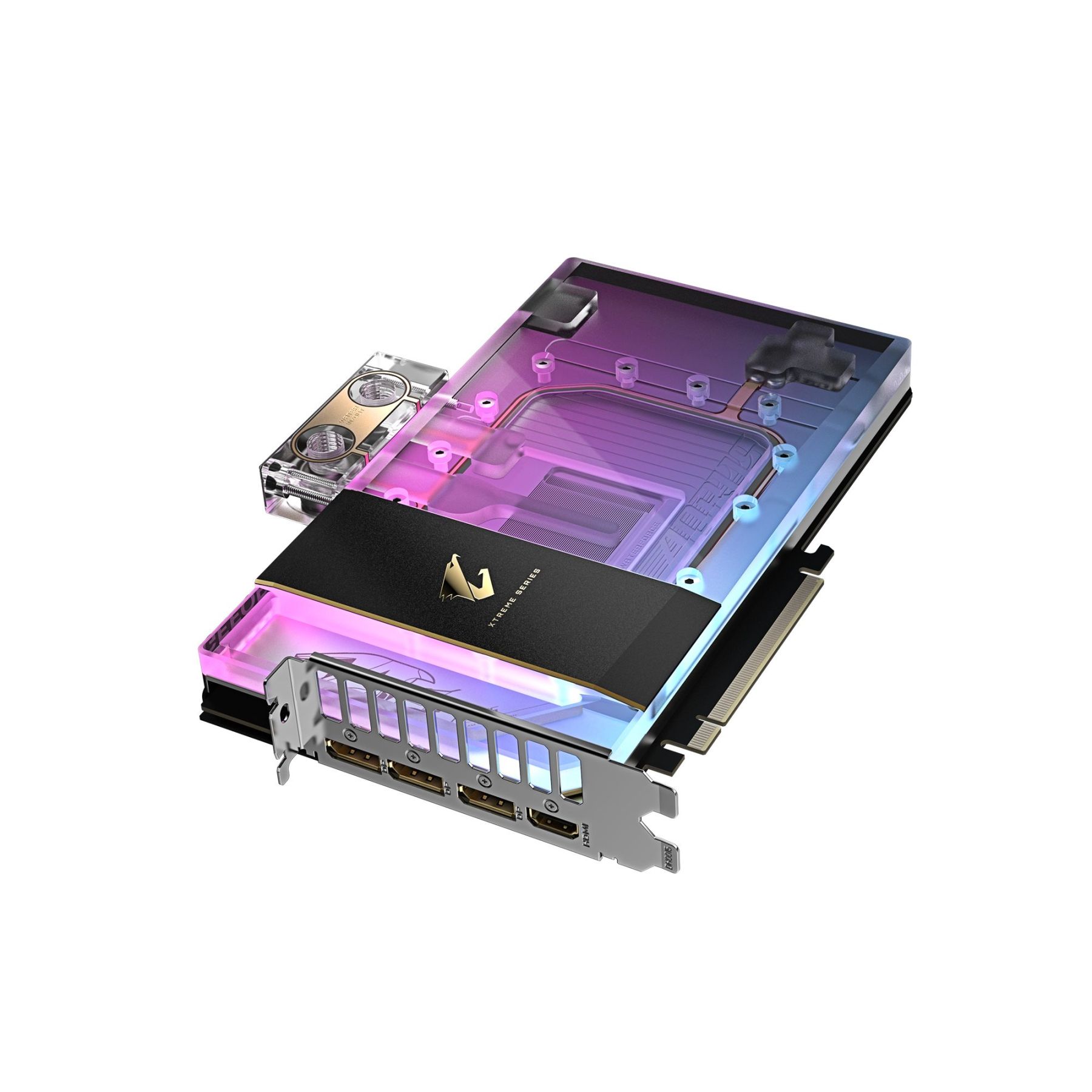

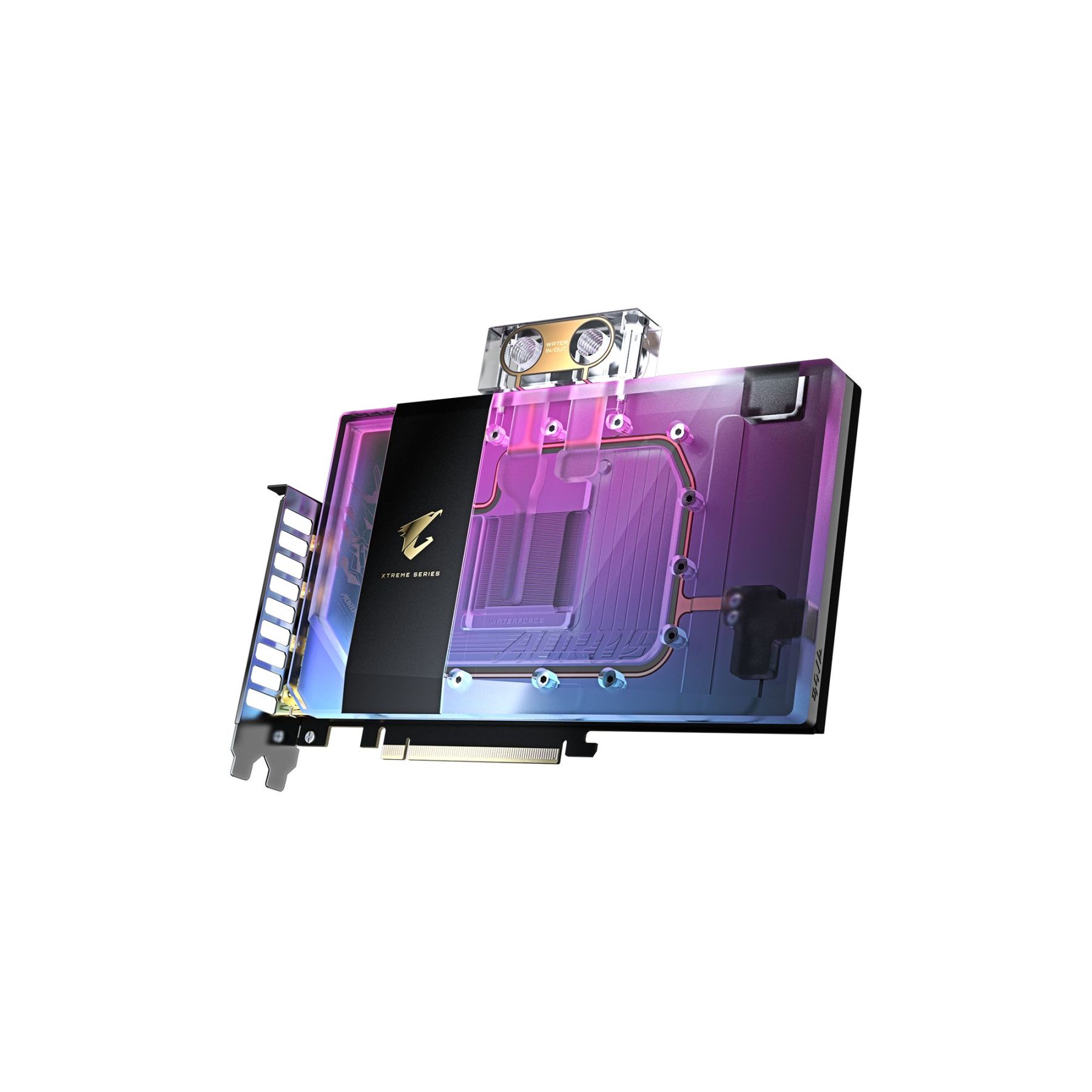

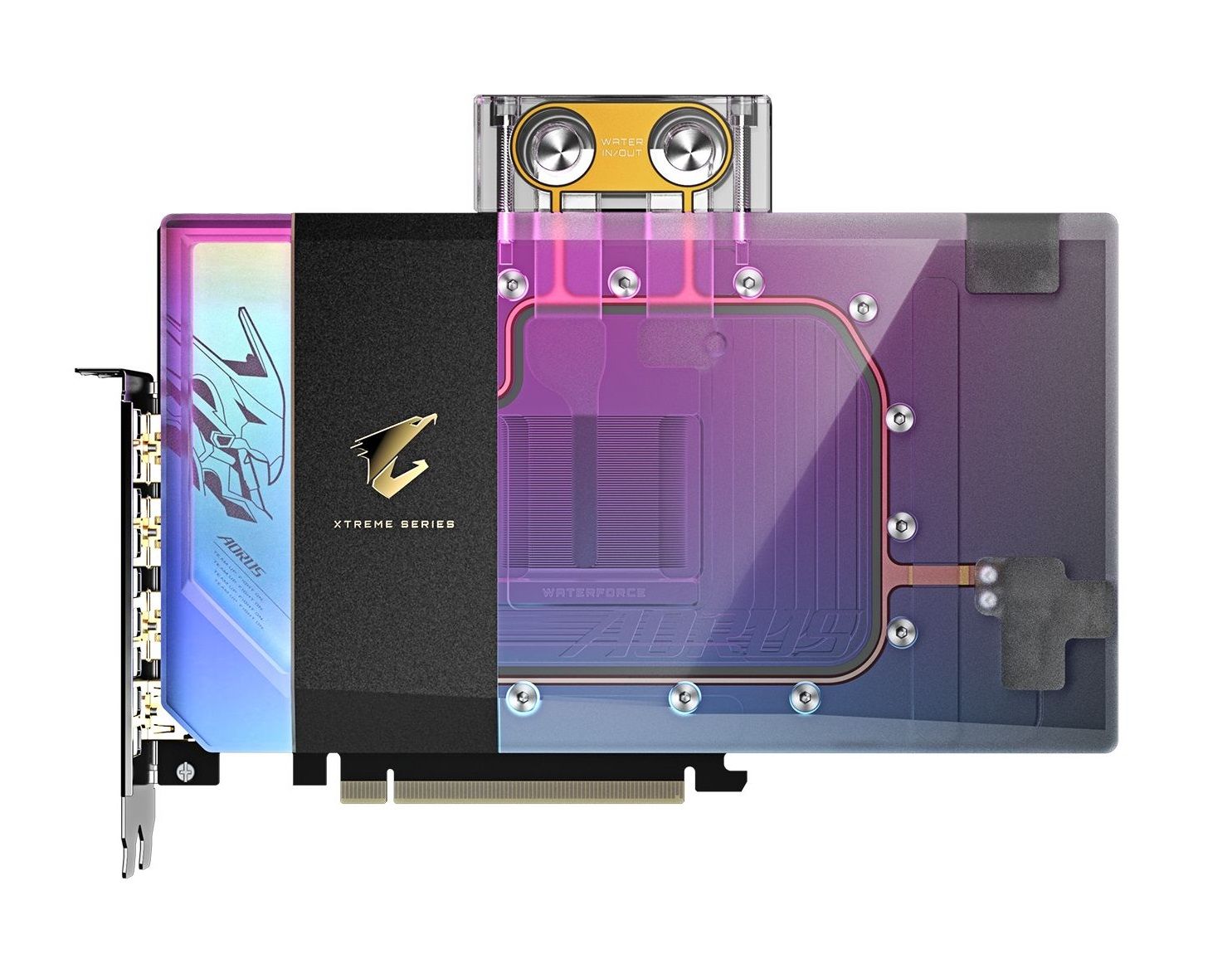

The WATERFORCE Water Block system is designed for integration into a custom liquid-cooling loop. The water block covers key areas, including the GPU, VRAM, and MOSFET, helping transfer heat away from critical components.

The design includes a copper base plate, microchannels, and micro fins over the graphics processor. Server-grade thermal conductive gel is also used to contact components that require cooling.

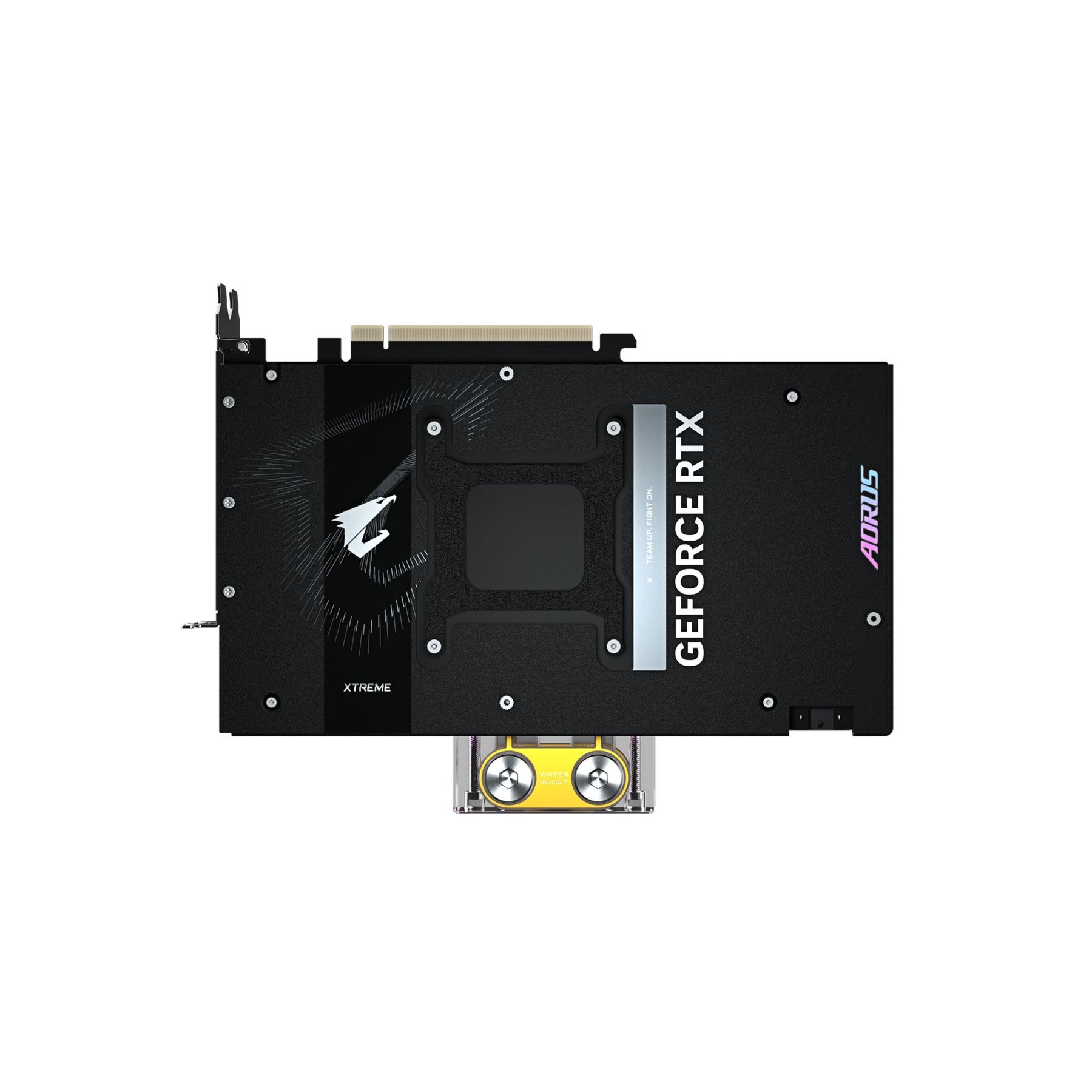

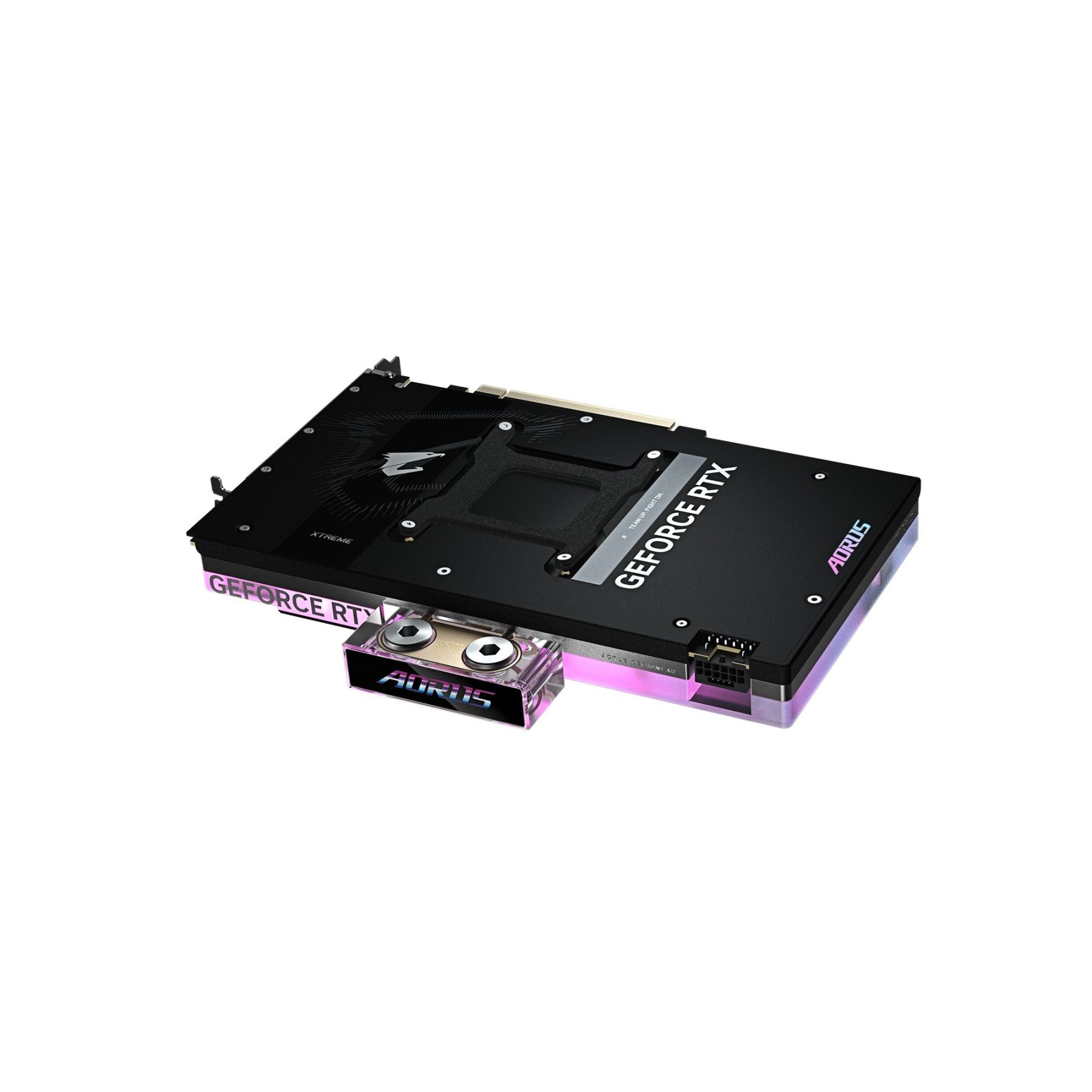

A patented leak detection system is included and signals a possible issue with a light warning. The metal back plate reinforces the structure, while the power indicator reports abnormal power delivery.

The model supports RGB Lighting with adjustment through GIGABYTE CONTROL CENTER. GCC software provides control over graphics card parameters, including clock speed, voltage, and power target.

Technologies (used)

• NVIDIA Blackwell Architecture
• DLSS 4
• Fifth-Gen Tensor Cores
• Fourth-Gen Ray Tracing Cores
• NVIDIA Reflex 2
• NVIDIA Studio
• NVIDIA Broadcast
• NVIDIA G-SYNC
• WATERFORCE Water Block
• Patented Leak Detection
• RGB Lighting
• GIGABYTE CONTROL CENTER
• Ultra Durable
• PCB Coating

Technical specifications

• Model: GV-N5090AORUSX WB-32GD
• Graphics processor: GeForce RTX™ 5090
• Core clock: 2655 MHz
• CUDA® cores: 21760
• Memory speed: 28 Gbps
• Memory size: 32 GB
• Memory type: GDDR7
• Memory bus: 512 bit
• Interface: PCI-E 5.0
• Maximum digital resolution: 7680 x 4320
• MultiView support: 4
• Dimensions: 235 x 172 x 29 mm
• Form factor: ATX
• DirectX support: DirectX 12 API
• OpenGL version: OpenGL 4.6
• Recommended PSU: 1000W
• Power connector: 16 pin x 1

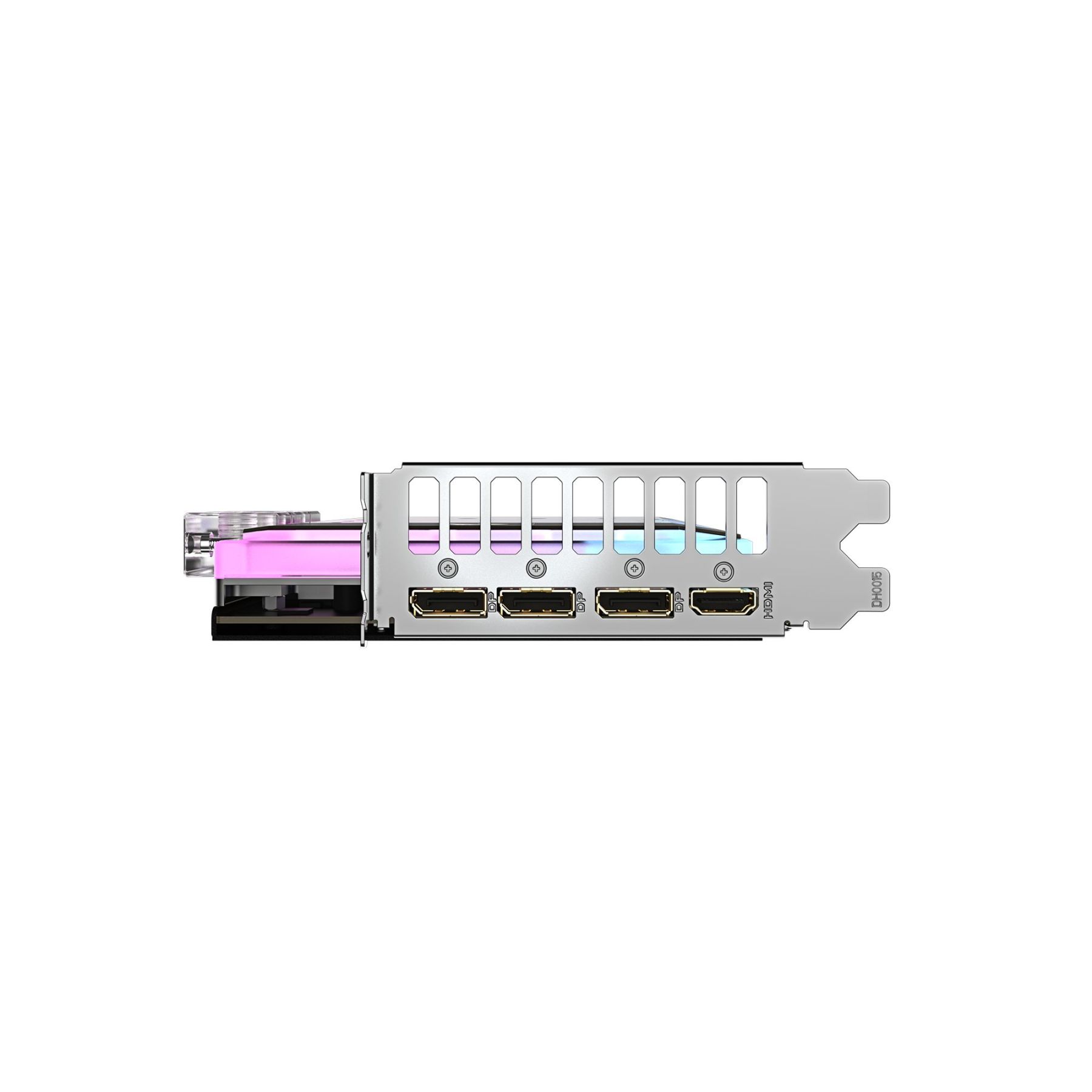

• Outputs: DisplayPort 2.1b x 3, HDMI 2.1b x 1
• Accessories: Quick guide, Warranty registration, 12V-2x6 to 4x PCIe 8pin adapter, AORUS identity sticker, AORUS metal sticker, WATERFORCE water block installation guide, Thermal grease
• Manufacturer note: non-corrosive coolant should be used

Who it's for

• gamers building PCs with custom liquid cooling
• PC-building enthusiasts using open-loop cooling systems
• video, graphics, and 3D content creators
• workstation users handling demanding graphics workloads
• PC modders focused on water cooling and RGB lighting

Conclusion

AORUS GeForce RTX™ 5090 XTREME WATERFORCE WB 32G combines the GeForce RTX™ 5090 GPU, 32 GB of GDDR7 memory, the WATERFORCE water block, and design elements for custom liquid-cooling loops. The model fits performance-oriented PCs where graphics power, temperature control, and modern display connectivity are important.
