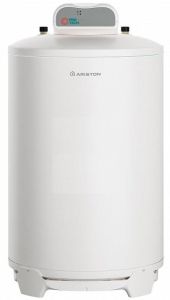

Indirect heating water heater Ariston BCH CD1 160 ARI-EU 160l 1 heat exchanger

Ariston BCH CD1 160 ARI-EU is an indirect storage water heater designed for integration with boiler systems. The single 0.7 m² coil heat exchanger ensures efficient thermal transfer.

The steel tank with titanium enamel coating provides corrosion resistance. Additional protection is delivered through a magnesium anode and the electronic ProTech system.

A recirculation loop improves hot water delivery time. The unit includes a pre-installed sensor port and supports an optional electric kit (art. 3078229).

Compatible with gas, solid fuel and electric boilers, as well as forced-circulation solar systems. Vertical floor-standing installation (kit art. 3078020 required) or wall mounting is supported.

Technologies (used)

• Titanium enamel tank coating
• Magnesium anode
• ProTech electronic corrosion protection
• Steel coil heat exchanger
• Recirculation loop
• Thermal insulation

Technical specifications

• Article: 3070492
• Series: BCH CD1
• Type: indirect water heater
• Tank capacity: 160 L
• Heat exchangers: 1
• Heat exchanger volume: 4.4 L
• Heat exchanger area: 0.7 m²
• Output: 478 L/h
• Max temperature: 90 °C
• Working pressure: 7 bar
• Heat loss: 1.34 kWh/24h
• Tank material: enamelled steel
• Connections: 3/4″
• Installation: floor-standing / wall-mounted
• Orientation: vertical
• Dimensions: 560×1345×560 mm
• Weight: 55 kg
• Color: white
• Country of origin: Belgium
• Warranty: 1 year

Who it's for

• Private houses with boiler systems
• Buildings requiring stored hot water supply
• DHW recirculation systems
• Solar-assisted heating installations

Conclusion

Ariston BCH CD1 160 ARI-EU is a structurally robust indirect water heater engineered for integration into multi-source heating systems with extended corrosion protection and installation flexibility.
