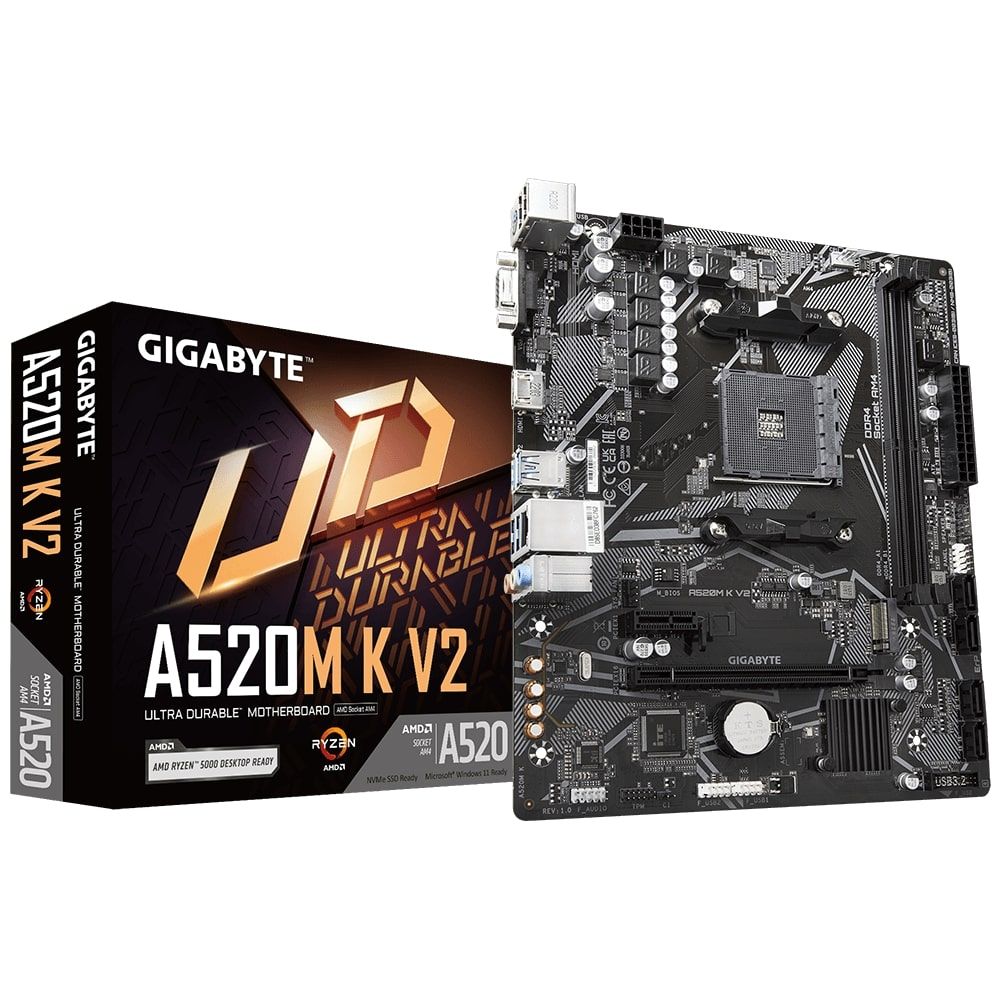

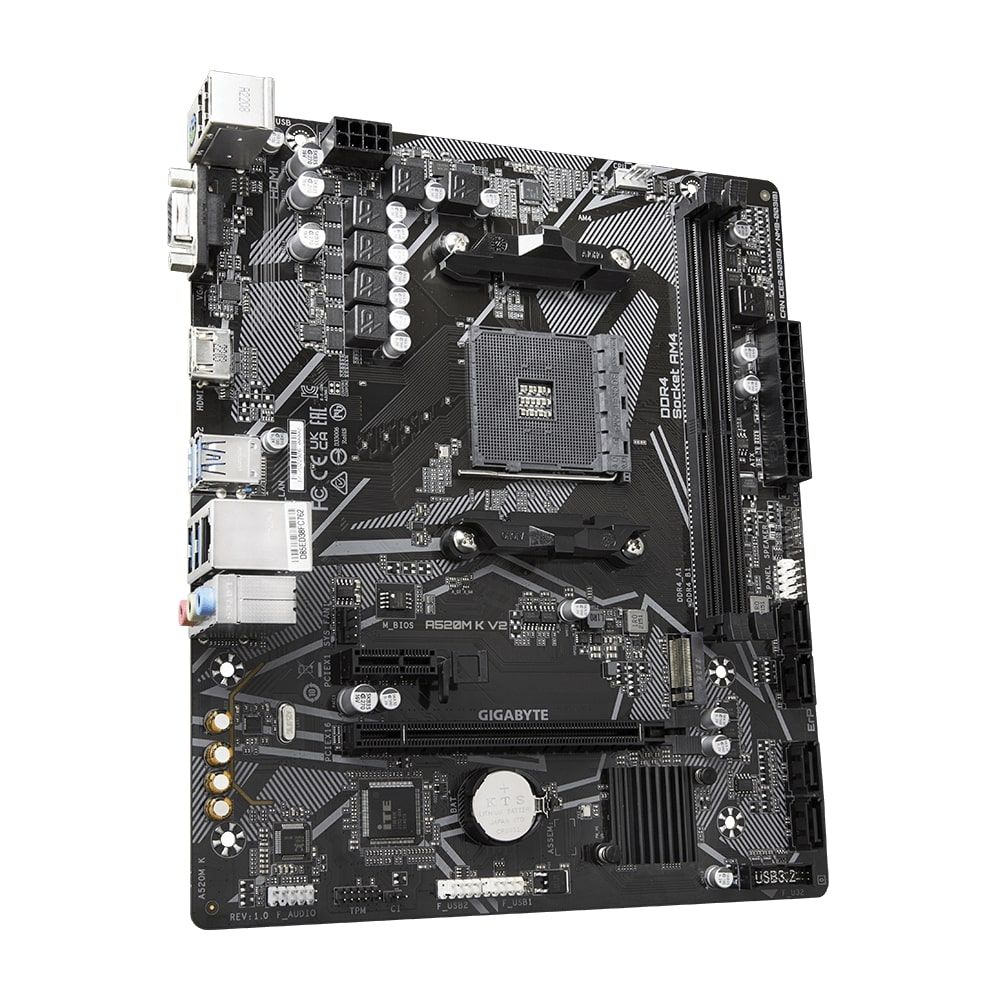

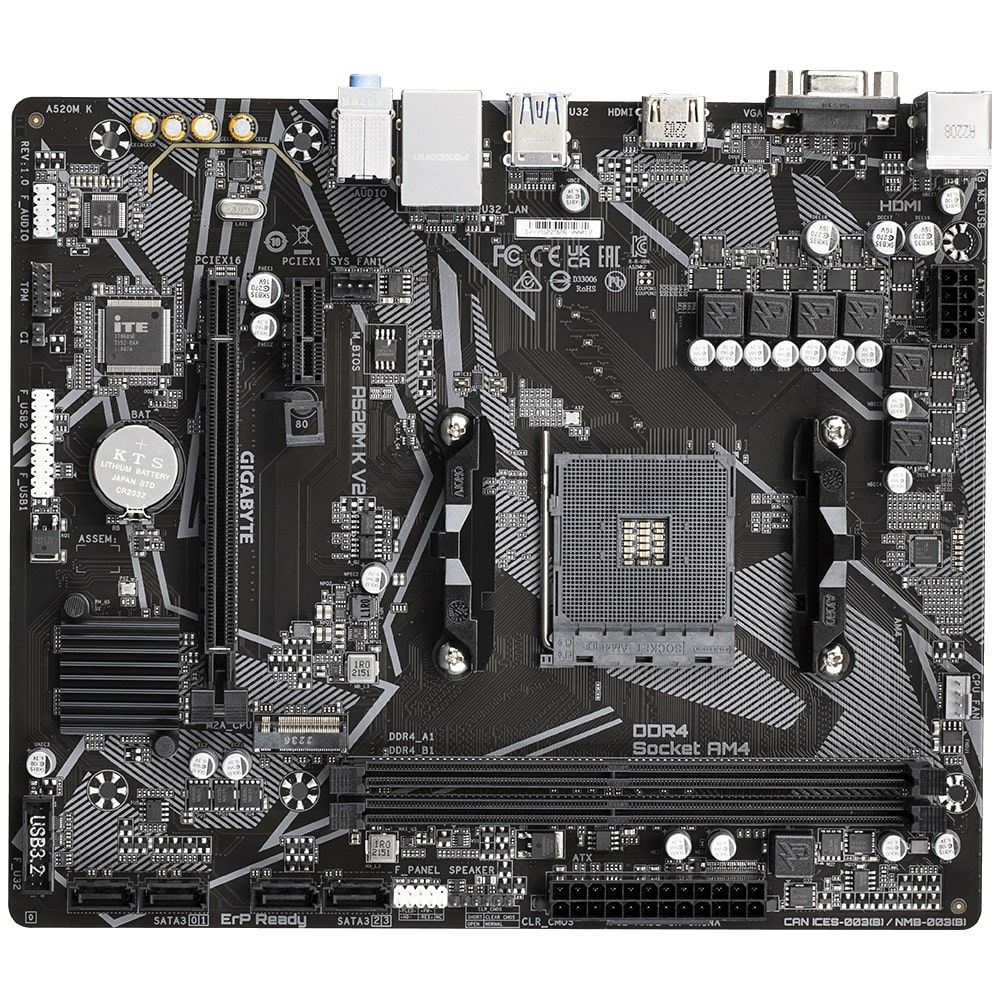

GIGABYTE Motherbard A520M K V2 sAM4 A520 2xDDR4 M.2 HDMI mATX
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
NVMe PCIe Gen 3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
-
Towards:gaming (overclocking)
-
Form Factor:micro-ATX
-
For processors:AMD
-
Connection type:AM4
-
Northbridge (chipset):AMD A520
-
UEFI BIOS:Yes
-
Connector type:DDR4
-
DDR4:2 slots
-
Maximum operating frequency MHz:5100
-
The maximum amount of memory GB:64
-
Graphical interface:PCI-E x16 3.0, PCI-E x1 3.0
-
HDMI Output:Yes
-
Sound:7.1
-
Connection interface:SATA 3, M.2
-
SATA3 (6 Gb / s):4 ports
-
LAN (RJ-45):1 Gbps
-
Number of LAN-ports:1
-
USB 2.0 pcs:6
-
USB 3.2 Gen 1:6
-
BIOS:UEFI
-
Support software RAID:Yes
-
PS/2 pcs:1
-
Main power connector:24+8 -pin
-
D-Sub (VGA):Yes
-
Dimensions (HxW):233x198 mm
-
Features:iTE I/O Controller Chip, Q-Flash utility, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, CPU fan header, system fan headers, clear CMOS jumper, Front Panel Header, Front panel audio connector, Chassis Intrusion Header, Support for Windows 10 64-bit, Support for Windows 11 64-bit, EasyTune utility, Smart Backup function, Xpress Install support
-
Support for XMP:Yes
