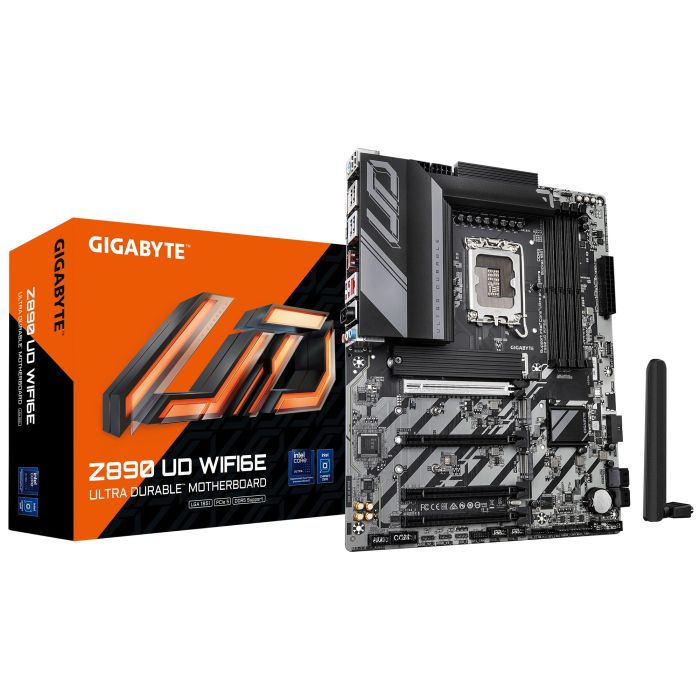

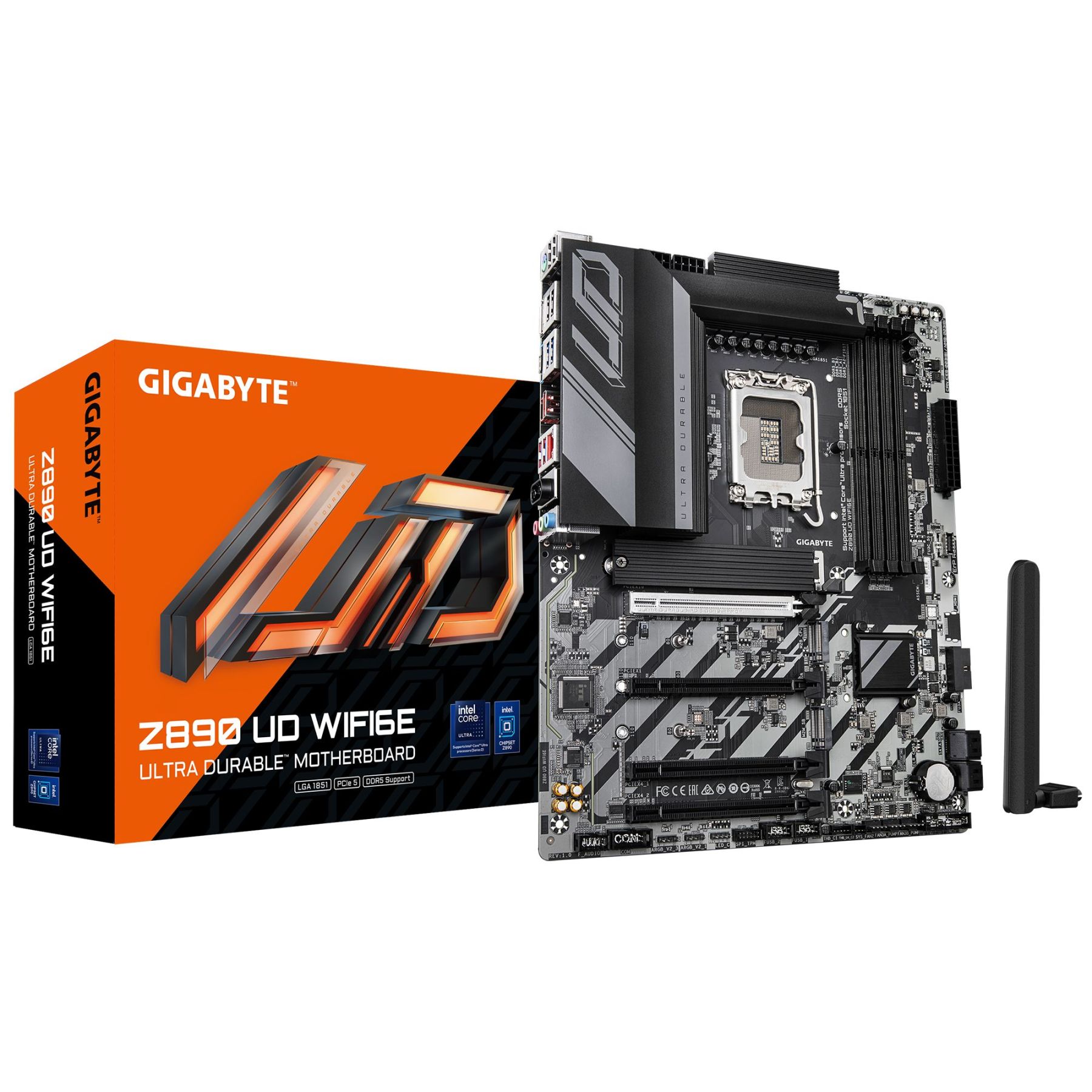

GIGABYTE Motherboard Z890 UD WIFI6E s1851 Z890 4xDDR5 M.2 Wi-Fi DP ATX

Features

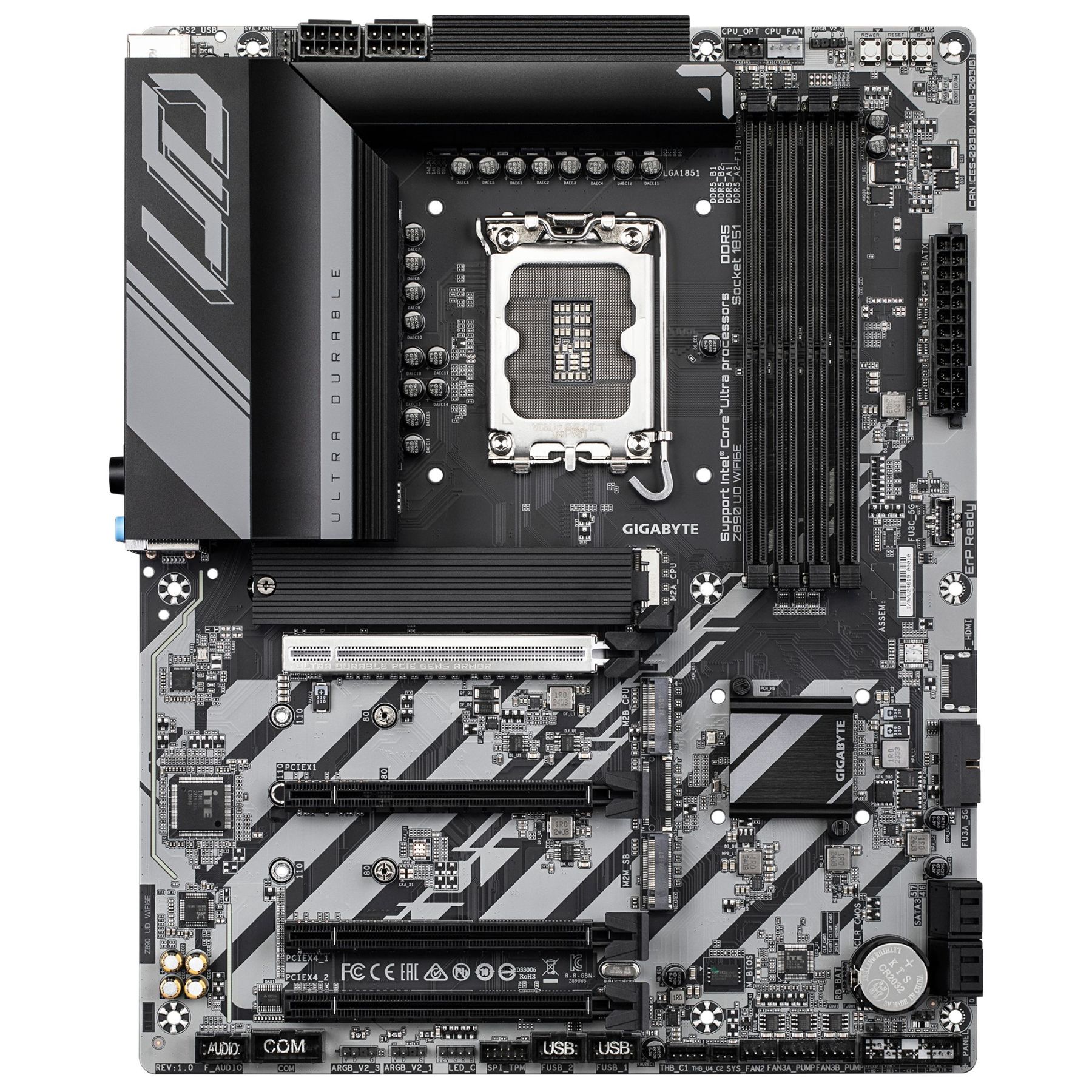

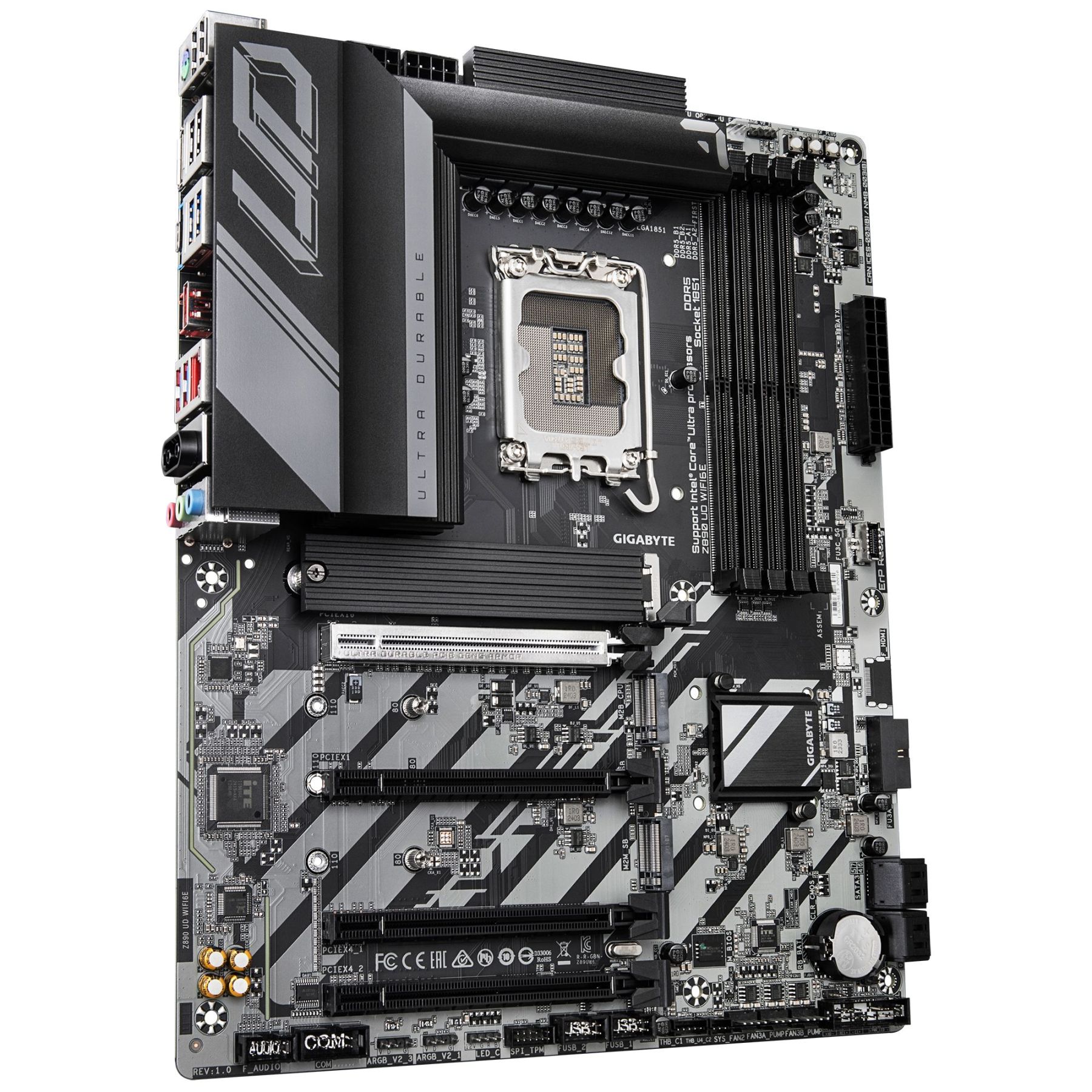

GIGABYTE Z890 UD WIFI6E is designed for building PCs based on Intel Core Ultra Series 2 processors. The LGA1851 socket and Intel Z890 chipset form a modern platform for productive desktop systems with support for current memory, fast storage and expanded interfaces.

The Digital Twin 12+1+2 phases VRM power design with 60A DrMOS, 2X Copper PCB, quality chokes and capacitors is aimed at stable CPU operation under load. Two 8-pin ATX 12V power connectors help provide the platform with the power reserve needed for productive configurations.

The board has 4 DDR5 DIMM slots with support for up to 256 GB of system memory. Frequencies up to 9200 MT/s in OC mode, dual-channel architecture, XMP profiles and CUDIMM support provide room for memory tuning for different scenarios - from workstation use to gaming PCs.

The main PCIe 5.0 x16 slot with EZ-Latch quick release is provided for a graphics card or compatible NVMe SSD. Additional PCIe 4.0 x4 and PCIe 4.0 x1 slots allow expansion cards, controllers, capture adapters, network cards or other hardware to be installed.

Storage can be organized through three M.2 connectors and four SATA 6Gb/s ports. One M.2 works through PCIe 5.0, another through PCIe 4.0, and the third supports SATA and PCIe 4.0, allowing a system to combine fast NVMe SSDs and classic SATA drives.

Networking includes 2.5GbE LAN and Wi-Fi 6E with 2.4, 5 and 6 GHz bands, as well as Bluetooth 5.3. The rear panel provides USB4 Type-C with DisplayPort, a separate DisplayPort, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, RJ-45, SMA antenna connectors and audio jacks for peripherals, displays and network connections.

Technologies (used)

• Intel Z890 Express Chipset
• LGA1851
• Intel Core Ultra Series 2
• Digital Twin 12+1+2 phases VRM
• 60A DrMOS
• 2X Copper PCB
• UD Solid Pin
• DDR5
• D5 Bionic Corsa
• XMP
• CUDIMM
• PCIe 5.0 x16
• PCIe UD Slot
• EZ-Latch
• M.2 Thermal Guard
• VRM Thermal Armor Advanced
• USB4 Type-C
• DisplayPort 2.1
• Wi-Fi 6E
• Bluetooth 5.3
• 2.5GbE LAN
• WIFI EZ-Plug
• Q-Flash Plus
• GIGABYTE Control Center
• RGB FUSION
• Smart Backup

Technical specifications

• Device type: motherboard
• Brand: GIGABYTE
• Model: Z890 UD WIFI6E
• Revision: 1.0
• Form factor: ATX
• Dimensions: 30.5 x 24.4 cm
• Socket: LGA1851
• Supported processors: Intel Core Ultra Processors
• Chipset: Intel Z890 Express
• Memory type: DDR5
• Memory slots: 4 x DDR5 DIMM
• Maximum memory capacity: 256 GB
• Maximum single module capacity: 64 GB
• Memory architecture: dual channel
• Memory frequency support: up to 9200 MT/s OC
• XMP support: yes
• CUDIMM support: yes
• ECC UDIMM support: yes, operates in non-ECC mode
• Main expansion slot: 1 x PCI Express x16
• Main slot mode: PCIe 5.0 x16
• Additional expansion slots: 2 x PCI Express x16 PCIe 4.0 x4, 1 x PCI Express x16 PCIe 4.0 x1
• Number of M.2 connectors: 3
• CPU M.2: 1 x PCIe 5.0 x4/x2, 1 x PCIe 4.0 x4/x2
• Chipset M.2: 1 x SATA or PCIe 4.0 x4/x2
• Supported M.2 sizes: 25110, 22110, 2580, 2280
• SATA: 4 x SATA 6Gb/s
• RAID for NVMe SSD: RAID 0, RAID 1, RAID 5, RAID 10
• RAID for SATA: RAID 0, RAID 1, RAID 5, RAID 10
• Audio codec: Realtek Audio CODEC
• Audio: High Definition Audio
• Audio channels: 2/4/5.1/7.1
• LAN: Realtek 2.5GbE
• LAN speed: 2.5 Gbps, 1 Gbps, 100 Mbps
• Wireless module for PCB rev. 1.0: Intel Wi-Fi 6E AX211
• Wi-Fi: 802.11 a/b/g/n/ac/ax
• Wi-Fi bands: 2.4 GHz, 5 GHz, 6 GHz
• 11ax 160 MHz support: yes
• Bluetooth: 5.3
• Rear USB4: 1 x USB Type-C
• Rear USB 3.2 Gen 2: 1 x Type-A
• USB 3.2 Gen 1: 6 ports, 4 rear and 2 through internal header
• USB 2.0/1.1: 8 ports, 4 rear and 4 through internal headers
• Internal USB Type-C: USB 3.2 Gen 1
• USB4 Type-C video output: DisplayPort
• DisplayPort output: 1
• Maximum DisplayPort resolution: 3840 x 2160 at 144 Hz
• DisplayPort support: version 2.1
• Power connectors: 1 x 24-pin ATX, 2 x 8-pin ATX 12V
• Fan headers: 1 x CPU fan, 1 x CPU fan/water cooling pump, 2 x system fan, 2 x system fan/water cooling pump
• RGB headers: 3 x addressable RGB Gen2, 1 x RGB LED
• Thunderbolt add-in card connectors: 2
• TPM header: 1
• Serial port header: 1
• Onboard power button: yes
• Onboard reset button: yes
• Q-Flash Plus button: yes
• Clear CMOS jumper: yes

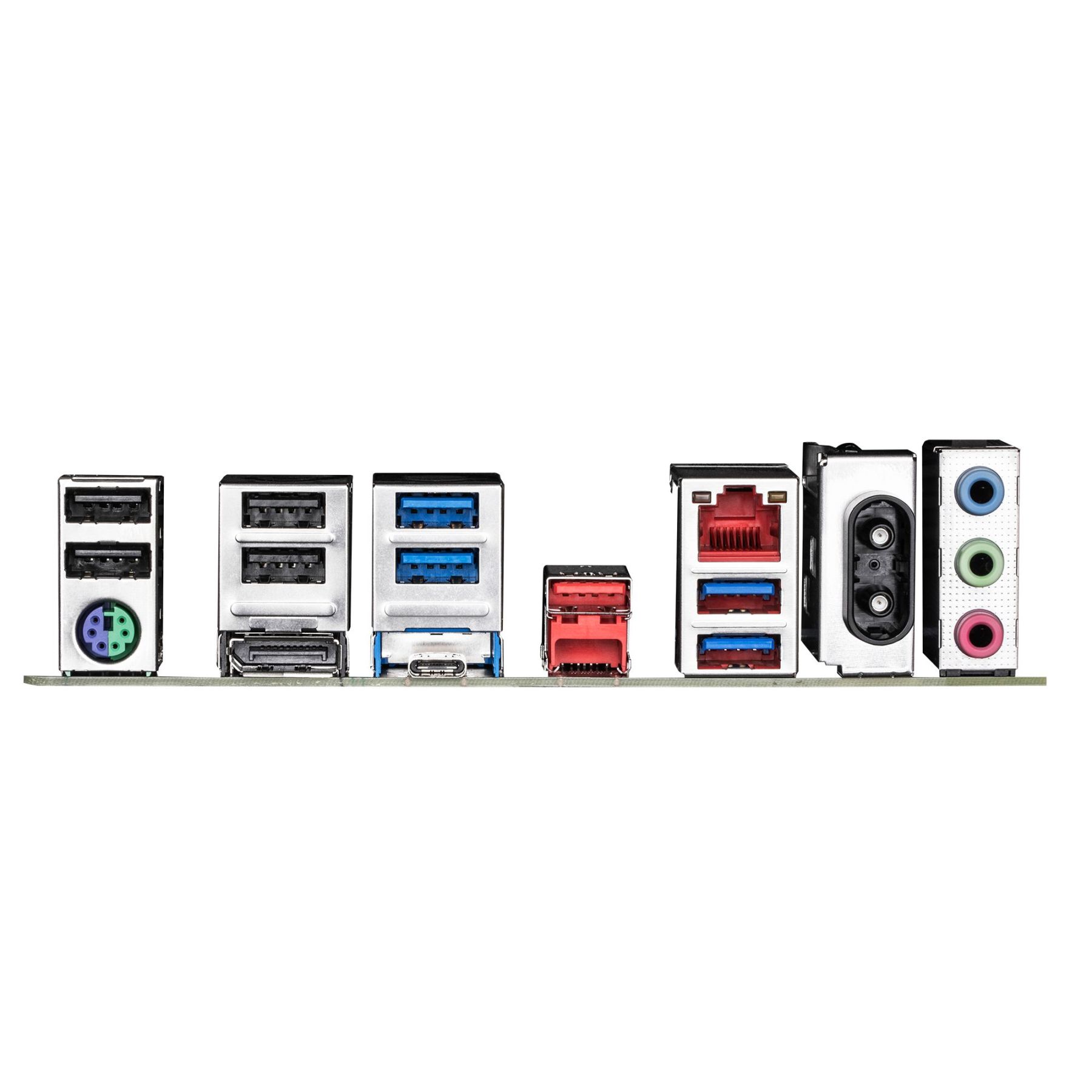

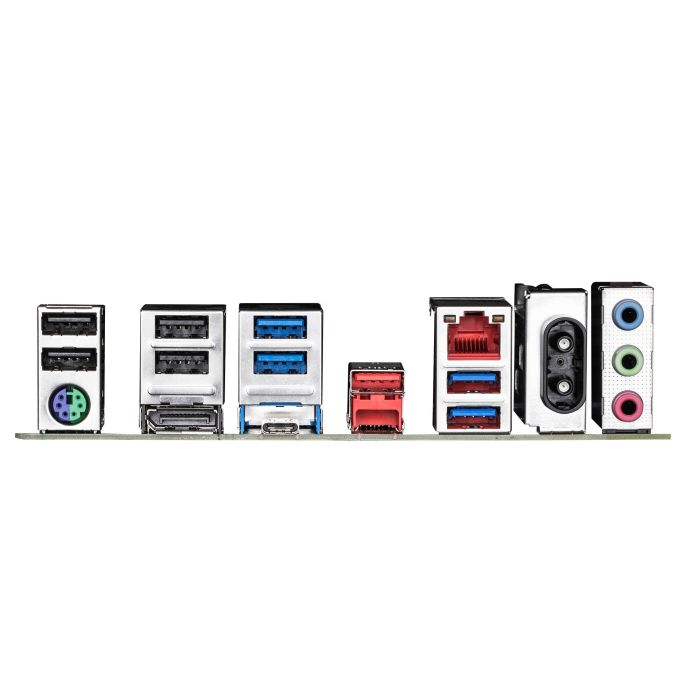

• Rear panel: 4 x USB 2.0/1.1, PS/2, DisplayPort, 4 x USB 3.2 Gen 1, USB4 Type-C, USB 3.2 Gen 2 Type-A, RJ-45, 2 x SMA, 3 x audio jack
• System health monitoring: voltage, temperature, fan speed, water cooling flow, fan fail warning
• BIOS: AMI UEFI BIOS
• BIOS capacity: 256 Mbit
• GIGABYTE Control Center support: yes
• Q-Flash support: yes
• Q-Flash Plus support: yes
• Smart Backup support: yes
• Supported OS: Windows 11 64-bit
• Included items: no data available for the specified parameters

Who it's for

• For PC builders using Intel Core Ultra Series 2 processors
• For gamers who need PCIe 5.0, DDR5 and fast networking
• For enthusiasts tuning DDR5, XMP and BIOS parameters
• For content creators using fast NVMe SSDs and modern interfaces
• For IT specialists building productive ATX workstations
• For people who need a board with Wi-Fi 6E, 2.5GbE LAN, USB4 and three M.2 connectors

Conclusion

GIGABYTE Z890 UD WIFI6E is an ATX motherboard based on Intel Z890 for Intel Core Ultra Series 2 processors with the LGA1851 socket. The model combines up to 256 GB DDR5, PCIe 5.0 x16, three M.2 connectors, Wi-Fi 6E, 2.5GbE LAN, USB4 Type-C, DisplayPort 2.1, Q-Flash Plus and a reinforced power design, making it suitable for modern PCs with upgrade potential.
