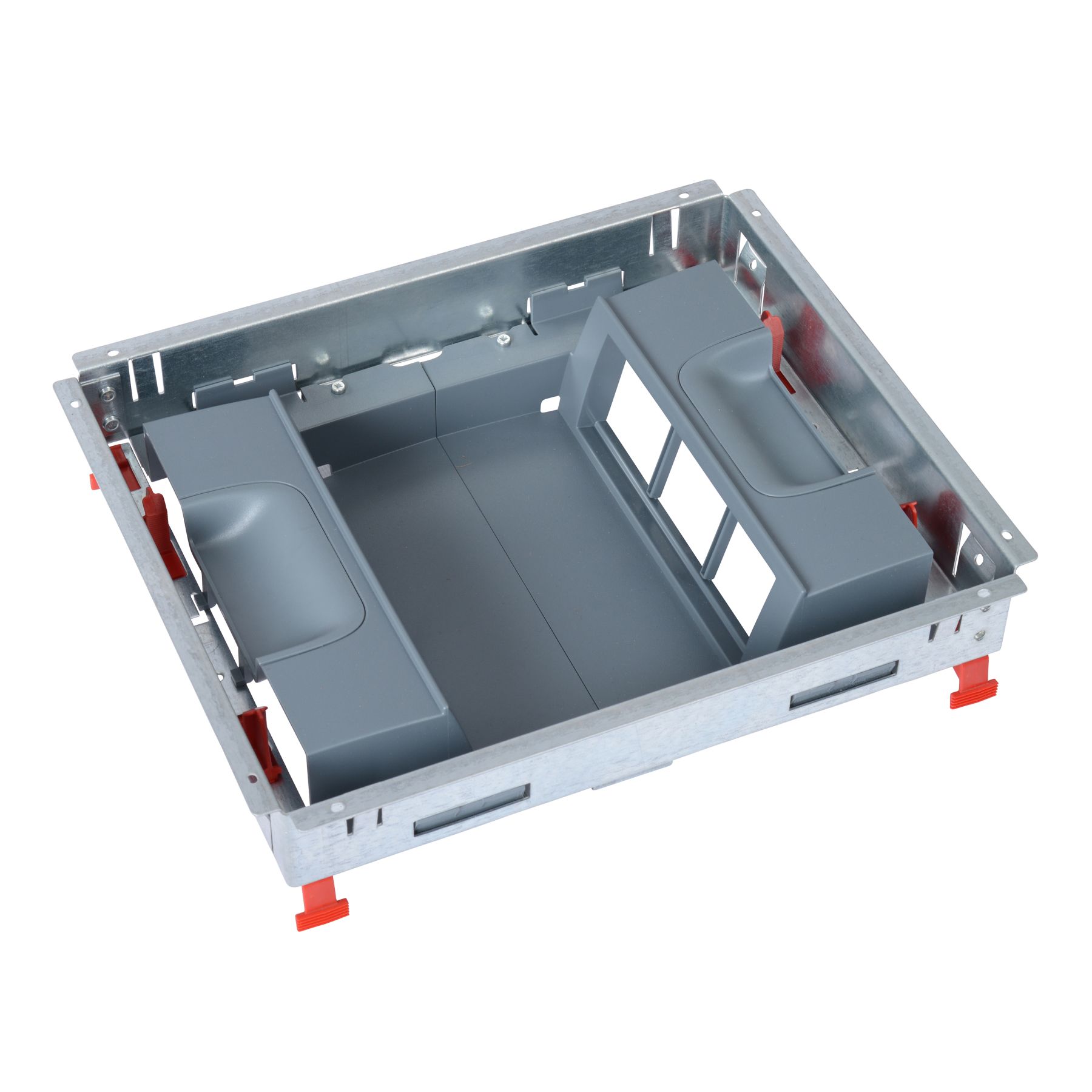

The basis for the vertical installation of EUI fixed standard version 2 x 6 mod.

Features

The Legrand base for vertical installation of wiring devices, fixed, standard 2×6-module version is designed for installing wiring devices in floor boxes. The vertical arrangement of mechanisms makes it suitable for shallow floor installations starting from 68 mm.

The design supports various plug types, including straight plugs, making it practical for floor boxes with limited internal depth. The base is specially adapted for renovation projects and upgrades of existing electrical installations.

The supports are compatible with Legrand Mosaic and Arteor wiring devices, enabling integration with different Legrand product ranges.

The frame is made of galvanized steel for corrosion resistance. The fixed standard design accommodates a 2×6-module configuration.

The base complies with IEC/EN 60670-23. When installed in a floor box with the cover closed, it provides an IP24 protection rating, helping prevent accidental contact with electrical connections and protecting against water ingress. The product is intended for indoor use only.

Technologies (Used)

• Vertical installation
• Galvanized steel frame
• Legrand Mosaic compatibility
• Legrand Arteor compatibility
• IEC/EN 60670-23 compliance
• IP24 protection with the floor box cover closed

Technical Specifications

• Brand: Legrand
• Product type: base for vertical installation of wiring devices
• Design: fixed
• Version: standard
• Configuration: 2×6 modules
• Number of device positions: 6
• Number of cable entries: 1
• Frame material: galvanized steel
• Mounting method: screw fixing
• Number of compensators: 4
• Compatibility: Legrand Mosaic, Legrand Arteor
• Minimum floor depth: from 68 mm
• Standard: IEC/EN 60670-23
• Protection rating: IP24
• Application: indoor use only
• Length: 281.3 mm
• Width: 236.3 mm
• Depth: 67.7 mm

Who Is It For

• For floor-mounted electrical installation systems
• For office environments
• For commercial buildings
• For electrical system renovation projects
• For installations using Legrand Mosaic and Arteor wiring devices

Conclusion

The Legrand base for vertical installation of wiring devices, fixed, standard 2×6-module version is designed for floor boxes with limited installation depth. Compatibility with Legrand Mosaic and Arteor ranges, a galvanized steel frame, screw mounting, and compliance with IEC/EN 60670-23 make it a reliable solution for indoor electrical installations in commercial and office environments.
