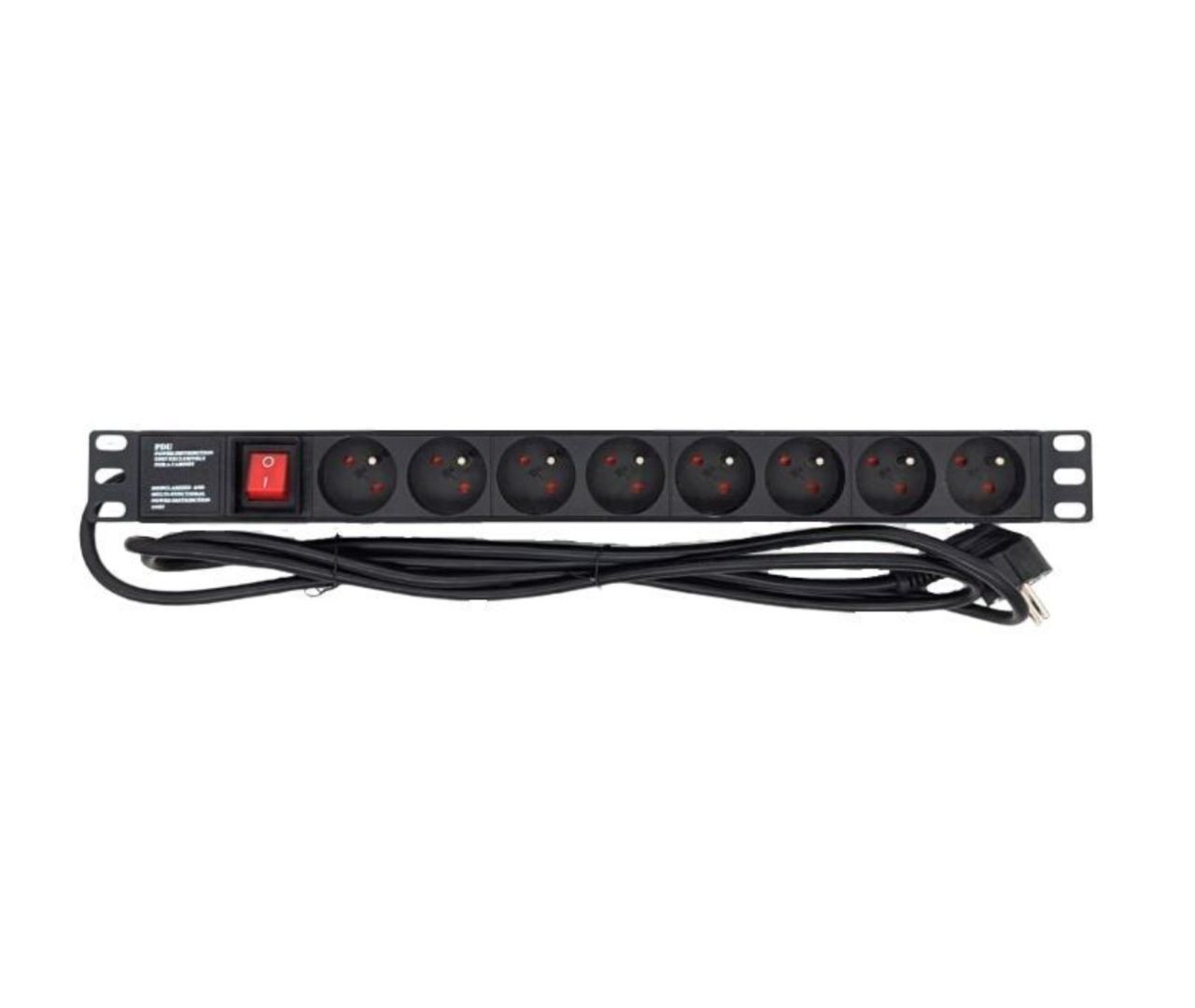

8XDIN49440 SOCKET SCHUKO GROUP PLUG 1U CASING, ON/OFF SWITCH, DIN 49441 PLUG

Features

MIRSAN MR.PRZ1U8O.SC is designed for power distribution inside 19" telecommunication and server cabinets. The 1U format allows the unit to be installed in standard rack space without taking extra usable cabinet height.

The device has 8 Schuko DIN 49440 outlets for connecting network, server, switching, or auxiliary equipment. This configuration suits centralized power supply for several devices from one unit within a rack.

The built-in switch allows power supply to connected equipment to be controlled. The Schuko DIN 49441 plug and 1.8 m cable provide connection of the PDU to the power mains.

The housing is made of natural anodized aluminum. This material suits mounting solutions in cabinets and racks, while the black plastic elements match a restrained technical appearance.

Rated voltage is 230 V AC, and maximum load is 16 A / 3680 W. The IP20 protection rating is intended for indoor use and closed installation cabinets without exposure to moisture or significant dust.

The delivery set includes the extension unit with brackets. This allows the unit to be installed in a rack and fixed in the operating position.

Technologies (used)

• PDU format for power distribution
• Installation in a 19" cabinet or rack
• 1U height
• 8 Schuko DIN 49440 outlets
• Schuko DIN 49441 plug
• On / off switch
• Anodized aluminum housing
• 1.8 m power cable
• 1.5 mm² cable conductor cross-section
• IP20 protection rating
• Mounting brackets

Technical specifications

• Name: MIRSAN MR.PRZ1U8O.SC
• Article number: MR.PRZ1U8O.SC
• Type: power distribution unit PDU
• Mounting format: 19"
• Height: 1U
• Number of outlets: 8
• Outlet type: Schuko DIN 49440
• Plug: Schuko DIN 49441
• Power switch: yes
• Rated voltage: 230 V AC
• Maximum load: 16 A / 3680 W
• Protection rating: IP20
• Housing material: anodized aluminum
• Housing color: natural aluminum
• Plastic element color: black, similar to RAL 9005
• Cable length: 1.8 m
• Cable color: black
• Cable conductor cross-section: 1.5 mm²
• Package contents: extension unit with brackets

Who it's for

• For network administrators
• For system administrators
• For server cabinet installation engineers
• For telecommunication infrastructure specialists
• For data center service engineers
• For integrators building structured cabling systems and network nodes

Conclusion

MIRSAN MR.PRZ1U8O.SC is a 19" 1U PDU for power distribution in server and telecommunication cabinets. The model combines 8 Schuko outlets, a power switch, aluminum housing, 1.8 m cable, and mounting brackets, making it suitable for organizing equipment power in a rack.
