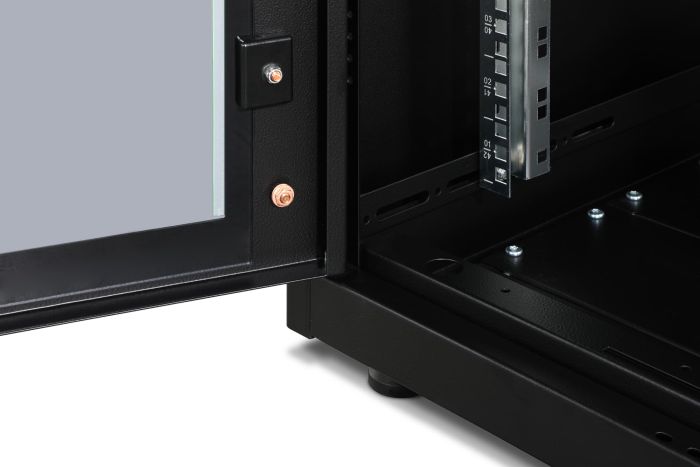

DIGITUS 42U network rack, Unique 2053x600x800 mm, color black (RAL 9005)

Features

The DIGITUS Unique series network cabinet is designed for use in network and telecommunications infrastructures. The construction provides sufficient space for routing various types of cables.

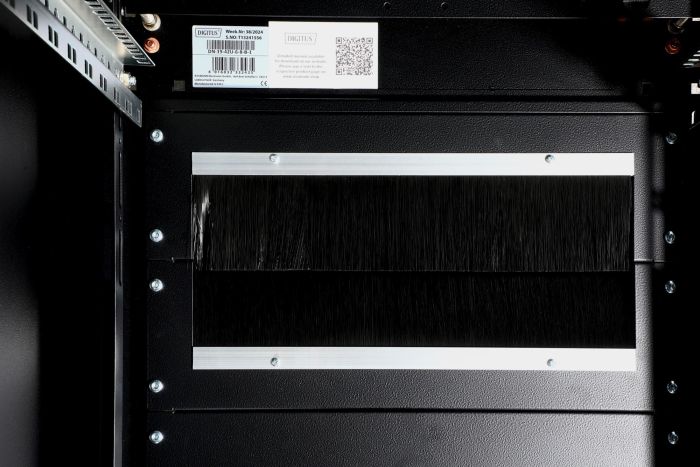

The modular base chassis with removable panels ensures access to the internal space and equipment installation. Cable entries with brushes are located at the base of the cabinet on the rear side. Additional rear brush strips are installed above and below the rear doors.

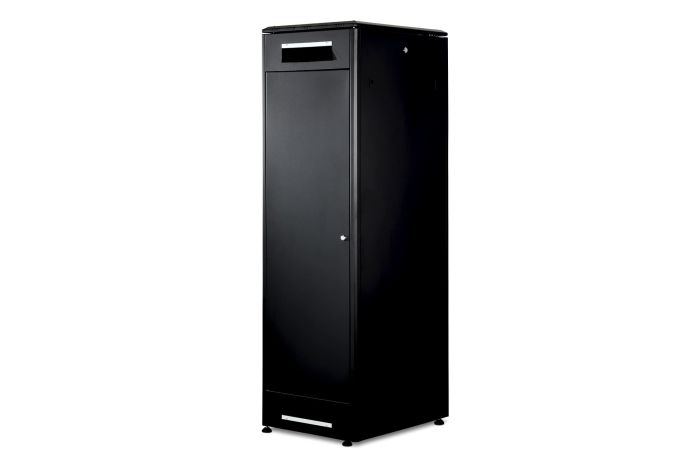

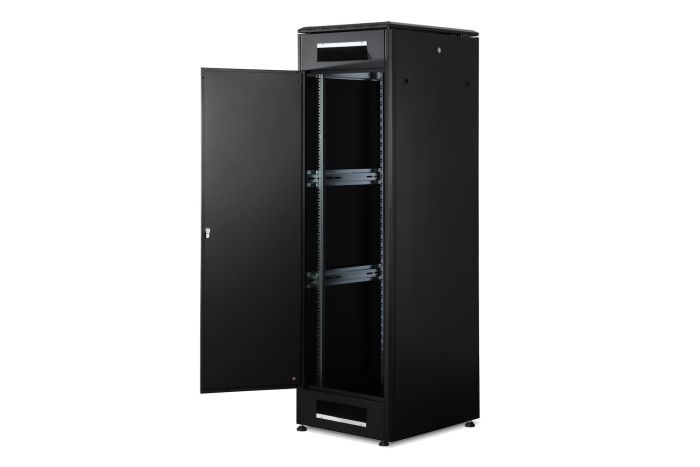

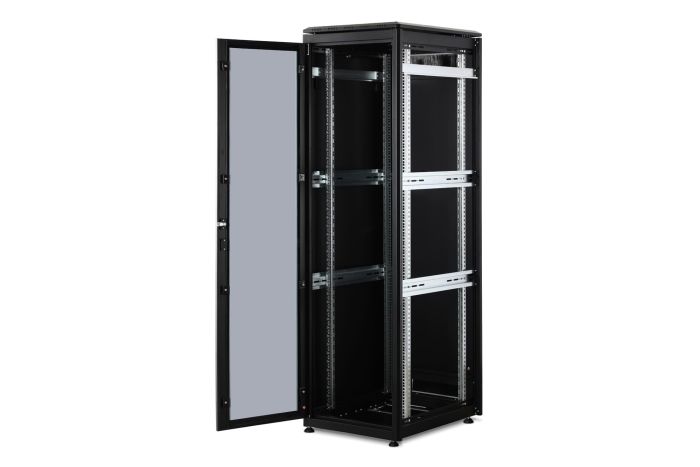

The front door is made of glass within a steel frame. The rear door is made of steel.

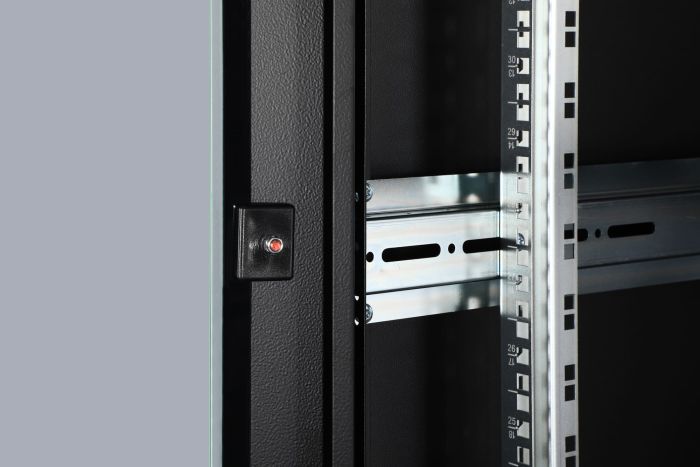

Internal 19" mounting rails are installed at the front and rear and are adjustable in depth. The rails are marked with height units and connected with braces to increase structural rigidity.

The enclosure is made of sheet steel up to 1.5 mm thick with powder coating. Removable side panels and lockable doors provide access to the equipment.

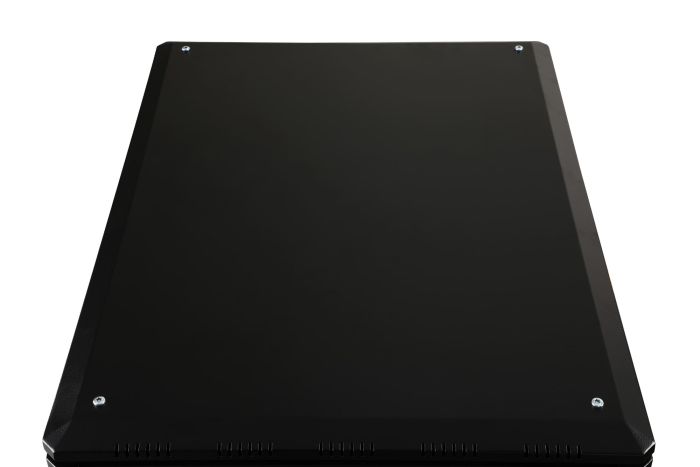

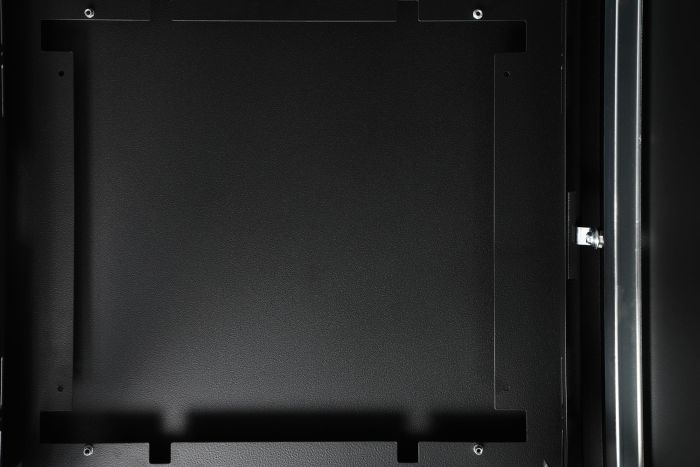

The construction allows full disassembly. The roof is prepared for installation of a fan module.

Technologies (used)

• Modular cabinet construction
• 19" mounting rails
• Cable management system
• Cable entries with brushes
• Rear brush strips

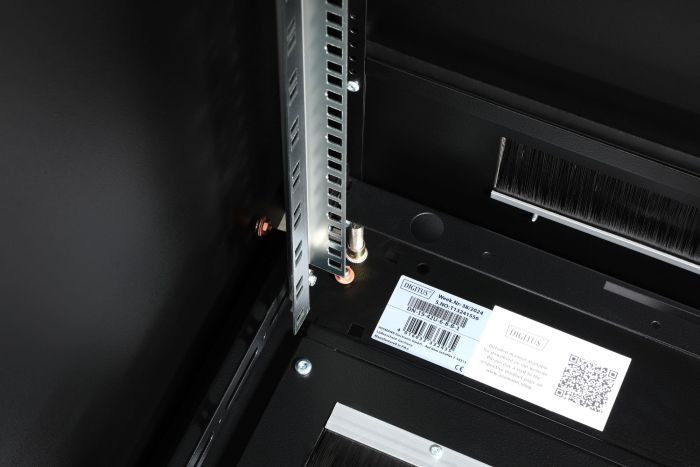

• Grounding points
• Fan module preparation

Technical specifications

• Article: DN-1942U-6/8-B-1
• Type: network cabinet
• Form factor: 19"
• Height: 42U
• Width: 600 mm
• Depth: 800 mm
• Load capacity: up to 1200 kg
• Protection class: IP20
• Front door: glass with steel frame, single-leaf
• Rear door: steel, single-leaf
• Side panels: removable, both sides
• Mounting depth: 363–543 mm
• Material: sheet steel
• Coating: powder-coated
• Color: black (RAL 9005)
• Mounting rails: 19", galvanized, adjustable
• Additional: cable entries with brushes, grounding points, fan module preparation
• Supplied assembled

For whom

• For network and telecommunications infrastructures
• For installation of active and passive network equipment
• For cable infrastructure organization
• For system administrators and integrators

Conclusion

The DIGITUS 19" network cabinet provides installation of standard 19" equipment with cable management and component access. The construction combines durability, modularity and conditions for stable operation.
