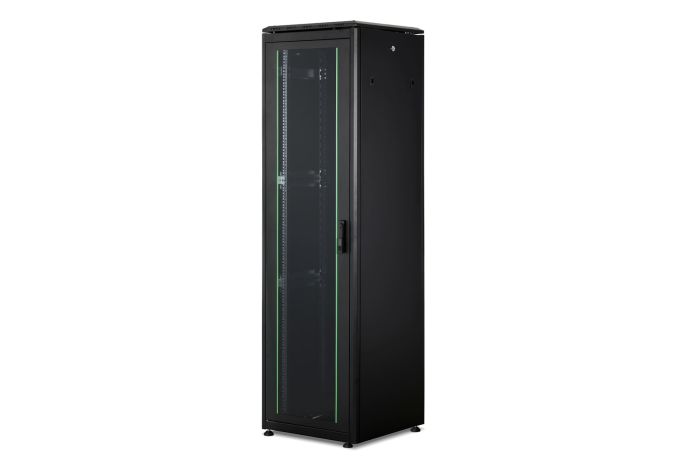

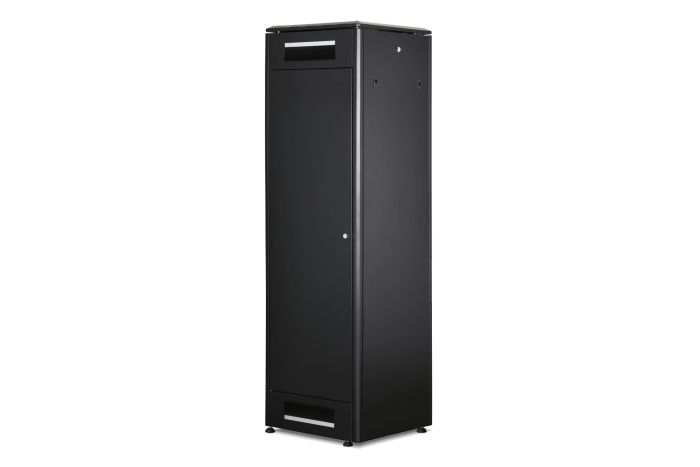

DIGITUS 42U network cabinet, Unique, 2053x600x600 mm, perforated front and rear door, black (RAL 9005)

Features

The DIGITUS 19" network cabinet is designed for use in network and telecommunications infrastructures where convenient equipment placement and cable management are required. The construction provides sufficient space for routing various types of cables.

The modular base chassis with removable panels ensures access to the internal space and facilitates equipment installation. Cable entries with brushes are located at the base and the rear of the enclosure. Additional rear brush strips are installed above and below the rear doors.

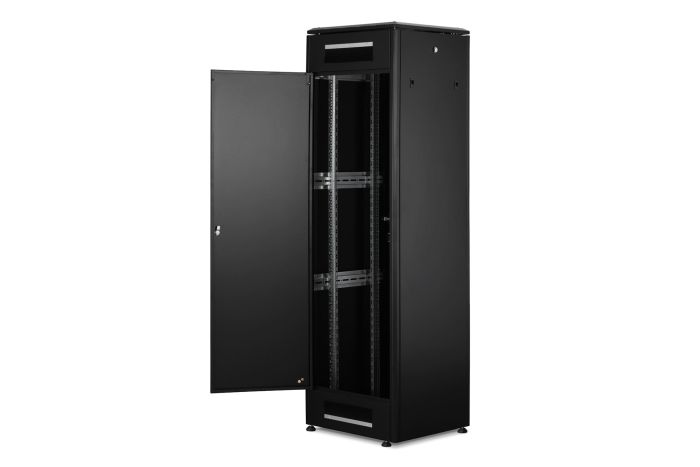

Perforated steel doors at the front and rear support air circulation. The construction enables passive cooling of installed equipment.

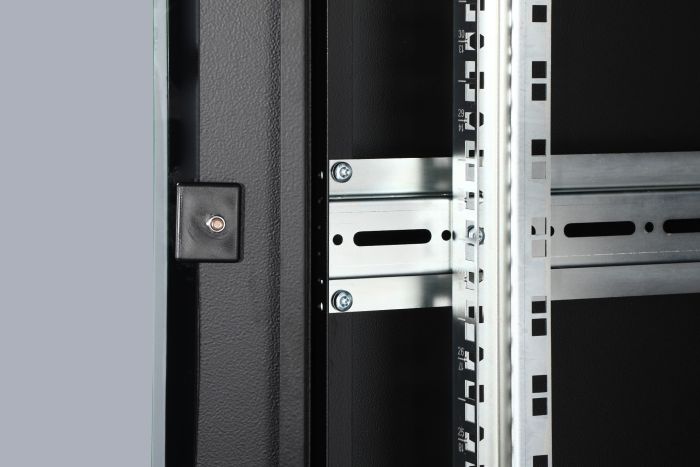

Internal 19" mounting rails are installed at the front and rear and are adjustable in depth. The rails are marked with height units and connected with braces to increase rigidity.

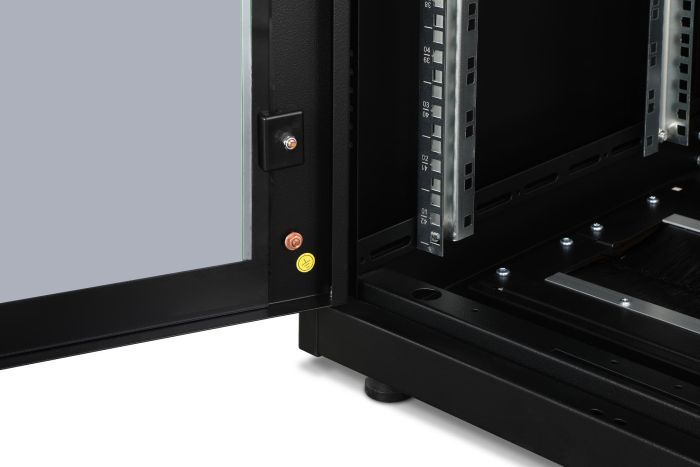

The enclosure is made of steel up to 1.5 mm thick with powder coating. Removable side panels and lockable doors provide access to the equipment.

The construction allows full disassembly. The roof is prepared for installation of a fan module.

Technologies (used)

• Modular cabinet construction
• Perforated doors
• 19" mounting rails
• Cable management system
• Cable entries with brushes
• Rear brush strips
• Grounding points
• Fan module readiness

Technical specifications

• Article: DN-1942U-6/6-PD-BL
• Type: network cabinet
• Form factor: 19"
• Height: 42U
• Width: 600 mm
• Depth: 600 mm
• Load capacity: up to 1200 kg
• Protection class: IP20
• Front door: perforated steel, single-leaf
• Rear door: perforated steel, single-leaf
• Side panels: removable, both sides
• Mounting depth: 363–543 mm
• Material: steel
• Coating: powder-coated
• Color: black (RAL 9005)
• Mounting rails: 19", galvanized, adjustable
• Additional: cable entries with brushes, grounding points, fan module preparation
• Supplied assembled

For whom

• For network and telecommunications infrastructures
• For installation of active and passive network equipment
• For cable infrastructure organization
• For system administrators and integrators

Conclusion

The DIGITUS 19" network cabinet provides installation of standard 19" equipment with cable management and component access. The construction combines strength, modularity, and conditions for stable operation.
