DIGITUS 42U server cabinet, Unique Server-N, 2053x600x1000 mm, black (RAL 9005)

Features

The DIGITUS 19" server cabinet is designed for use in infrastructures with high requirements for equipment placement and cable management. The design provides sufficient space for routing various types of cables.

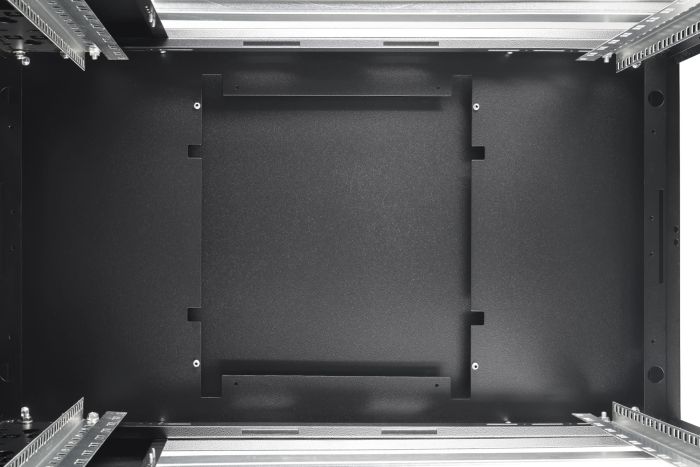

The modular base chassis with removable panels provides access to the internal space and allows equipment installation. Cable entries are available at the base and rear of the cabinet.

Perforated steel doors at the front and rear provide air circulation. The design supports passive cooling of the equipment.

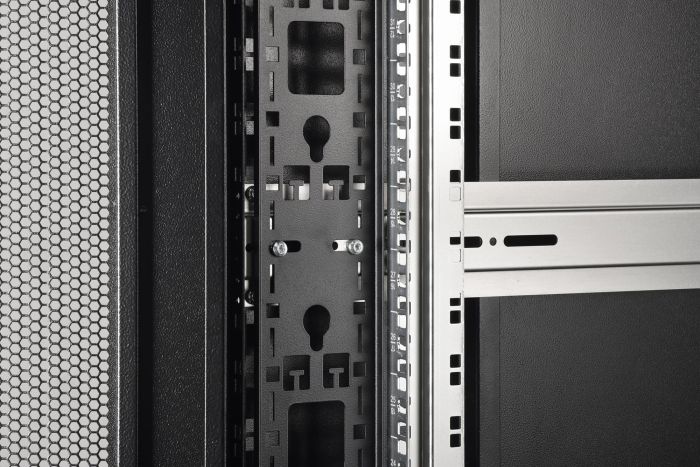

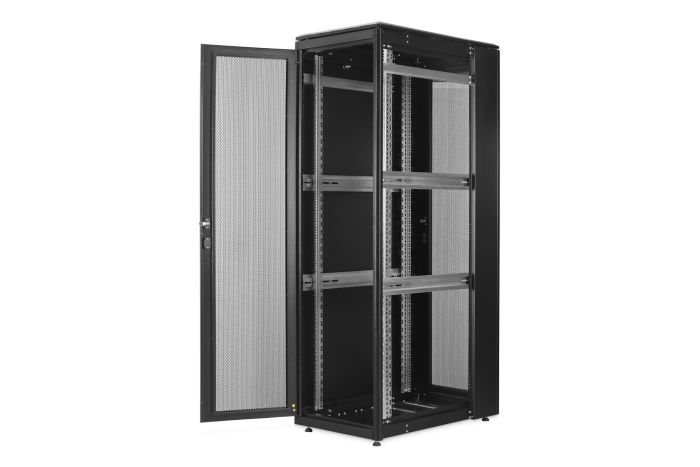

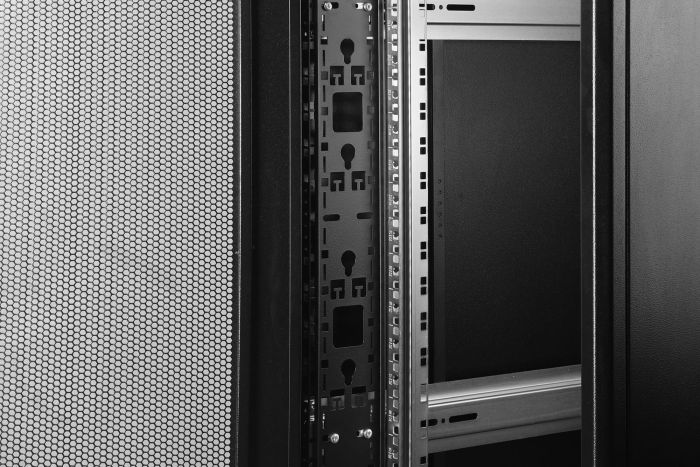

Internal 19" mounting rails are installed at the front and rear and can be adjusted in depth. The rails are marked with height units and connected with braces for increased structural rigidity.

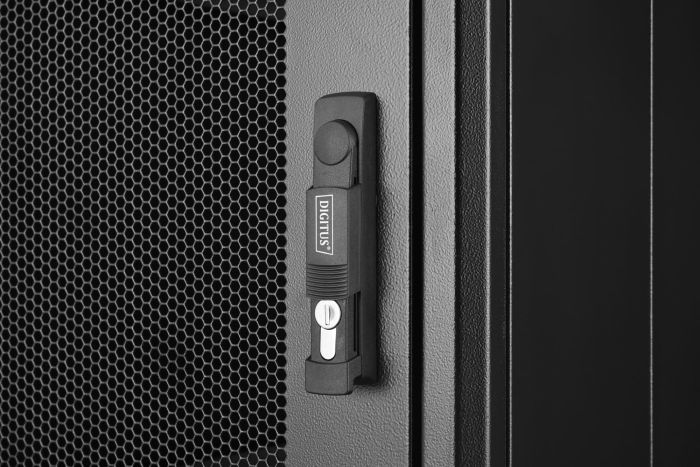

The cabinet is made of steel up to 1.5 mm thick with a powder coating. Removable side panels and lockable doors provide access to the equipment.

The design allows complete disassembly. The top panel is prepared for installation of a fan module.

Technologies (used)

• Modular cabinet design
• Perforated doors
• 19" mounting rails
• Cable management system

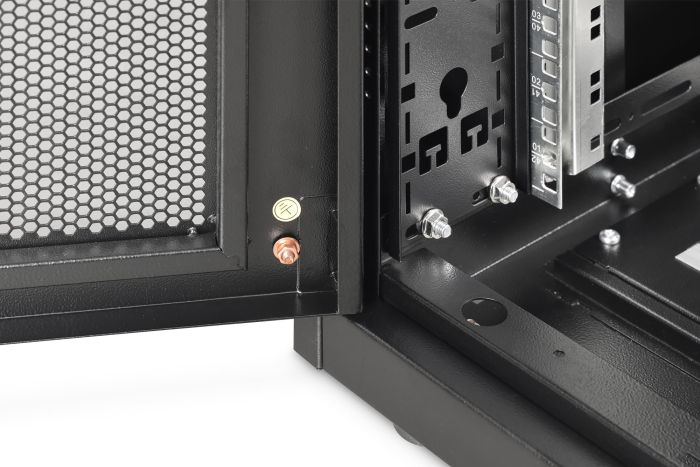

• Grounding points
• Fan module ready design

Technical specifications

• Model: DN-31302-B
• Type: server cabinet
• Form factor: 19"
• Height: 42U
• Width: 600 mm
• Depth: 1000 mm
• Load capacity: up to 1200 kg
• Protection class: IP20
• Front doors: perforated steel
• Rear doors: perforated steel
• Side panels: removable, both sides
• Mounting depth: 688–943 mm
• Material: steel up to 1.5 mm
• Coating: powder coating
• Color: black (RAL 9005)
• Mounting rails: 19", galvanized, adjustable
• Additional: cable entries, PDU holders, grounding points
• Supplied assembled

Who it is for

• For server rooms and data centers
• For installing network equipment
• For cable infrastructure organization
• For system administrators and integrators

Conclusion

The DIGITUS 19" server cabinet provides installation of 19" equipment with cable organization and access to components. The design combines durability, modularity and conditions for stable operation.
