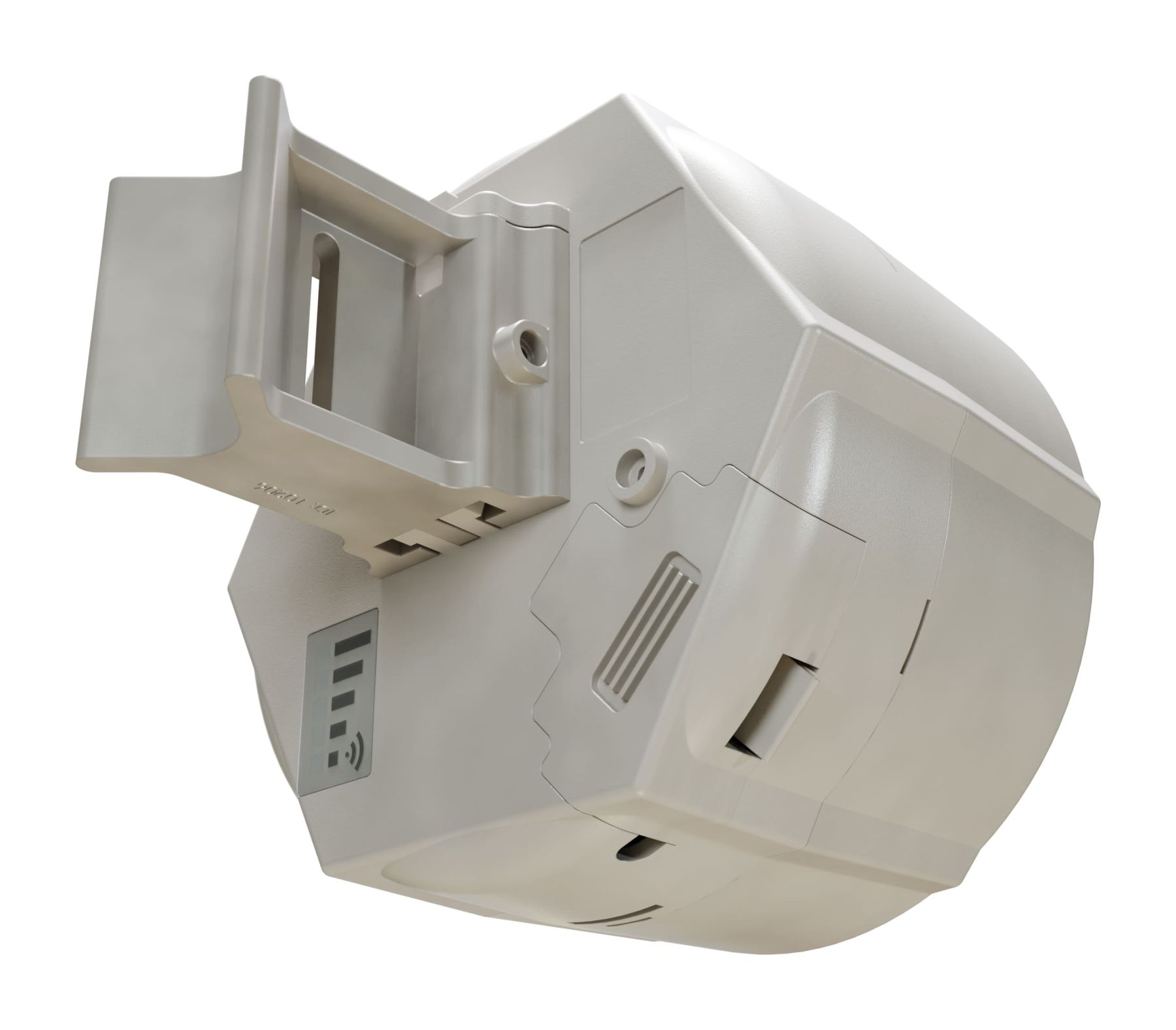

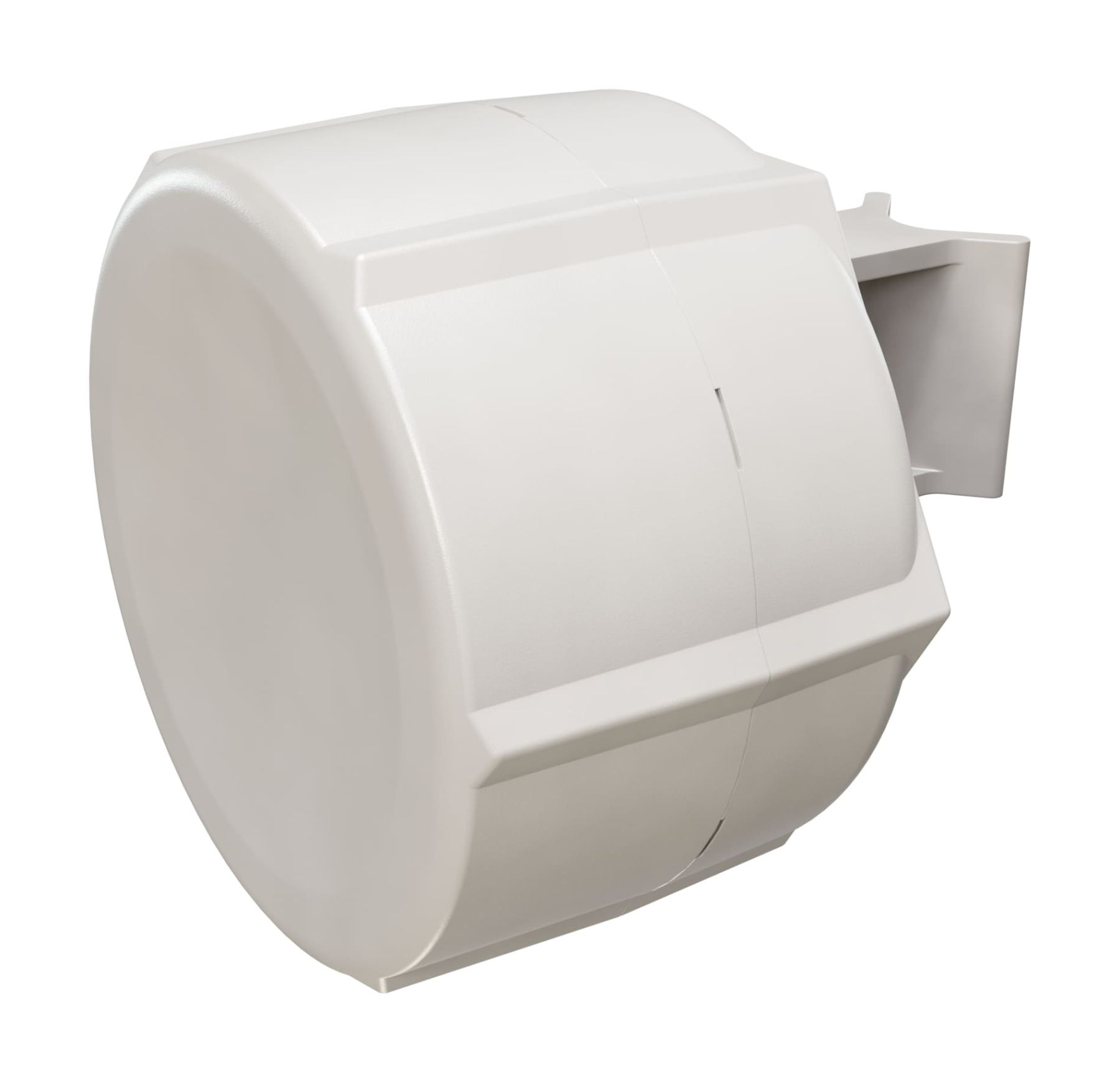

MikroTik Access Point SXT LTE7 kit

Features

The MikroTik SXT LTE7 kit is designed for mobile internet connectivity in remote locations, countryside properties, technical sites, and installations with challenging deployment conditions. The compact outdoor enclosure with IP54 protection is suitable for operation in both low and high temperatures.

The model is equipped with the R11e-LTE7 LTE Category 7 modem with carrier aggregation support. The ability to use multiple LTE bands simultaneously helps improve connection stability and data transfer performance in crowded networks or weak signal areas.

Dual Micro SIM slots allow backup connectivity through different mobile operators. This helps maintain continuous network access in locations with unstable cellular coverage.

The device includes two Ethernet ports with PoE support. Ether1 supports PoE-in, while Ether2 provides Passive PoE-out up to 57 V for powering additional equipment without a separate power cable.

The platform runs RouterOS v7 and is based on the QCA9531 processor. Passive cooling provides silent operation without moving components.

Technologies (used)

• LTE Category 7
• Carrier aggregation
• RouterOS v7
• PoE-in
• Passive PoE-out
• Dual Micro SIM
• MIMO 2x2
• Passive cooling
• Mini PCI-e
• IP54 enclosure

Technical specifications

• Model SXT LTE7 kit
• Product code SXTR&R11e-LTE7
• Architecture MIPSBE
• Processor QCA9531
• CPU frequency 650 MHz
• CPU cores 1
• RAM 64 MB
• Storage 16 MB FLASH
• Operating system RouterOS v7
• LTE category Cat 7
• LTE download speed up to 300 Mbps
• LTE upload speed up to 100 Mbps
• 3G download speed up to 42.2 Mbps
• 3G upload speed up to 5.76 Mbps
• Ethernet 2 × 10/100
• SIM slots 2 × Micro SIM
• Mini PCI-e 1
• PoE-in 802.3af/at
• PoE-out Passive PoE up to 57 V
• Power input 12–57 V
• Maximum power consumption 24 W
• Protection rating IP54
• Operating temperature -40 °C to +60 °C

Who it's for

• For countryside properties
• For farm installations
• For technical sites
• For backup LTE connectivity
• For remote locations

Conclusion

The MikroTik SXT LTE7 kit combines outdoor durability, LTE Category 7 performance, and carrier aggregation support for stable mobile internet connectivity in demanding environments. Dual SIM support together with PoE-in and PoE-out makes the model suitable for flexible network deployments in remote locations.
