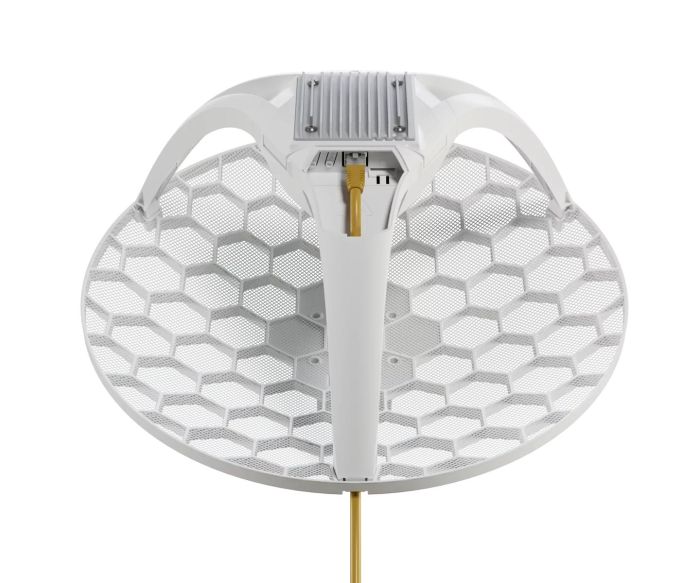

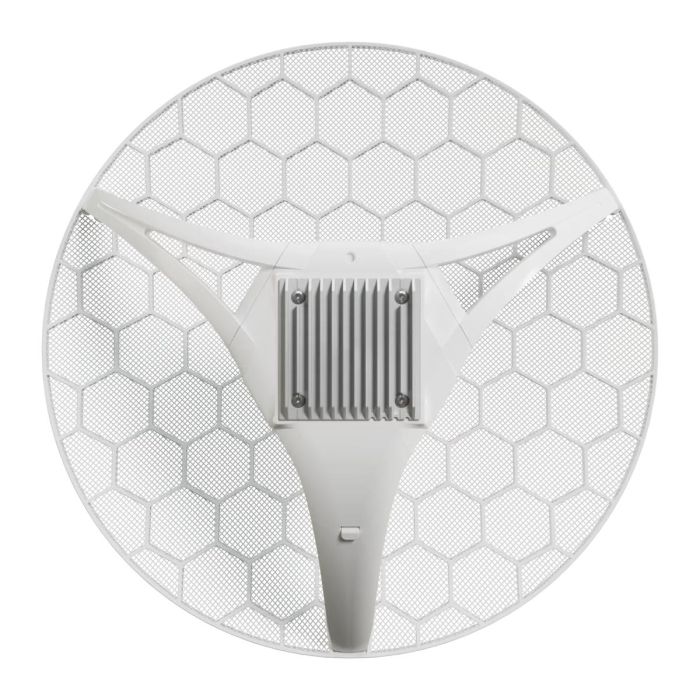

MikroTik Access Point LHGGR&R11e-LTE7

Features

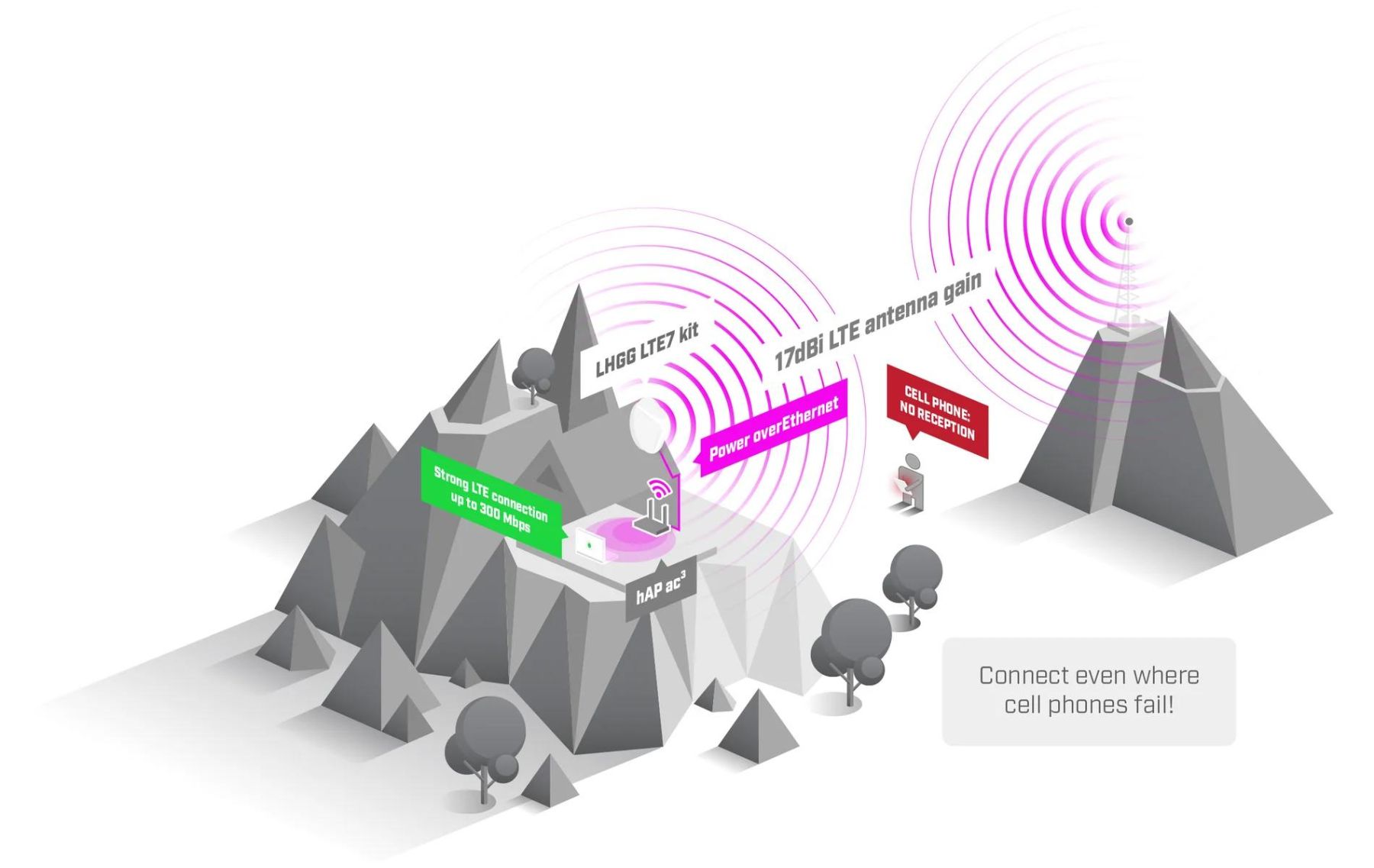

The MikroTik LHGG LTE7 is designed for LTE connectivity in locations with weak or unstable mobile coverage. The device combines an LTE Category 7 modem with a directional antenna for more stable signal reception at longer distances from base stations.

The model operates on RouterOS v7 and an ARM 64-bit platform powered by a dual-core 88F3720 processor running at 800 MHz. Its hardware configuration with 256 MB RAM provides stable networking performance and supports essential routing scenarios.

LTE Cat 7 support enables download speeds up to 300 Mbps and upload speeds up to 100 Mbps. The device supports a wide range of LTE FDD and TDD bands as well as 3G connectivity for compatibility with multiple mobile operators.

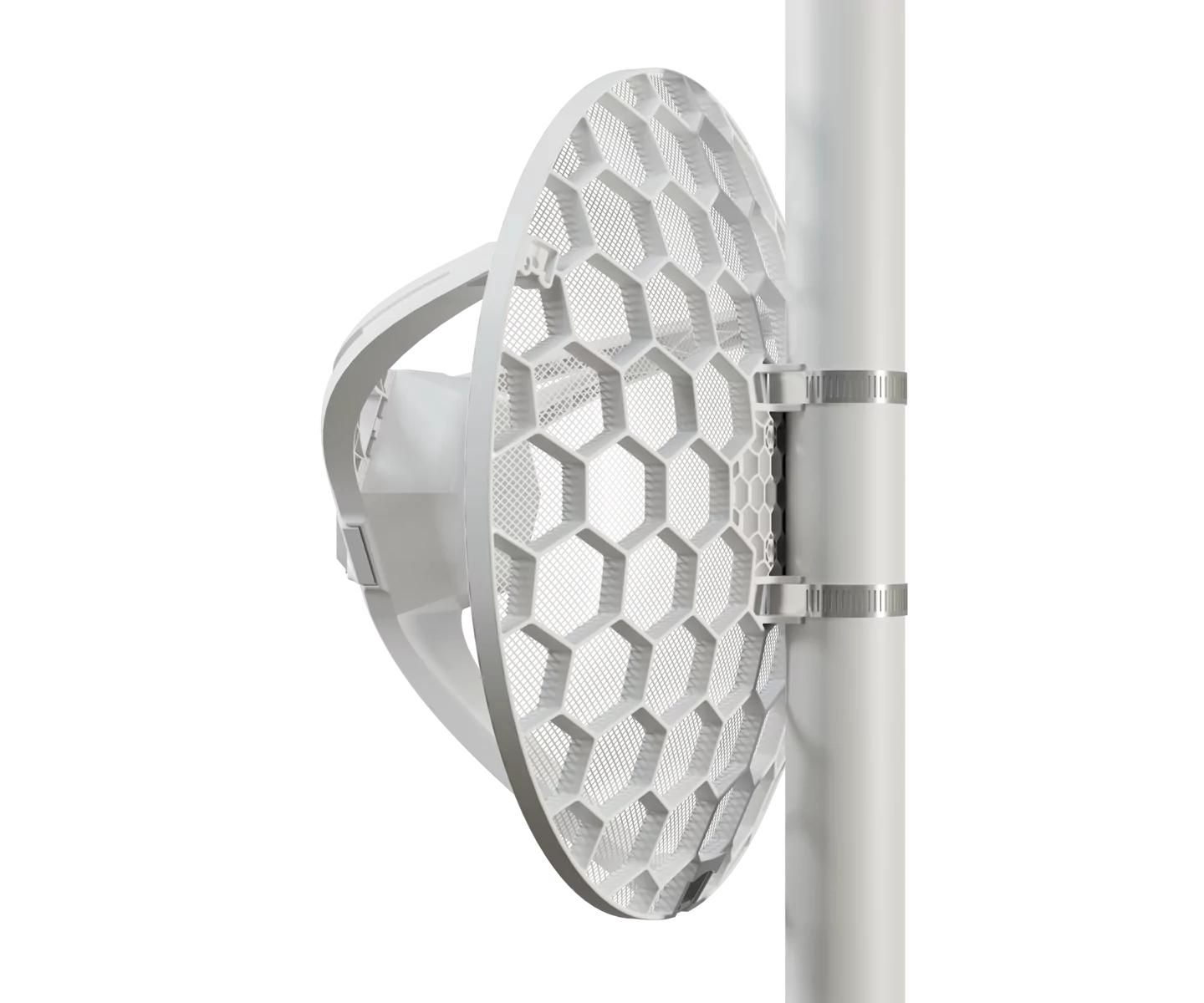

A Gigabit Ethernet port allows connection to routers or other networking devices without limiting local network throughput. PoE-In 802.3af/at support simplifies installation on poles, walls, and remote outdoor locations.

The IP54-rated enclosure is suitable for outdoor deployment. Passive cooling reduces the number of moving parts and supports stable operation across a wide operating temperature range.

Technologies (used)

• LTE Category 7
• RouterOS v7
• ARM 64-bit architecture
• PoE-In 802.3af/at
• Gigabit Ethernet
• 2x2 DL MIMO
• Passive cooling
• LTE FDD and TDD support
• Micro SIM support

Technical specifications

• Model LHGG LTE7
• Product code LHGGR&R11e-LTE7
• Architecture ARM 64-bit
• Processor 88F3720
• CPU cores 2
• CPU frequency 800 MHz
• RAM 256 MB
• FLASH storage 16 MB
• Operating system RouterOS v7
• LTE category Cat 7
• LTE download speed up to 300 Mbps
• LTE upload speed up to 100 Mbps
• 3G download speed up to 42.2 Mbps
• Ethernet 1 × 10/100/1000
• SIM slot Micro SIM
• PoE-In 802.3af/at
• Input voltage 12-57 V
• Maximum power consumption 8 W
• Protection rating IP54
• Operating temperature -40 °C to +70 °C

Who it's for

• For countryside property owners
• For remote installations
• For network installers
• For LTE connectivity in weak signal areas
• For backup internet connections

Conclusion

The MikroTik LHGG LTE7 combines LTE Cat 7 connectivity, a directional antenna, and RouterOS v7 for stable mobile networking in challenging signal conditions. With PoE-In support, Gigabit Ethernet, and an outdoor-ready design, the model is suitable for a wide range of network deployment scenarios.
