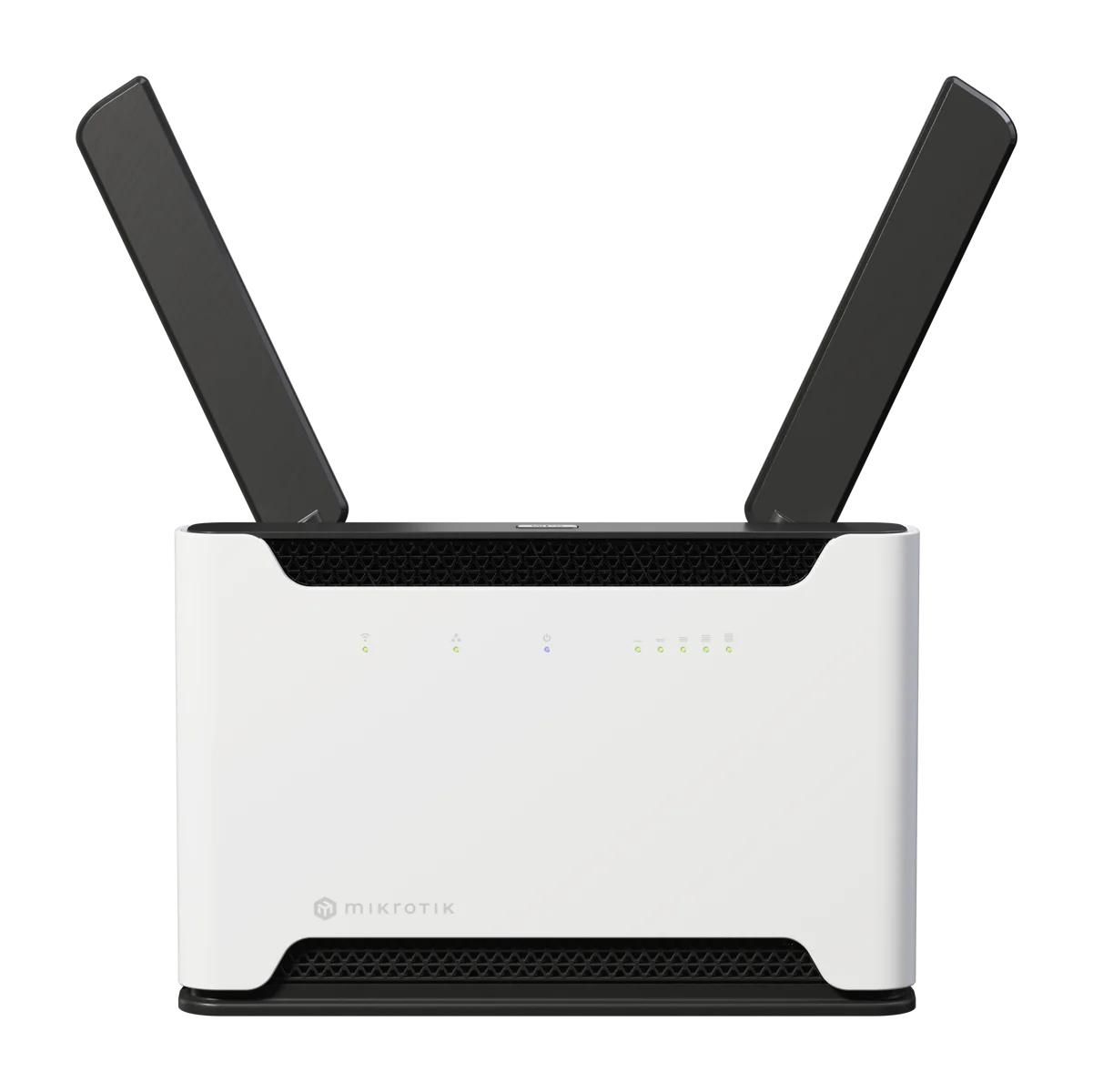

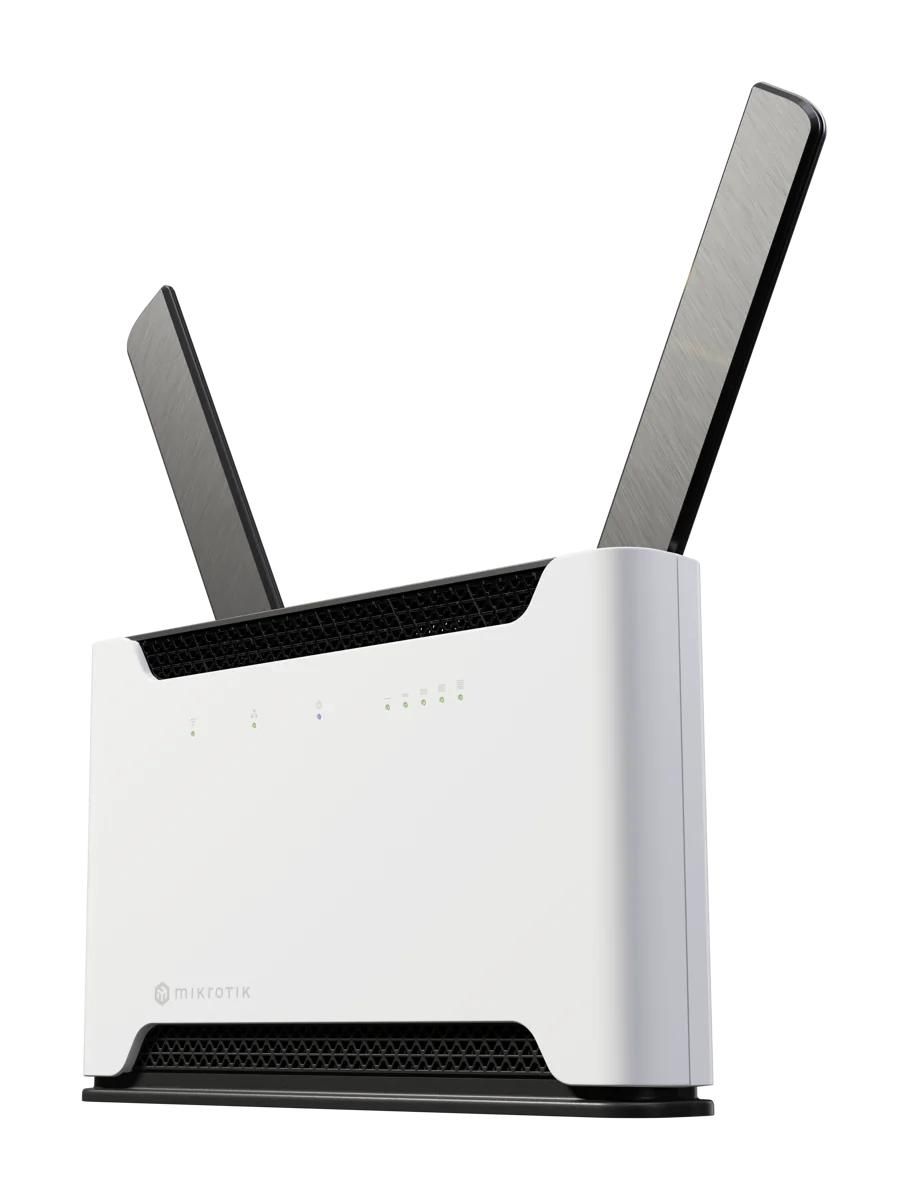

MikroTik Router Chateau 5G R17 ax (S53UG+5HaxD2HaxD-TC&RG650E-EU)

Features

The MikroTik Chateau 5G R17 ax is designed for high-speed 5G and LTE connectivity in home and office environments. The model combines a modern wireless platform, RouterOS v7, and flexible networking capabilities in a compact indoor router design.

The device supports LTE Category 20 with download speeds up to 2 Gbps and a wide range of 5G NSA and SA bands. Support for both eSIM and Micro SIM simplifies carrier connectivity and expands deployment flexibility without requiring physical SIM replacement.

Dual-band Wi-Fi 6 operates on both 2.4 GHz and 5 GHz frequencies with wireless speeds up to 574 Mbps and 1200 Mbps respectively. Support for 802.11ax standards helps provide more stable wireless connectivity for multiple connected devices.

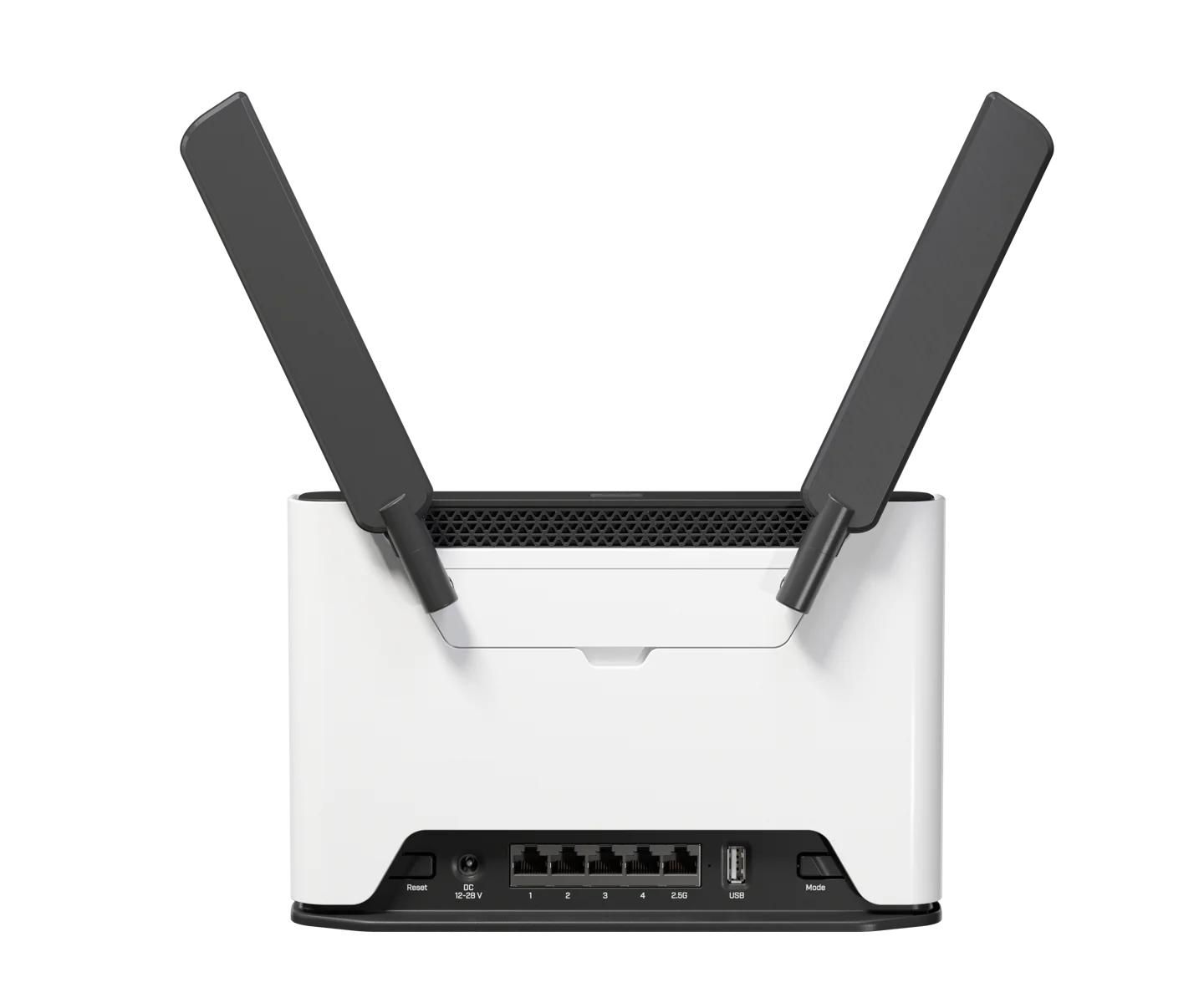

The model includes four Gigabit Ethernet ports and one 2.5G Ethernet port for high-speed local networking. A USB Type-A port allows connection of additional peripherals.

The ARM 64-bit platform with a quad-core IPQ-6010 processor and 1 GB RAM provides stable RouterOS v7 performance. Passive cooling and a wide operating temperature range support reliable operation in different environments.

Technologies (used)

• 5G NSA and SA
• LTE Category 20
• Wi-Fi 6
• RouterOS v7
• ARM 64-bit architecture
• eSIM support
• Micro SIM support
• 2.5G Ethernet
• Dual-band wireless
• Passive cooling

Technical specifications

• Model Chateau 5G R17 ax
• Product code S53UG+5HaxD2HaxD-TC&RG650E-EU
• Architecture ARM 64-bit
• Processor IPQ-6010
• CPU cores 4
• CPU frequency 864–1800 MHz
• RAM 1 GB
• Storage 128 MB NAND
• Operating system RouterOS v7
• LTE category Cat 20
• LTE download speed up to 2 Gbps
• LTE upload speed up to 211 Mbps
• 2.4 GHz Wi-Fi up to 574 Mbps
• 5 GHz Wi-Fi up to 1200 Mbps
• Wi-Fi standards 802.11a/b/g/n/ac/ax
• Ethernet 4 × 10/100/1000
• 2.5G Ethernet 1
• SIM support Micro SIM, eSIM
• USB 1 × USB Type-A
• Power input 12–28 V
• Maximum power consumption 27 W
• Protection rating IP20

Who it's for

• For home networks
• For office environments
• For 5G internet connectivity
• For backup internet connections
• For RouterOS users

Conclusion

The MikroTik Chateau 5G R17 ax combines 5G connectivity, Wi-Fi 6, and RouterOS v7 in a compact networking solution for modern internet access scenarios. With LTE Category 20, 2.5G Ethernet, and eSIM support, the model is suitable for high-speed mobile networking at home or in office environments.
